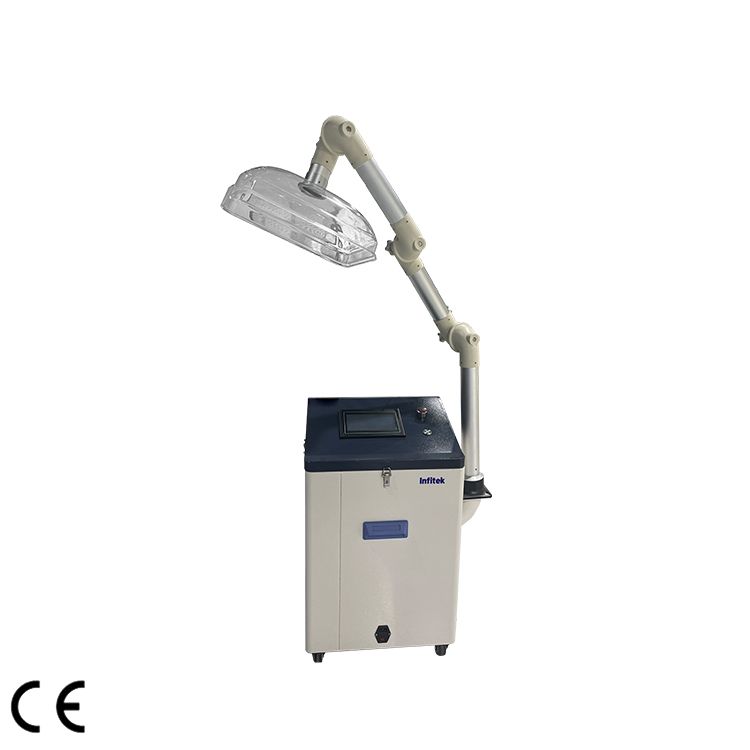

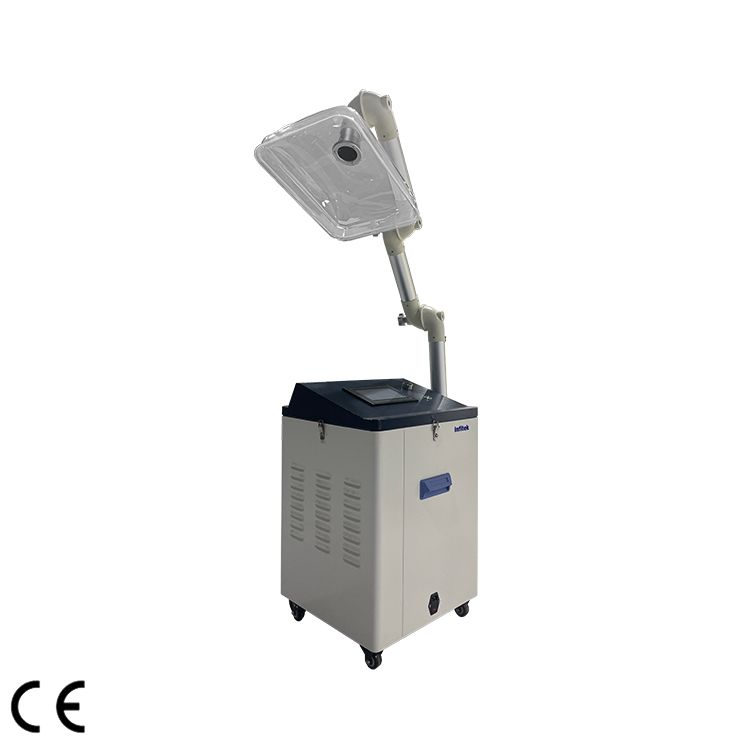

Fume Extraction Hood, FMH-M

Product Overview

For many chemical laboratories, there are more or less trace chemical leakage and poor ventilation, which directly leads to the laboratory odour and VOC concentration is too high, at this time, such as in the indoor volatile sources equipped with a portable fume extractor, will greatly improve the indoor environment, restore clean air in the laboratory, to protect the physical and mental safety of chemical laboratory workers.

Functions

All volatile sources with localized volatility, such as chemical handling, volatilization during instrumentation, soldering etc. Dissolving, mixing, stirring, pipetting, sampling, PH testing, HPLC, GC-MS, LC-MS …… filters have strong adsorption capacity for organic solvents, acids and bases, fragrances, pesticides and so on.

Working Principle

The extractor has its own fan and filter, the fan will be volatile source of wind through the suction hood and pipeline into the box filter device, after filtering the clean air is discharged directly into the room.

Features

1. Metal parts: the main material ≥ 1.2mm galvanized steel, epoxy resin electrostatic spraying, covered with a durable anti-chemical lead-free coating to maintain a high degree of finish and minimize the impact of corrosion and moisture.
2. 5-inch LCD touch screen display: real-time temperature and humidity environment monitoring, fan monitoring, VOC concentration environment monitoring and integrated alarm system.
3. PSC fan imported from U.S.: 24-volt current, stable performance, ultra-quiet, no spark static electricity.
4. High-efficiency filtration system: according to the particle size selection arrangement distribution, follow the ASTM standard, effective for acidic gases and organic gases, strong adsorption capacity, for particle filter, the use of high-efficiency HEPA filters, for particles larger than 0.3um, the filtration efficiency of 99.995%.
5. Interface: anti-electromagnetic interference power cord.
6. Filter optional models: OG type filtration of organic gases, AG type filtration of acid gases, HEPA H14 filtration of dust and particles.
