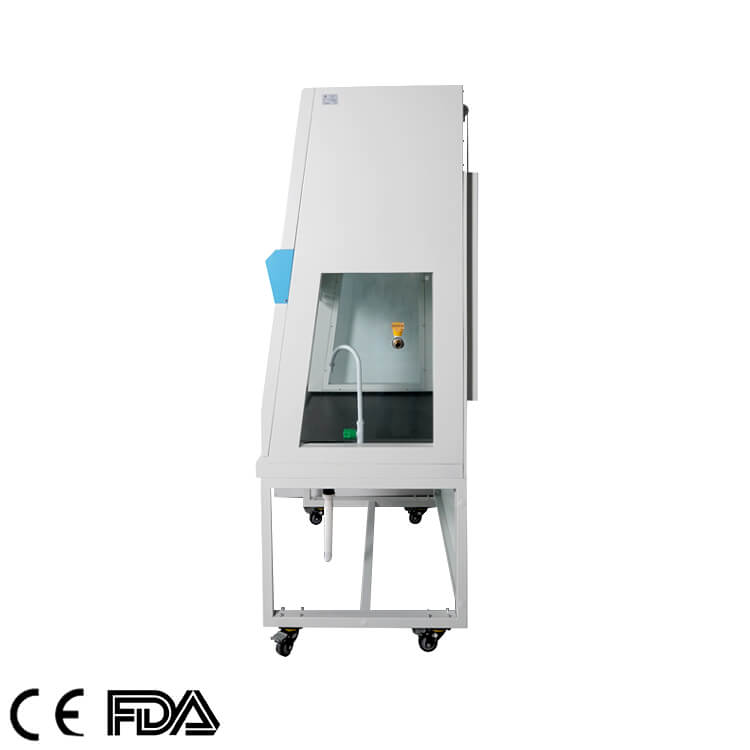

Fume Hood, FMH-DF Series

  • Maximum Opening: 520mm
  • Work Surface Height: 750mm
  • Airflow Velocity: Adjustable, 0.3~0.8 m/s
  • Filter: Active Carbon Filter
  • Control System: Microprocessor controller with LCD display

Share the product


FMH series fume hood is a kind of negative pressure ventilation system for protecting operator and laboratory, utilizes carbon filtration to protect laboratory personnel from toxic chemical fumes, odors, and particles. Known for its plug-and-play feature and mobility, fume hood guarantees a hassle-free installation and no lab work interruption.

Application scenarios

Application for medical institutions, CDC, pharmaceutical factories, blood banks, animal husbandry, food processing plants, Cosmetics manufacturers, as well as various R&D institutions and electronic and electrical manufacturers.


Humanized Features:

  • Ergonomic Control Panel Location, centered and angled down for an easy reach & viewing.
  • Made of solid physicochemical board, resistant to strong acid and alkali
  • The non-direct light source design can effectively relieve the operator’s visual fatigue under the condition of ensuring the illumination
  • Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.

Safety Features:

  • Front sliding sash interlock with fan and UV lamp
  • UV sterilization with UV lamp timing function
  • Front sash and side windows are made of UV-resistant tempered glass
  • The host and sockets have independent capacitors to prevent current overload

Convenience Features:

  • Memory function in case of power-failure.
  • Filter and UV life indicators facilitate a timely replacement plan
  • Two side glass windows installed for easy experiment observation
  • Equipped with temperature sensor to show the real temperature during operation
  • Waterproof socket provide convenience for small instruments to be used in the operating area

Performance Test

Fume Hood, FMH-DF Series performance test


External Dimensions
1000*850*2150 1220*850*2150 1525*850*2150 1830*850*2150
Internal Dimensions
880*730*745 1100*730*745 1405*730*745 1710*730*745
Control System Microprocessor controller with LCD display, graphical and digital display of the operating status of each function.
Maximum Opening 520mm
Work Surface Height 750mm
Airflow Velocity Adjustable, 0.3~0.8 m/s
Air Volume(m³/hr)/(cfm) 657/387 868/511 1085/639 1085/639
Active Carbon Filter Dimensions(W*D*H)(mm) 750*495*30 1055*495*30 1360*495*30 1665*495*30
Quantity 1pc
Sound Emission ≤68dB(A)
Lighting Lamp 6.5W*1 9.6W*1 9.6W*1 9.6W*1
LED type, Intensity ≥900Lx
UV Lamp 20W*1 30W*1 30W*1 30W*1
With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect.
Power Consumption 400W 500W 500W 500W
The power consumption does not include external device connected via power socket
Cabinet Construction Main Body: Electro-galvanized steel with antimicrobial powder coating
Work Table: Solid physicochemical board, resistant to strong acid and alkali
Manual Sliding Sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
Side Windows: 5 mm UV resistant tempered glass
Electricity AC220V ±10%, 50/60Hz,1P
Standard Accessories Base stand*1;
LED lamp*1;
UV lamp*1;
Waterproof socket*2(only 1 for FMH-D3F);
Casters with brakes*4;
Activated carbon filter*1;
Water tap*1;
Gas tap*1;
Water sink(220*95*150mm)*1;
Exhaust duct-10meters*1;
Solid physicochemical countertop*1
Optional Accessories HEPA filter, Wind speed sensor, Foma casters, 304 stainless steel countertop, Base Cabinet
Shipping Weight(kg) 250 280 330 390
Shipping Dimensions
1140*1100*1635 1360*1100*1635 1665*1100*1635 1970*1100*1635
Shipping Volume (m3) 2 2.5 3.1 3.6
