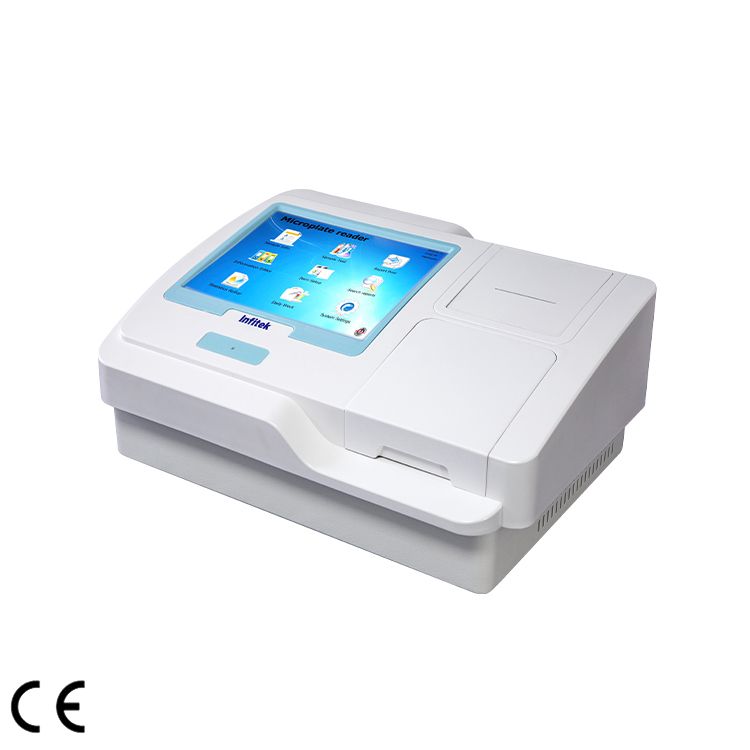

Microplate Reader, automatic, MPR-H200B

  • Microplate types : 96/48 -well plate
  • Wavelength range: 400nm~850nm
  • Touch screen with 10.4”color LED display
  • Standard filters: 405,450,492,630nm & 4 optional
  • Reading range: 0.000~4.000A

Share the product



  1. Touch screen with 10.4”color LED display, resolution 1024*600
  2. Large Intelligent operation interface, easy connect to PC
  3. Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
  4. Comprehensive qualitative and quantitative data-evaluation functions with cut-offs,
  5. curve-fits and transformation formulas
  6. More than 20 different report formats
  7. Auto Lamp adjustment and auto calibration
  8. Support keyboard and mouse with USB interfaces
  9. Stable memory stores up to twenty million test data, 500 test projects
  10. PC software: equipped with professional computer-based enzyme-linked immunosorbent assay software (no additional charge)


Microplate types 96/ 48 -well plate
Photodetector Silicon Photodiode
Light source 8v/50w Controlled tungsten halogen lamp
Wavelength range 400nm~850nm
Standard filters 405,450,492,630nm & 4 optional
Reading range 0.000~4.000A
Resolution 0.001A
Accuracy ±0.008A
Reproducibility ≤0.2%
Stability  ±0.003A
Reading Speed Single Wavelength≤3s ;Double Wavelength≤6s
Shaking Linear Shaking , 3 speeds
Printer Built-in Thermal Printer,optional external printer
Power supply 100~240V, 50~60Hz
Dimensions 460(L)×350(W)×197(H)mm
Net weight 8kg
