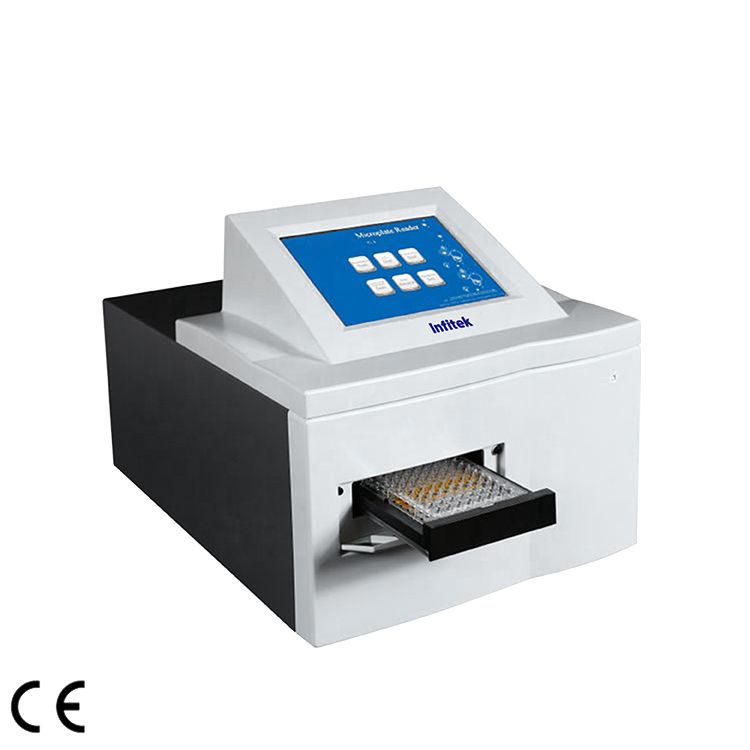

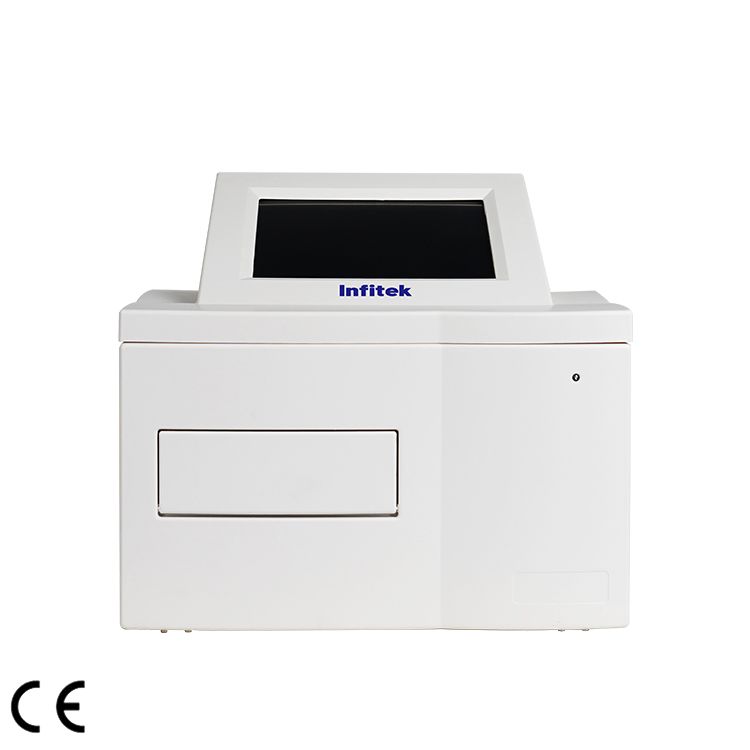

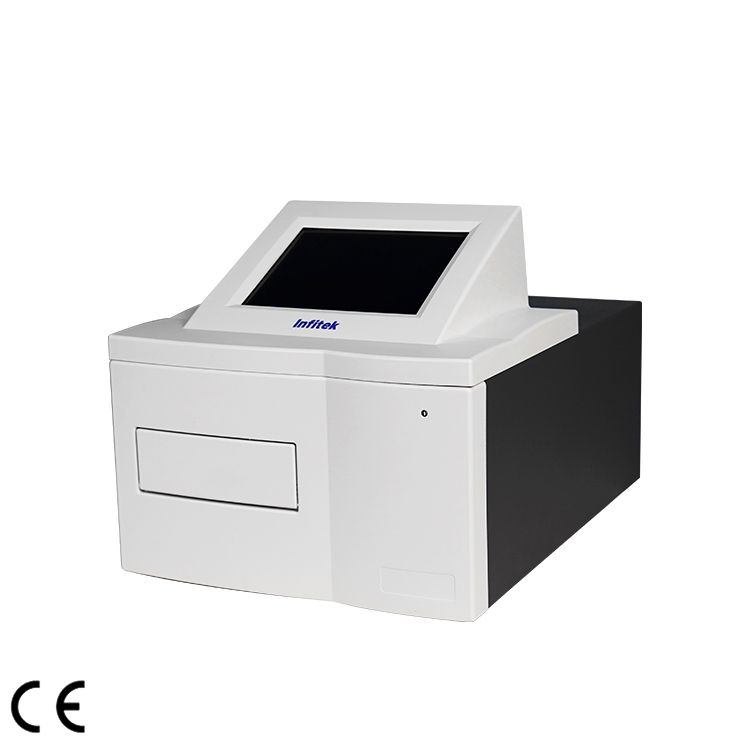

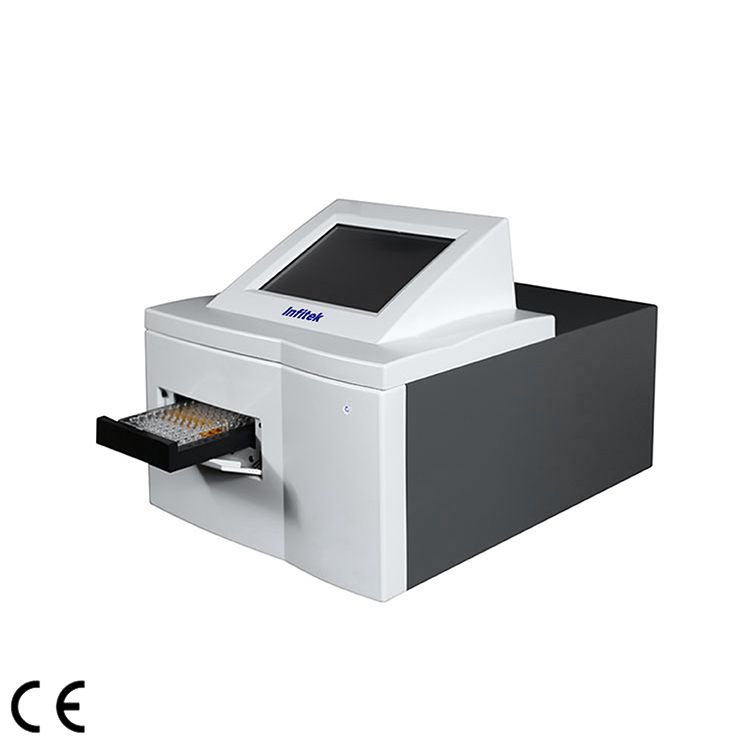

Automatic Microplate Reader, MPR-D111

  • Microplate Types: 96 well plate
  • 8 channel vertical light path system
  • 8 inch color LCD screen
  • Accuracy: ≤±0.01Abs
  • Stability: ≤±0.003Abs
  • Filter: Default configuration 405、450、 492、630nm, Can be installed up to 15 filters.

Share the product


Microplate readers are used to measure chemical, biological or physical reactions, properties and analytes within the wells of microplates.

1.Industrial grade color LCD display, touch screen operation.
2.Eight channel optical fiber measurement system, imported detector.
3.Center positioning function, accurate and reliable.
4.Three kinds of linear vibration plate function.
5.Unique open Cut-Off judgment formula,Think what you think.
6.End point method, two point method, dynamics, single 1 dual wavelength test mode.
7.Configure the inhibition rate measurement module, dedicated to the field of food safety.
8. Ultra-wide voltage input design, global voltage application
9. Used independently or in conjunction with a computer, automatically adapting
10. Optional temperature-controlled enzyme label analyzer




Model MPR-D111
Lamp DC12V 22W Tungsten halogen lamp with power management
Optical path 8 channel vertical light path system
Wavelength range 400- 900nm
Filter Default configuration 405、450、 492、630nm, Can be installed up to 15 filters for connected computer. (10 filters for single machine)
Reading range 0- 4.000Abs
Linear range 0.000-3.000Abs
Resolution 0.001Abs (display, print), internal calculation 0.0001Abs
Accuracy ≤±0.01Abs
Stability ≤±0.003Abs
Repeatability CV≤0.2%
Layout Visual layout, support standard 96-well free layout
Vibration plate Three kinds of linear vibration plate function ,Adjustable 0- 255 seconds
Display 8 inch color LCD screen, display the entire board information,touch screen operation.
Sampling: Automatic opening/closing of the sampling compartment door, no need to open the cover manually
Software Professional software, Can store 100 groups program,100000 sample results, More than10 kinds of curve fitting equation.
Power input Wide voltage design AC100-240V 50-60Hz
Weight 11Kg
Size 433mm(L)* 320mm(W)*308mm(H)
Temperature control function (optional) (room temperature +4℃~50℃) ±0.5℃




Accessories & Package

Accessories & Package

microplate reader package
