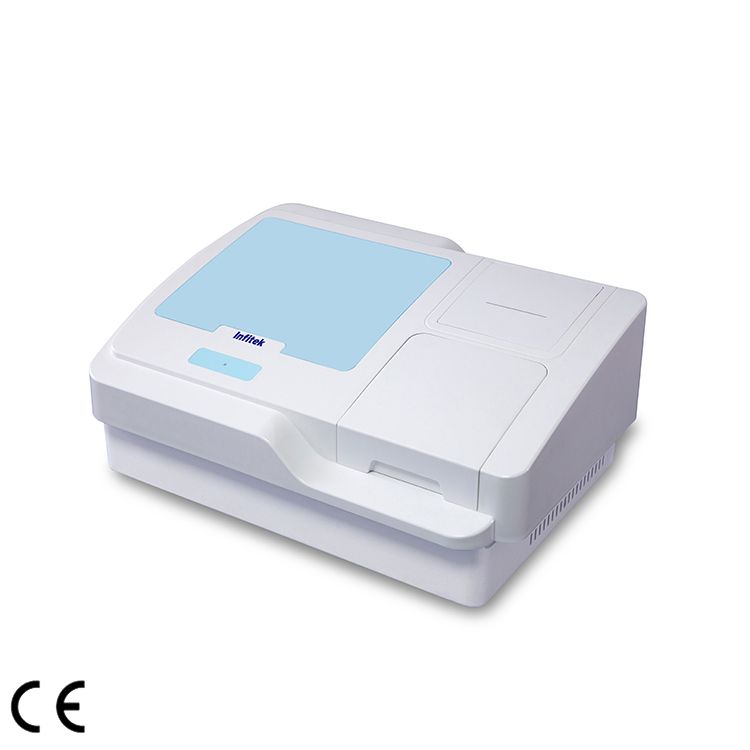

Elisa Reader, MPR-H200BN

  • Microplate types: 96/48 -well plate
  • Wavelength range: 400nm~800nm
  • Single or dual wavelength measurements
  • Standard filters: 405,450,492,630nm & 4 optional

Share the product



  1. Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
  2. Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately
  3. Perfoming 12 different tests in just one plate
  4. Multi-forms in result output including patient comprehensive report
  5. With USB interface, easily connect to PC , comprehensive functions with Found Workstation PC software
  6.  Printer :Built-in Thermal Printer;
  7. PC software: equipped with professional computer-based enzyme-linked immunosorbent assay software (no additional charge)


Microplate types 96/48 -well plate
Photodetector Silicon Photodiode
Light source 8v/50w Controlled tungsten halogen lamp
Wavelength range 400nm~800nm
Standard filters 405,450,492,630nm & 4 optional
Reading range 0.000~4.000A
Accuracy ±0.008A
Reproducibility ≤0.2%
Stability  ±0.003A
Reading Speed Single Wavelength≤3s ;Double Wavelength≤6s
Shaking Linear Shaking , 3 speeds
Input DIATEK ELISA Reader software
Interface USB
Power supply 100~240V, 50~60Hz
Dimensions 460(L)×350(W)×197(H)mm
Net weight 7kg
