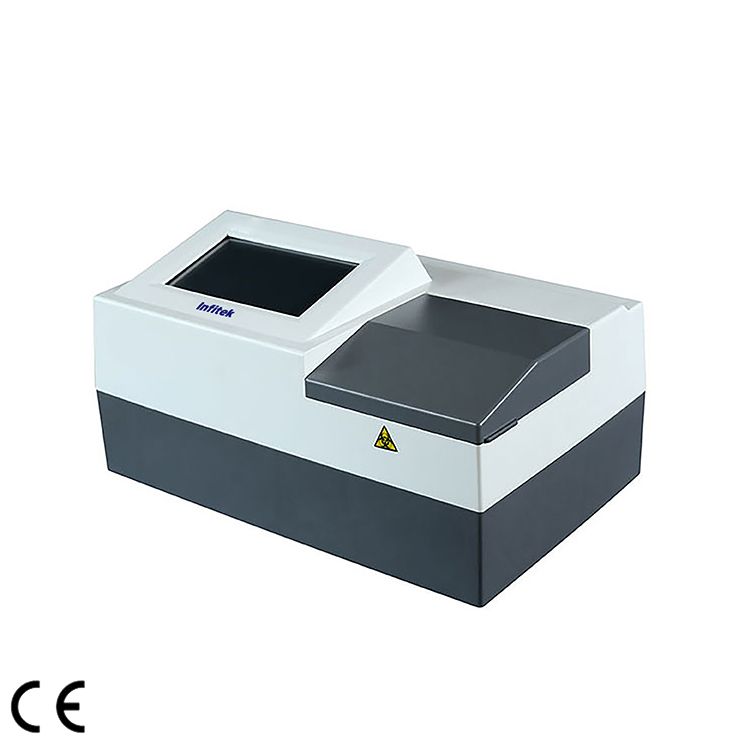

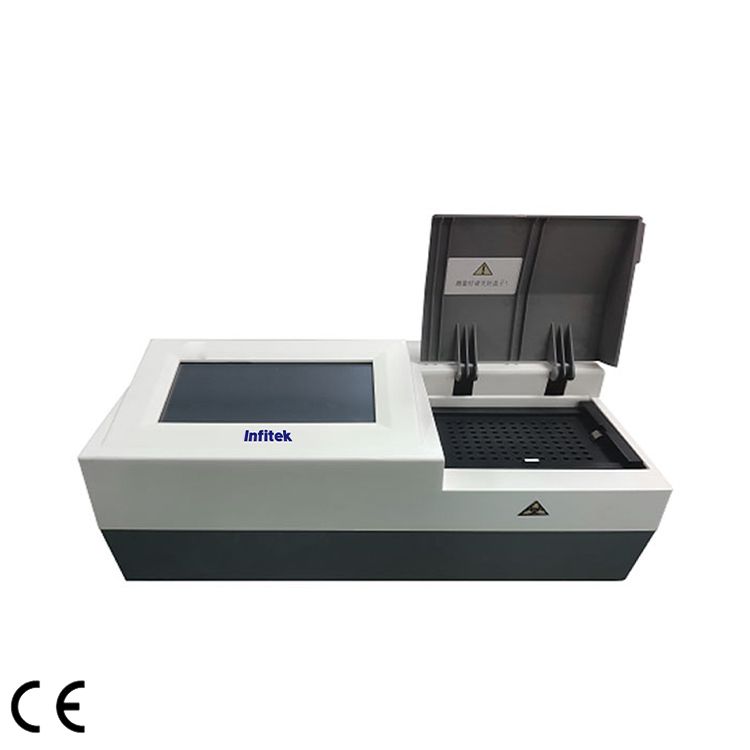

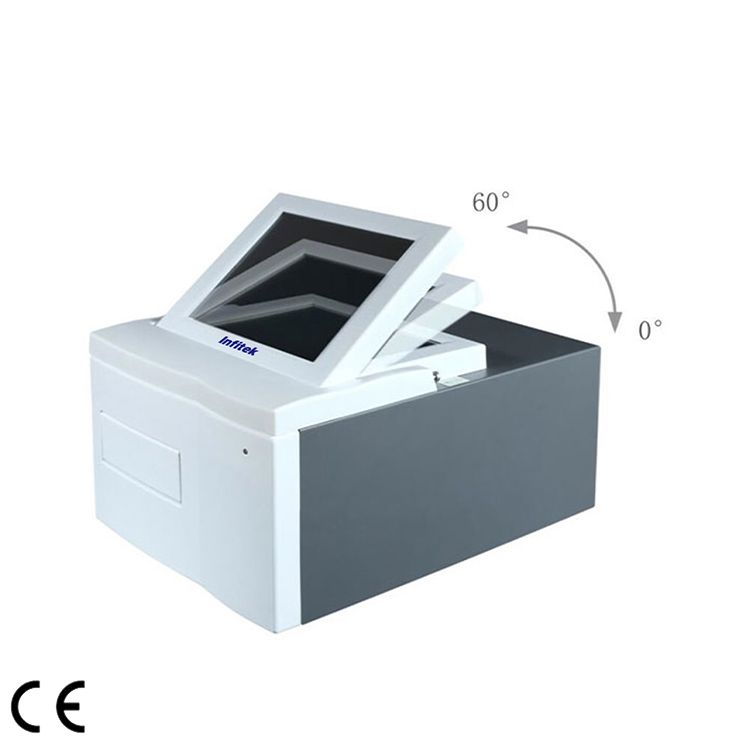

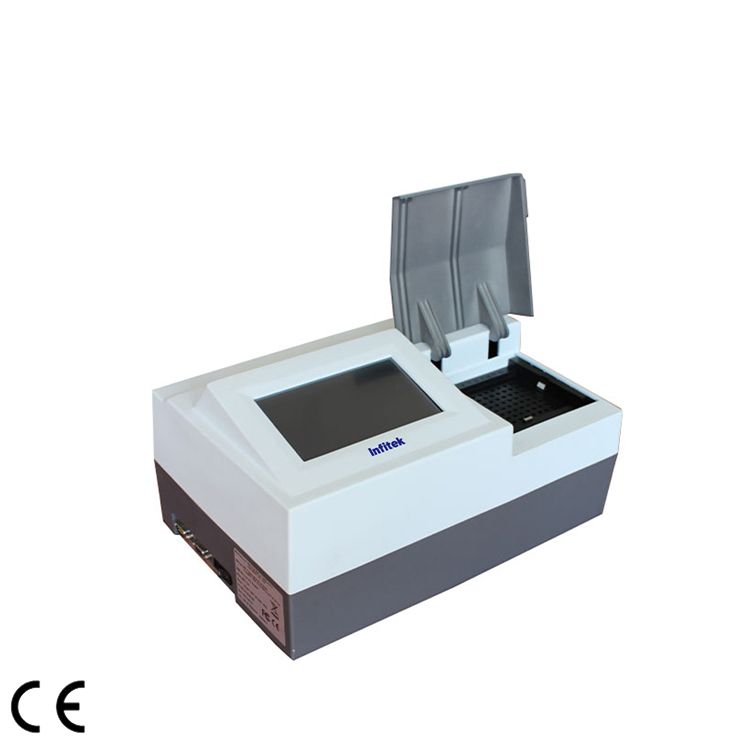

Elisa Reader, automatic, MPR-D110

  • Microplate Types: 96 well plate
  • Center positioning function
  •  7 inch color LCD screen
  • Default configuration 405,450, 492,630nm, Can be installed up to 15 filters.
  • 8 channel vertical light path system
  • Accuracy: ≤±0.01Abs

Share the product


1.Industrial grade color LCD display, touch screen operation.

2.Eight channel optical fiber measurement system, imported detector.

3.Center positioning function, accurate and reliable.

4.Three kinds of linear vibration plate function.

5.Unique open Cut-Off judgment formula,Think what you think.

6.End point method, two point method, dynamics, single 1 dual wavelength test mode.

7.Configure the inhibition rate measurement module, dedicated to the field of food safety.


Lamp DC12V 22W  Tungsten halogen lamp
Optical path 8 channel vertical light path system
Wavelength range 400-900nm
Filter Default configuration 405、450、492、630nm,Can be installed up to 15 filters
Reading range 0-4000Abs
Resolution  0001Abs
Accuracy ≤±001Abs
Stability ≤±0003Abs
Repeatability ≤03%
Vibration plate Three kinds of linear vibration plate function, Adjustable 0-255 seconds
Display 7 inch color LCD screen, display the entire board information, touch screen operation
Software Professional software, Can store500 groups  program, 100000 sample results,More than10 kinds of curve fitting equation
Printer optional external printer
PC software Equipped with professional computer-based enzyme-linked immunosorbent assay software (no additional charge)
Power input Use the power adapter design  AC100-240V  50-60Hz
Weight 5Kg
Size 400mm(L)* 260mm(W)* 200mm(H)
Package Dimension (W*D*H)(mm 600*440*400
GW(kg 142KG
