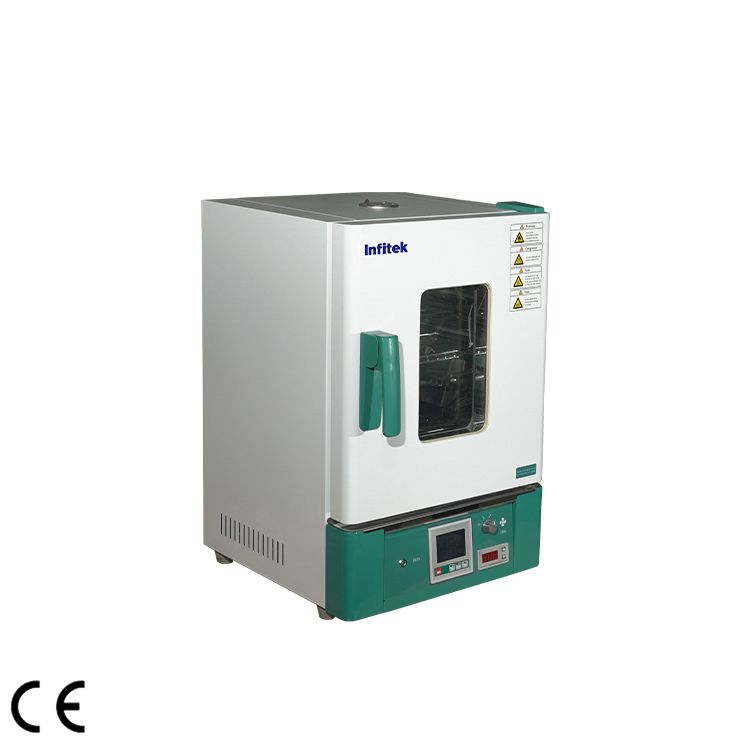

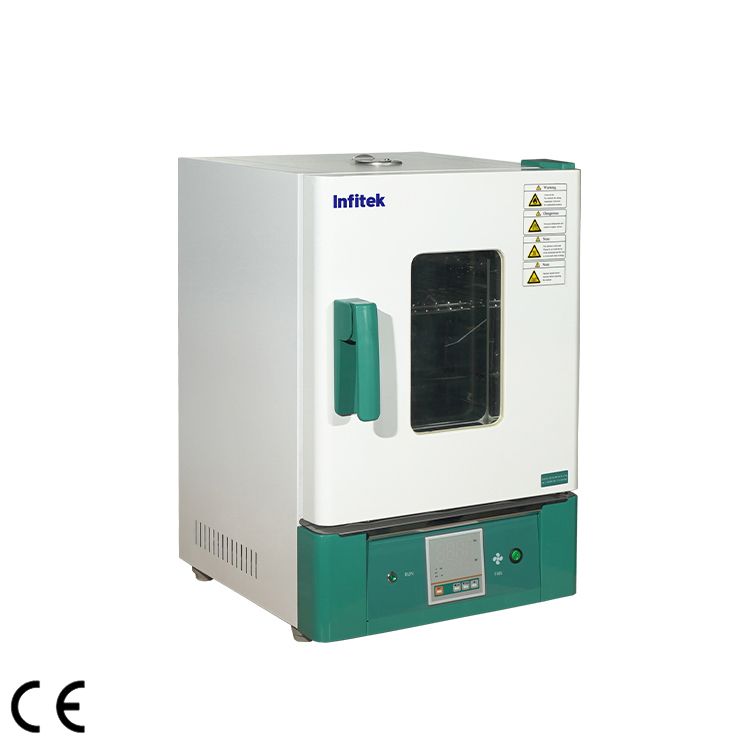

Forced Air Drying Oven, DOF-85, DOF-85E

  1. Cycle Mode: Forced convection
  2. Temp. Range: RT+10-300℃
  3. Two temperature section PID intelligent

Share the product


1. Hot air is convected naturally and cyclically in the work room.

2. Intelligent Microcomputer PID temperature controller with digital display.

3. Anti-hot handle.

Optional Accessories:

DOF-85E: Shelf

DOF-85: Shelf, RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage.


Model DOF-85E DOF-85
Cycle Mode Forced air convection
Volume 85L
Temp. Range RT+10~300℃
Temp. Resolution 0.1℃
Temp. Uniformity ±2.5%
Inner Chamber Material Mirror Stainless Steel
Temp. Display Measuring temperature: display on the four digital tubes, upper row, setting temperature: display on the lower row; Measuring temperature display on upper LCD screen, setting temperature display on the lower row;
Structure External material: cold rolling steel electrostatic spraying;

Insulation: High quality rock wool board (with CE);

Heater: Stainelss steel heater;

Exhaust hole: φ28mm top (with function of test hole);

Controller Temp. sensor: PT100;

Temp. set: soft touch button;

Temp. control: Intelligent PID for Two temperature section;

Operation function: fixed temperature operation, timing function, auto stop;

Additional function Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory; High precision digital independent temperature limiter, 3-grade adjustable speed fan (230 and 625 without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory;
Timing Setting 0~9999mins(with timing wait function)
Alarm Over-temperature Alarm, audible and visual alarm
Shelves 2pcs/adjustable, max. load 15kg/shelf, shelf space 35mm
Consumption 600W
Power Supply AC110/220V±10%, 50/60Hz
Internal Size(W*D*H) 450*420*450mm
External Size(W*D*H) 590*610*830mm
Package Size(W*D*H) 690*695*985mm
Net/Gross Weight 50/56kg
