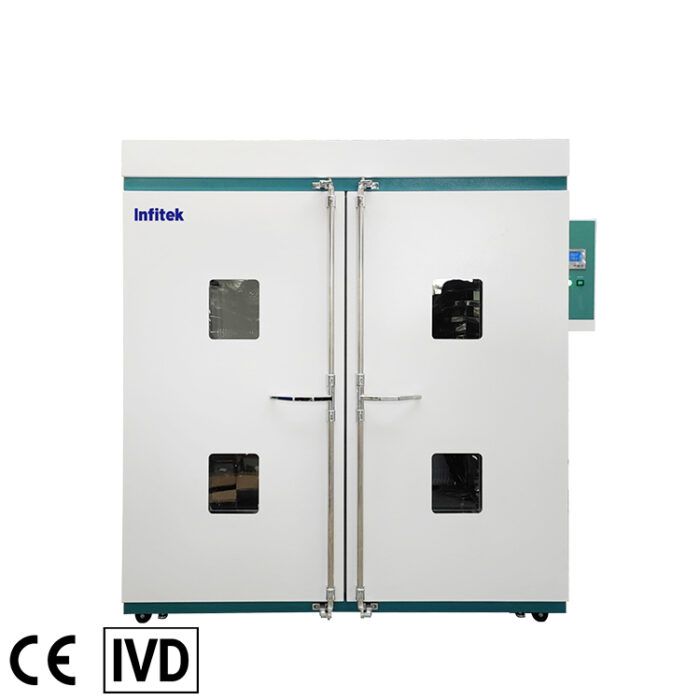

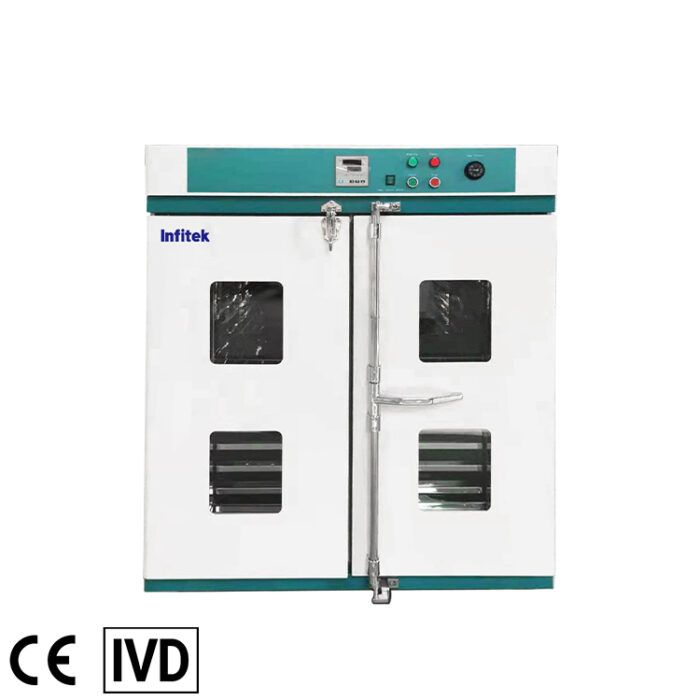

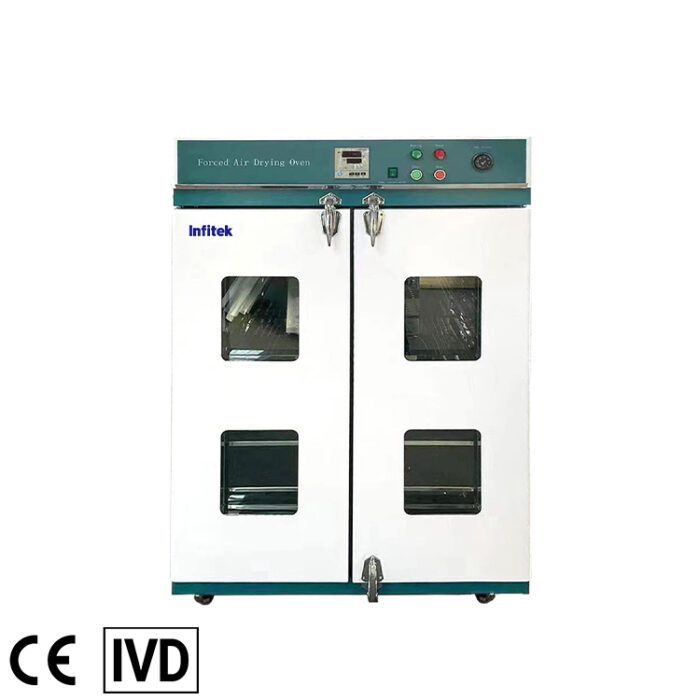

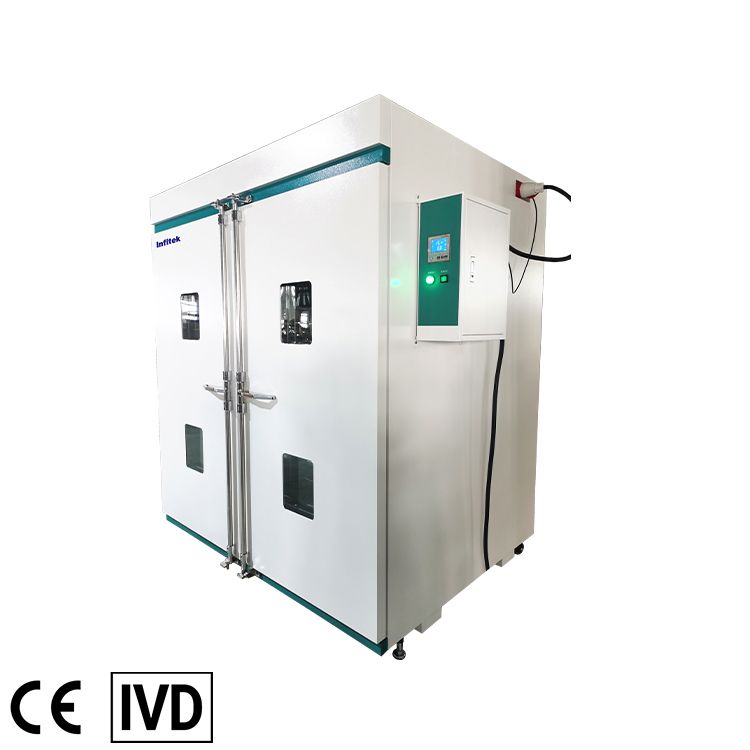

Big Forced Air Drying Oven, DOF 640-3070 Series

  1. Volume: 640L, 1000L, 1300L, 1870L, 3070L
  2. Temp. Range: RT+10-250℃, RT+10~300℃
  3. Temp. Resolution Ratio: 0.1℃
  4. Exhaust hole: On top or side
  5. Temp. Control: PID intelligent control or Multi – segment

Share the product

Description

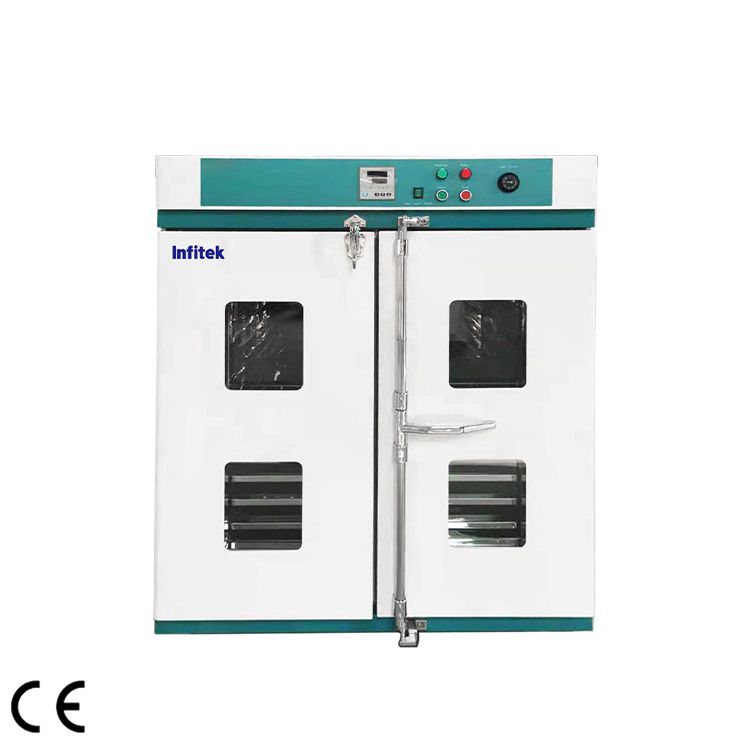

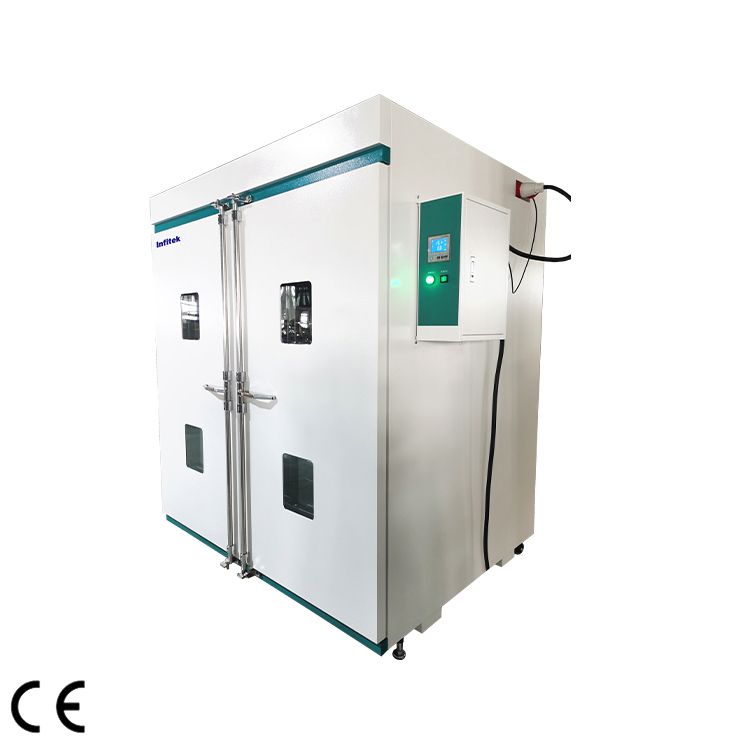

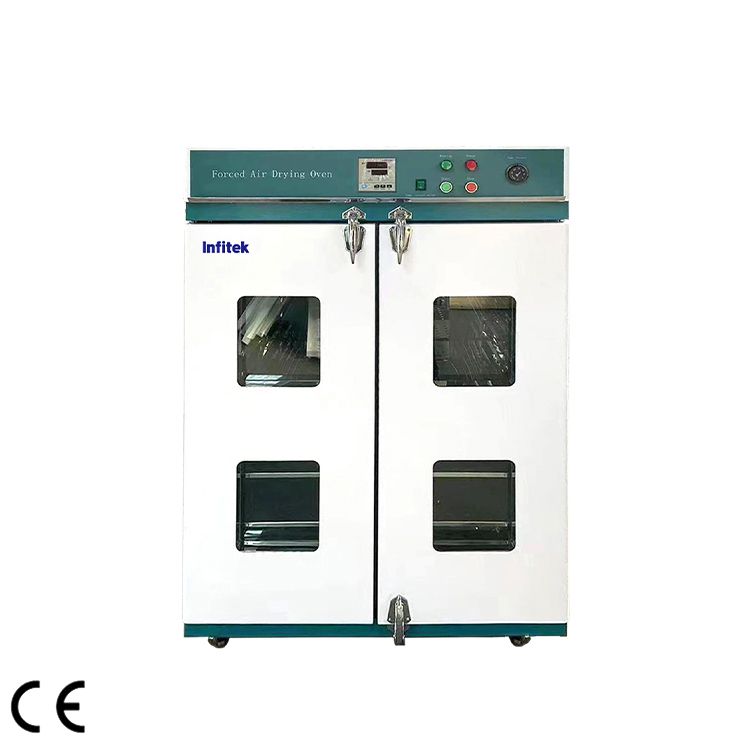

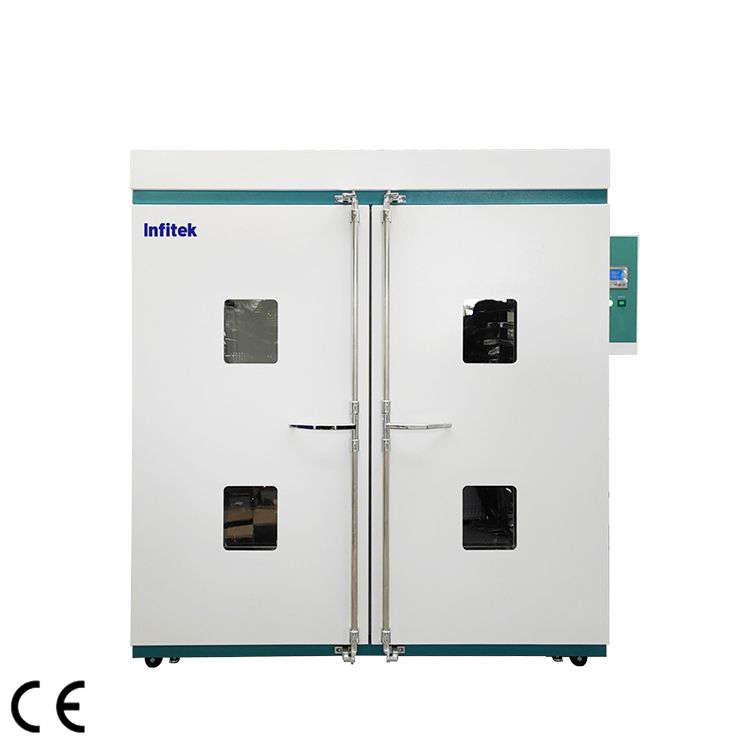

Big Forced Air Drying Oven, DOF 640-3070 Series2 Big Forced Air Drying Oven, DOF 640-3070 Series3 Big Forced Air Drying Oven, DOF 640-3070 Series4
DOF-640E/DOF-640 DOF-1000E/DOF-1000 DOF-1300E DOF-1300 DOF-1870E DOF-1870 DOF-3070E DOF-3070


Product Description:

1. PID or program temperature control controller, with an over-temperature alarm system.
2. Double doors ensure that use is convenient.
3. Forced Air System, with Low-noise fan, Centrifugal cycle method, and high-temperature uniformity.

Specifications

Model DOF-640E

/DOF-640

DOF-1000E

/DOF-1000

DOF-1300E

/DOF-1300

DOF-1870E

/DOF-1870

DOF-3070E

/DOF-3070

Cycle Mode Forced air convection
Volume 640L 1000L 1300L 1870L 3070L
Temp. Range RT+10~250℃ RT+10~300℃
Temp. Resolution 0.1℃
Temp. Fluctuation ±1℃
Temp. Uniformity ±3%
Inner Chamber Material DOF-640/1000/1300/1870/3070E: Iron inner chamber ;

DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ;

Structure External material: Galvanized sheet electrostatic spraying;

Insulation: High quality rock wool board (with CE);

Heater: Stainless steel heating tube ;

Exhaust hole: side or top (with function of test hole);

Controller Temp. sensor: PT100;

Temp. set: soft touch button;

Temp. control: Intelligent PID controller;

Temp. display: LED display;

Operation function: fixed temperature operation, timing function, auto stop;

Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory;

Timing Setting 0~9999mins(with timing wait function)
Safety Device One key to overheat power off
Shelves 2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm
Consumption 5.4kW 6.6kW 9kW 12kW 18kW
Power Supply 380V, 50Hz
Internal Size(W*D*H) 800*800*1000mm 1000*1000*1000mm 1000*1000*1300mm 1200*1200*1300mm 1600*1200*1600mm
External Size(W*D*H) 940*1000*1400mm 1040*1200*1400mm 1230*1200*1670mm 1330*1400*1670mm 1750*1400*2070mm
Package Size(W*D*H) 1040*1110*1520mm 1260*1290*1520mm 1350*1300*1890mm 1550*1500*1890mm 1950*1500*2290mm
Net/Gross Weight 200kg 260kg 350kg 480kg 800kg
