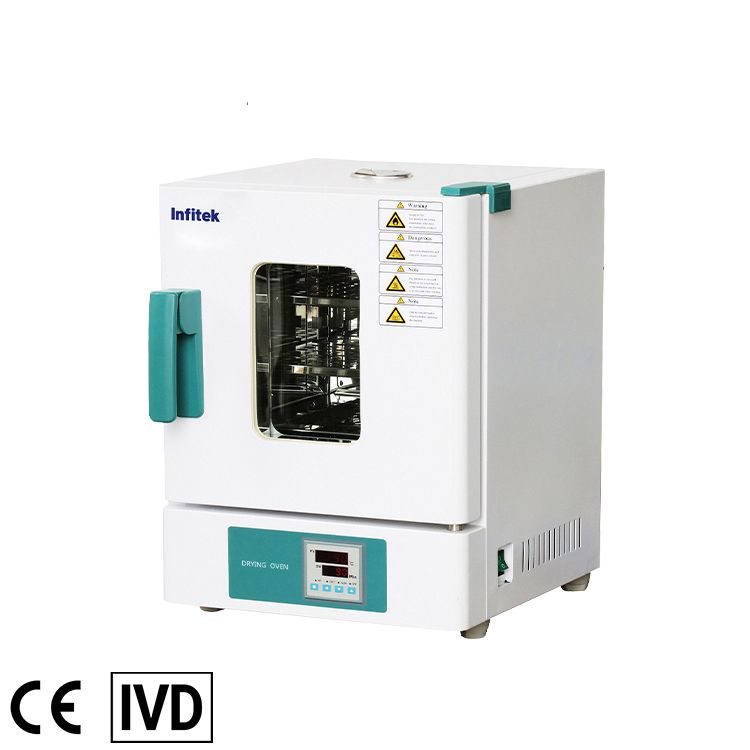

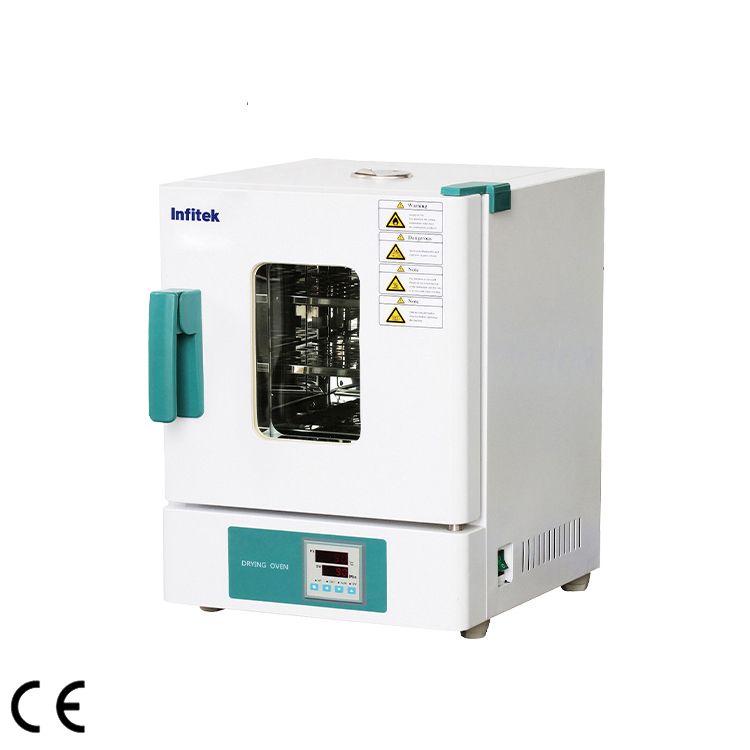

Natural Convection Drying Oven, Horizontal Type, DON-18E, DON-18

  1. Volume: 18L
  2. Temp. Range: RT+10-300℃
  3. Temp. Resolution Ratio: 0.1℃

Share the product


Drying Oven

1. Hot air is convected naturally and cyclically in the work room.

2. Intelligent Microcomputer PID temperature controller with digital display.

3. Anti-hot handle.

Optional Accessories:

1. Shelf

2. Programmable controller


Model DON-18E DON-18
Cycle Mode Natural convection
Volume 18L
Temp. Range RT+10~300℃
Temp. Resolution 0.1℃
Temp. Uniformity ±3.5%
Inner Chamber Material High strength galvanized sheet Mirror Stainless Steel
Structure External material: cold rolling steel electrostatic spraying;

Insulation: High quality rock wool board (with CE);

Heater: Nickel chromium alloy heating wire;

Exhaust hole: φ28mm top (with function of test hole);

Controller Temp. sensor: PT100;

Temp. set: soft touch button;

Temp. control: Intelligent PID for Two temperature section;

Setting temperature: display on the lower row;

Measuring temperature: display on the four digital tubes upper row;

Operation function: fixed temperature operation, timing function, auto stop;

Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory;

Timing Setting 0~9999mins(with timing wait function)
Alarm Over-temperature Alarm, audible and visual alarm
Shelves 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm
Consumption 600W
Power Supply AC110/220V±10%, 50/60Hz
Internal Size(W*D*H) 260*260*260mm
External Size(W*D*H) 380*455*568mm
Package Size(W*D*H) 500*530*657mm
Net/Gross Weight 27/35kg
