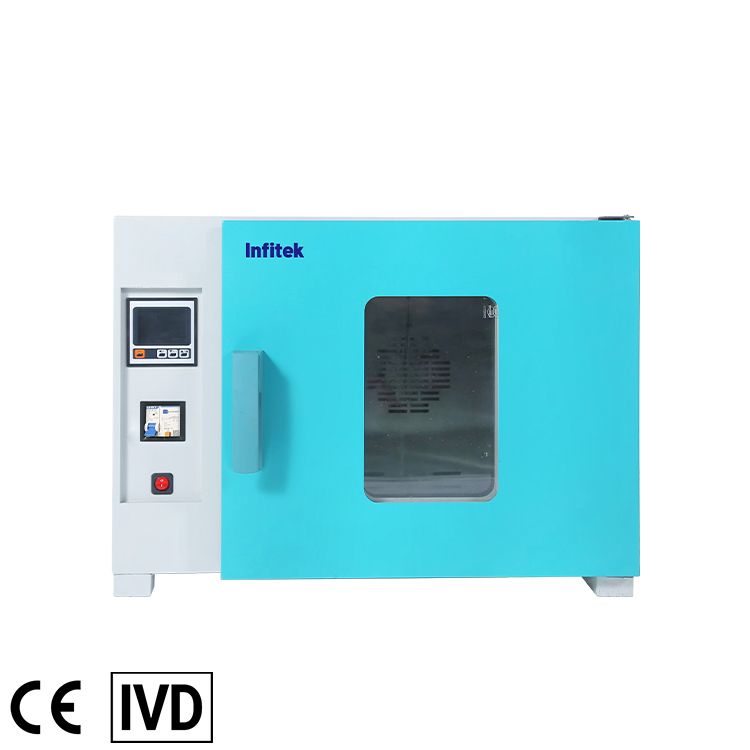

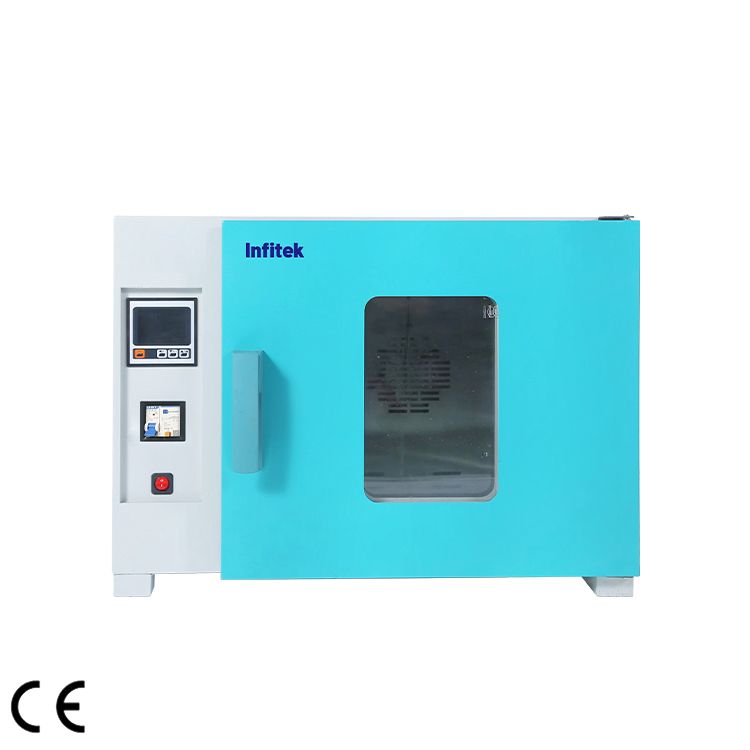

Forced Air Drying Oven, DOF-BA Series

  • Capacity: 30L, 51L, 138L, 188L
  • Temperature range: RT.+10~250℃
  • Test hole: Optional φ25, 50, 80, 100mm
  • Safety device: Leakage protector/Over-temperature alarm

Share the product

Description

Designed and used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories, R&D institutions, etc..

Features

Energy-saving

  • The sealing ring of the incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
  • Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.

Intelligent LCD control

  • Large-screen LCD display, real-time parameter display, simple and convenient operation.
  • Menu-type operation interface, simple and convenient operation, can quickly set temperature and time parameters.
  • Running function: fixed value running, timing running, the screen displays “END” when the running time is completed, accompanied by a buzzer reminder.

Internal circulation system

  • Adoptshigh-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
  • The circulation system adopts the back suction and the air circulation on both sides
  • The shelfis laser hollowed out with round holes for better ventilation and better temperature uniformity.

Dedicated sheet metal processing

  • The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
  • The inner tank is made of high-quality brushed stainless steel, with strong corrosion resistance.
  • Built in observation window to make the objects in the chamber clear at a glance.
  • The anti-scalding design of the door handle makes it easy to open and close the door.

Safety

  • Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
  • The insulation material is made of high-quality aluminum silicate silk cotton, and the insulation layer of the box is thickened.
  • With limited temperature control sound and light alarm system.
  • Self-diagnosis function: display fault information, which is convenient for judging the fault point.

Specifications

Model DOF-B20A DOF-B50A DOF-B100A DOF-B200A
Capacity(L) 30 51 138 188
Circulation Mode Forced convection
Dimension(W*D*H) Internal (mm) 340*320*320 420*350*350 550*450*560 600*550*570
External (mm) 630*570*500 710*520*520 845*700*730 890*730*780
Temperature Range (℃) RT+10~250
Fluctuation (℃) ±0.5
Resolution (℃) 0.1
Uniformity (℃) ±2.5%
Sensor PT100
Controller PID
Display High efinition LCD
Timer 1~9999min
Material Internal High-quality brushed stainless steel
External Electro-galvanized steel with antimicrobial powder coating
Shelves(Standard / Max ) 2
Test Hole (Optional) Φ25,50,80mm
Safety Device Leakage protector ,over temperaure visible& audible alarm
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 500 750 1500 2000
N.W./G.W. (kg) 27 / 30 42 / 55 70 / 77 86 / 97
Package Dimension (W*D*H)(mm) 760*670*580 840*710*720 950*800*930 1030*890*990
Optional Digital independent temperature limiter ,multi-segment programable control (Optional USB,RS485/232 and printer),spare shelf
