- Temperature range: RT+10-250℃(A series); RT+10-300 ℃(B series)
- Test hole：Optional φ25,50,80mm
- Safety device: Leakage protector/Over- temperature alarm

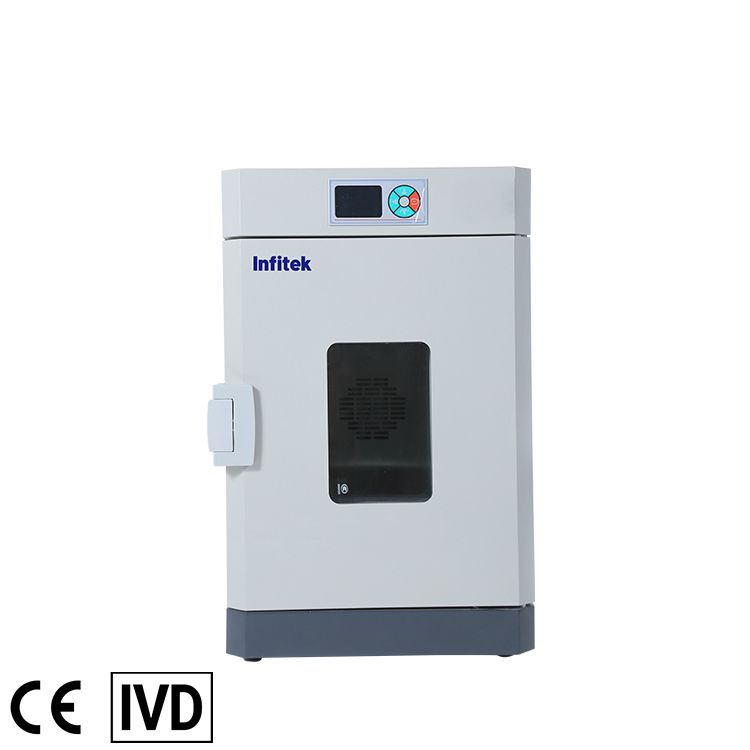

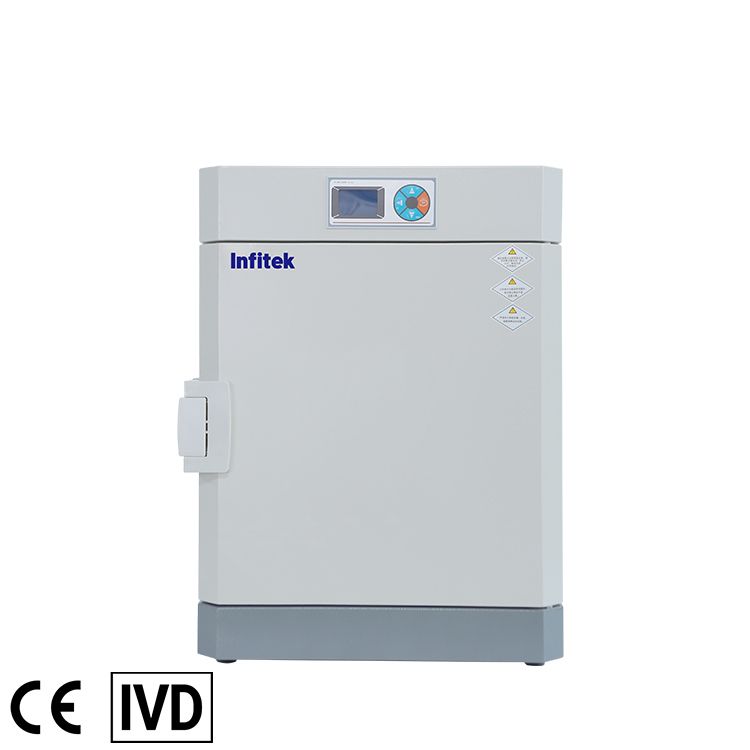

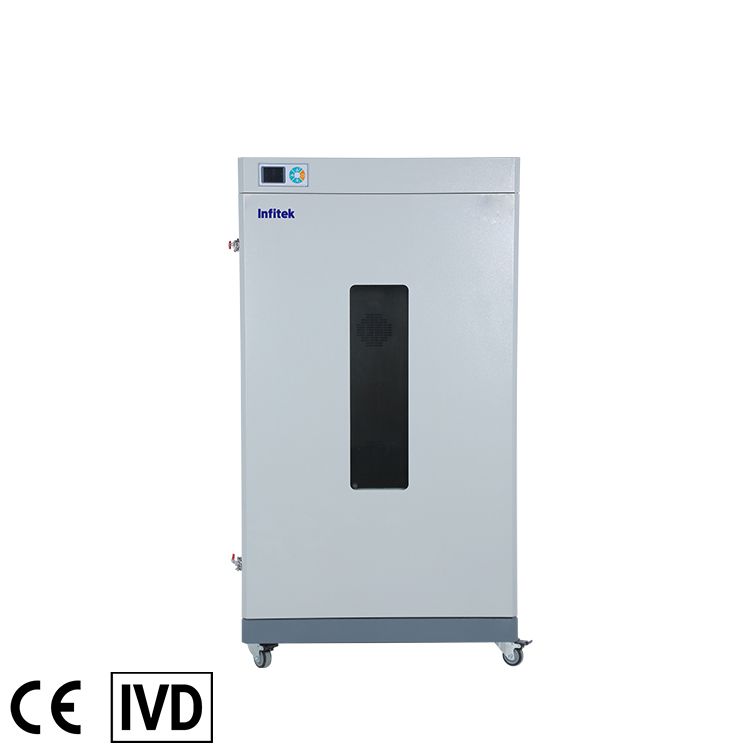

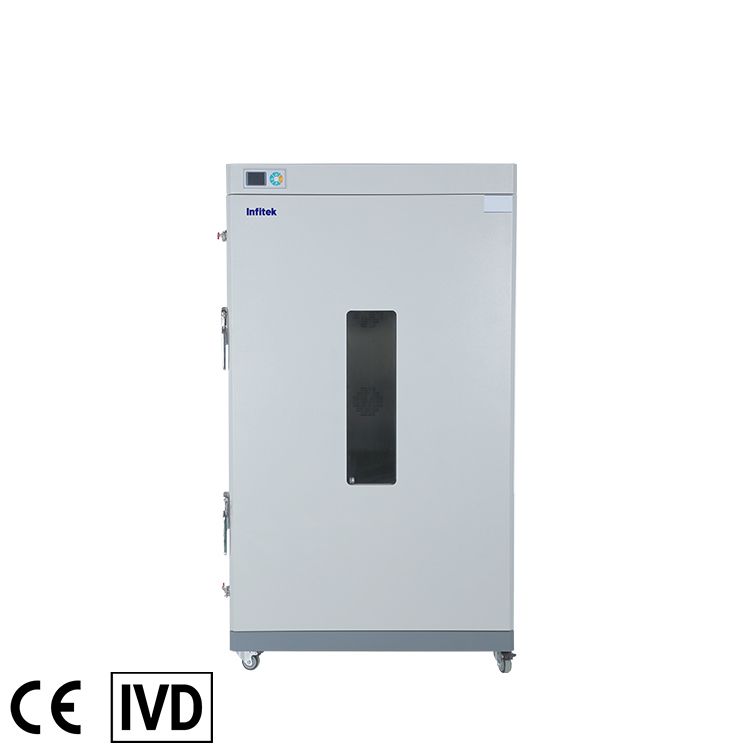

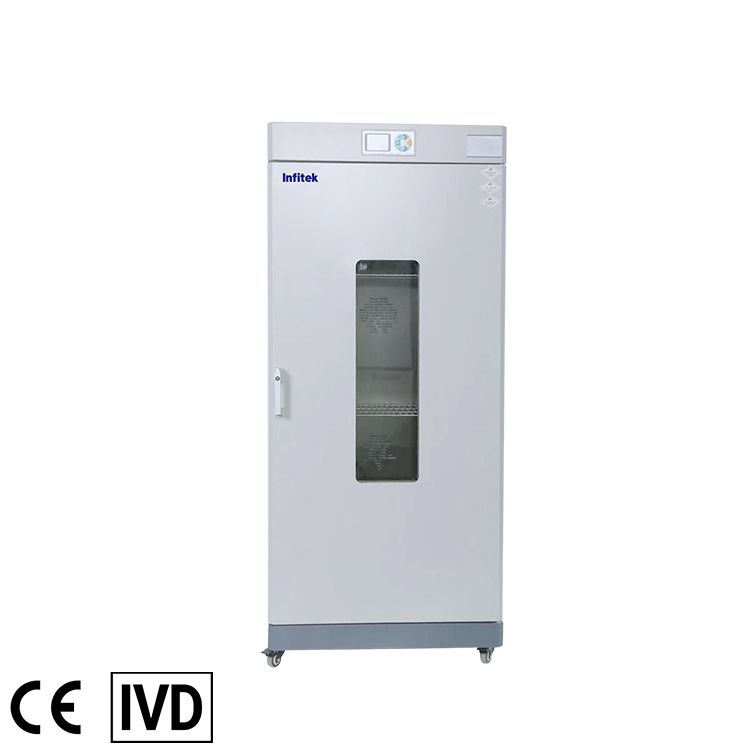

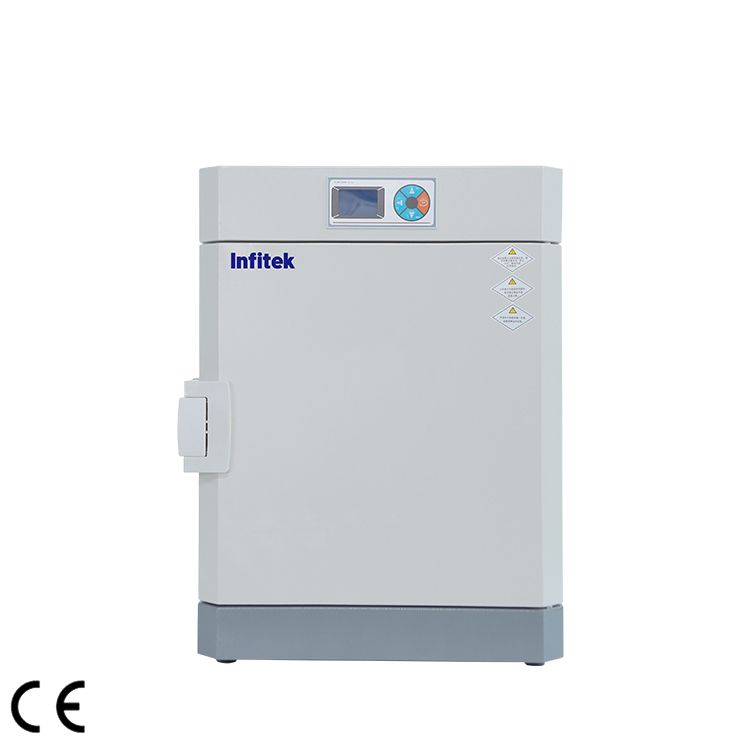

Forced Air Drying Oven, DOF-V30-V240 AB Series
Description
It is widely used in chemical industry, electronic communication, plastics, cables, electroplating, hardware, automobile, optoelectronics, rubber products, molds, spraying, printing, medical treatment, aerospace and universities and other industries.
Features
Energy saving
The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
High efficiency and energy saving compressor, stable temperature control and low power consumption.
Intelligent LCD control
Large-screen LCD display, real-time display of parameters, self-locking function of screen, simple and convenient operation.
Menu-type operation interface, simple and convenient operation, can quickly set temperature and time parameters.
Running function: fixed value running, timing running; The screen will display “END” with a beeping reminder after the running time is completed.
Internal circulation system
Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
The circulation system adopts the back suction and the bottom vertical air supply mode.
The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.

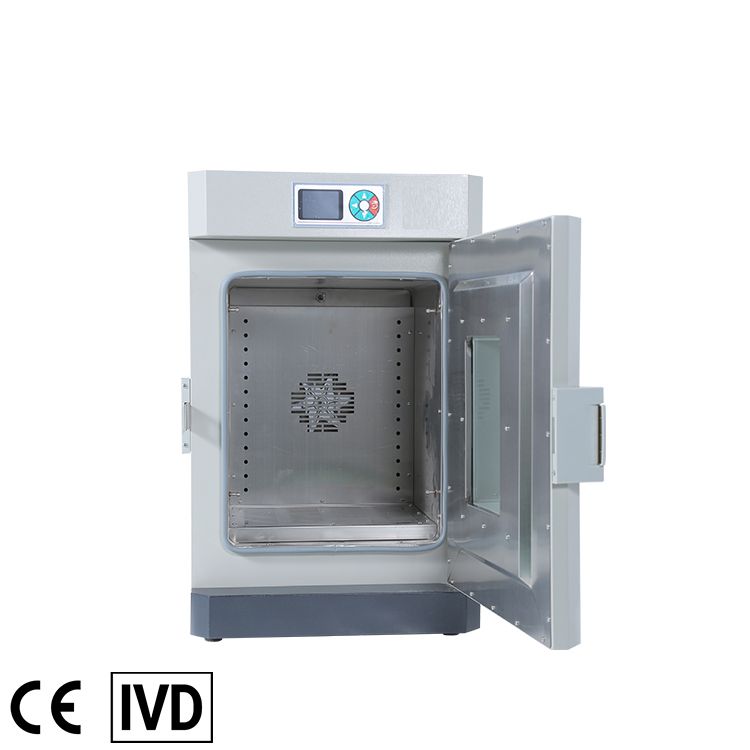

Dedicated sheet metal processing
The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
The inner tank is made of high-quality brushed stainless steel, with strong corrosion resistance.
The anti-scalding design of the door handle makes it easy to open and close the door.
Safety
Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
With limited temperature control sound and light alarm system.
Self-diagnosis function: display fault information, which is convenient for judging the fault point.
| Model | DOF-V30A DOF-V30B |
DOF-V70A DOF-V70B |
DOF-V140A DOF-V140B |
DOF-V240A DOF-V240B |
DOF-V420A DOF-V420B |
DOF-V600A DOF-V600B |
DOF-V900A DOF-V900B |
|
| Capacity(L) | 30 | 70 | 135 | 220 | 420 | 600 | 900 | |
| Circulation Mode | Forced convection | |||||||
| Dimension(W*D*H) | Internal (mm) | 340*325*290 | 400*360*500 | 500*450*600 | 550*500*800 | 600*550*1300 | 800*600*1300 | 1000*600*1600 |
| External (mm) | 490*520*690 | 540*550*870 | 640*680*970 | 690*700*1140 | 750*730*1700 | 950*780*1720 | 1140*800*2150 | |
| Temperature | Range (℃) | A: RT+10~250 B: RT+10~300 | ||||||
| Fluctuation (℃) | ±0.5 | |||||||
| Resolution (℃) | ±0.1 | |||||||
| Uniformity (℃) | ±2.5% | |||||||
| Sensor | PT100 | |||||||
| Controller | PID | |||||||
| Display | LCD | |||||||
| Timer | 1~9999min | |||||||
| Material | Internal | Stainless steel | ||||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||||
| Shelves(Standard) | 2 | 2 | 2 | 2 | 3 | 4 | 4 | |
| Test Hole (Optional) | Φ25,50,80mm | |||||||
| Safety Device | Leakage protector ,over temperaure visible& audible alarm | |||||||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | （DOF-V420A）AC 220/380V, 50/60Hz； (Other models ）AC 380V, 50/60Hz | |||||
| Consumption (W) | 550/600 | 1050/1250 | 1500/1700 | 2100/2500 | 4000/4500 | 4500/5000 | 6000/6500 | |
| N.W./G.W. (kg) | 40 / 46 | 55 / 60 | 70 / 90 | 85/115 | 120/160 | 145 / 210 | 195 / 285 | |
| Package Dimension(W*D*H) (mm) | 650*620*820 | 700*700*1070 | 720*880*1070 | 870*860*1320 870*850*1300 | 950*910*1910 | 1080*950*1940 | 1250*930*2270 |
| Optional | Spare shelf, multi-segment programable control (USB data storage, RS485 / 232 port and build-in printer), digital independent temperature limiter. |
||||||
