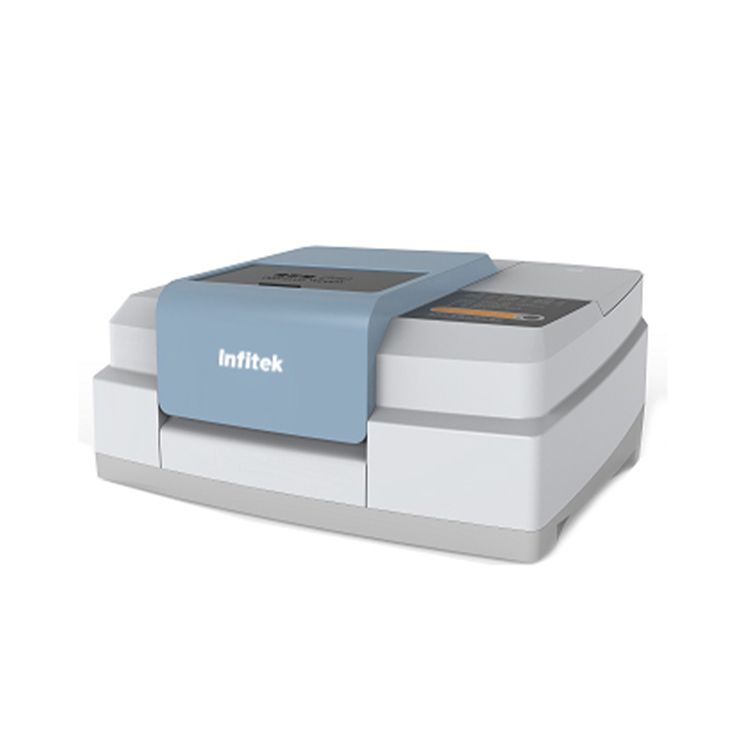

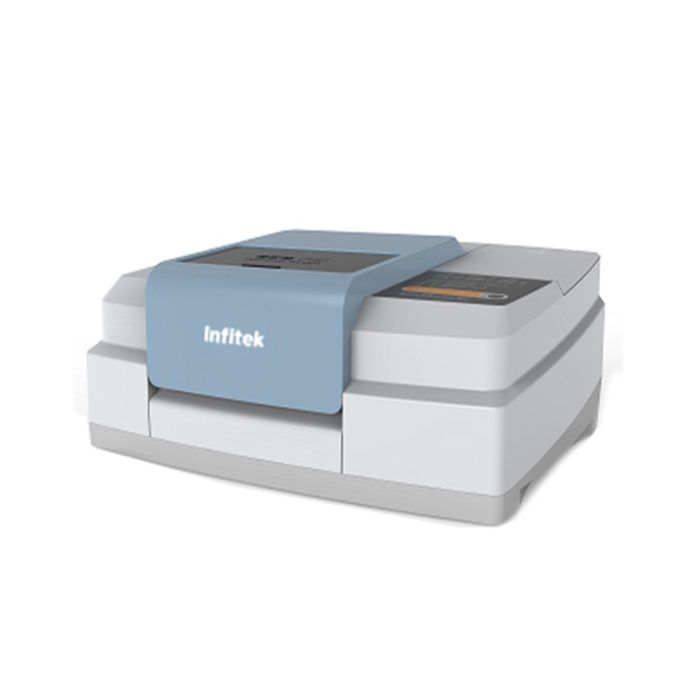

Fourier Transform Infrared Spectrometer/ FTIR Spectrometer, FTIR-1

  • Reliable optical system
  • High stable components
  • Powerful intelligent software

Share the product




It is wildly used by materials science, bio pharmaceutical, petrochemical, food safety and other industry analysis instruments, it’s also adopted by university laboratory for scientific research and teaching.


Reliable optical system

1. The design integrates main components to an optical bench machined from a cast aluminum, accessories will be mounted by needle positioning, no need to adjust.

2. Sealed Michelson interferometer, combined with moisture proof beam splitter and bigger Moisture proof agent box to get 5 times moisture proof ability.

3. The temperature observation window adopts 7 degree forward design, which conforms to the principle of human engineering, easy to observe and convenient to replace the molecular sieve.

4. The design of push pull type sample bin can greatly reduce the interference of water and carbon dioxide in the air on the test results, and its designed larger to access various accessories.

5. Working power less than 30W, green environmental protection.Ø

High stable components

1. The sealing interferometer uses USA imported gold cube corner reflector with high reflectivity and angular accuracy.

2. With high performance long life ceramic light source imported from USA, the luminous efficiency is as high as 80%.

3. VCSEL laser imported from USA with high performance.

4. High sensitive DLATGS detector imported from USA.

5. Its off axis mirror using SPDT cutting process, with excellent optical efficiency and system consistency.

6. The imported special steel rail, heavy load, low friction, ensure data stability and repeatability.

Powerful intelligent software

1. Intelligent human-computer interaction and operation guide design, you can quickly get started and skilled whether you have contacted the FTIR software.

2. Unique spectral data acquisition monitoring preview mode, land acquisition process.

3. Provide standard library of approximately 1800 spectra for free, include most common Compounds, drugs, oxides.

Model FTIR-1
Wave number range 7800 ~ 375 cm-1
Interferometer Michelson interferometer with 30 degree of incidence angle
100% τ line tilt range Better than 0.5 τ %(2200~1900cm-1
Resolution 1 cm-1
Signal noise ratio 30000:1 (DLATGS, resolution@4cm-1. sample and background scan for 1 min@2100cm-1)
Detector High resolution DLATGS detector with Moisture-proof coating
Beamsplitter KBr coated with Ge(Made in USA)
Light source Long life, air cooled IR light source(Made in USA)
Electronic system A/D converter of 24 bits at 500MHz, USB 2.0
Electricity 110-220V AC, 50-60Hz
Dimension 450*350*235 mm
Weight 14.2kg
Package dimension 650*600*400mm
Package weight 35kg

Usual optical parts:


Znse Crystal ATR

FTIR Spectrometer

Sheet Mold

Press the powder into a window in order to test. Diameter 13mm, thickness 0.1-0.5mm, without demoulding.

FTIR Spectrometer

Agate Mortar

Grand solid sample into powder

Diameter 70mm.

FTIR Spectrometer

Press (We suggest you buy it locally because it’s heavy)


IR Oven

Temperature 70~250℃


Liquid Cell

For liquid sample

Kbr window, deliquescent,wavelength range 7000-400cm-1.

Light transmittance range 2.5μm~25μm.
