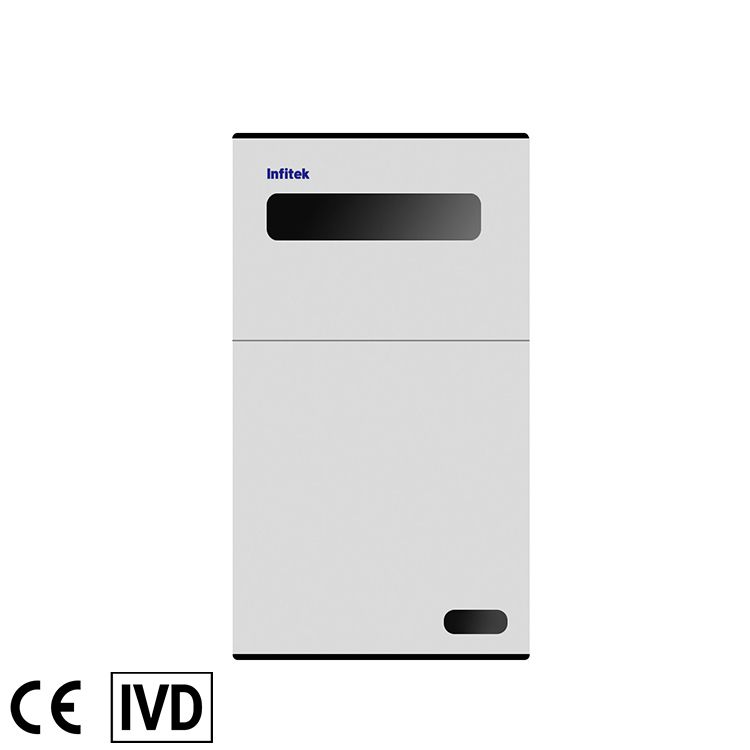

Fully Automatic Multifunctional Gel Imaging System, GEP-GD900MF

  1. High QE: >95%
  2. Pixel Size: 4.63μm×4.63μm
  3. Exposure: 1ms-60min
  4. Bit: 16 bit (0-65535)

Share the product

Category:

Description

It is equipped with scientific research grade cryogenic camera, large aperture lens, RGB fluorescent light source ultraviolet white light source, optional temperature control platform and anesthesia system.

Features
One-time forming and seamless design of integrated shell prevents light leakage.
The ultra-sensitive CCD camera and large aperture lens of cryogenic scientific research level have extremely high photo sensitivity.
Fully automatic control, shooting can be selected without manual setting of hardware parameters.
One-click gel cutting function, you can see and recycle gel without opening the software.
The lens focuses automatically without manual focusing.
Compatible with samples of different thickness.
One-click shooting, sample and marker are automatically superimposed. Automatic false color and tri-color automatic merging.
Accurate automatic exposure, including image management and image viewer, with image merging and false color function

Specifications

Model GEP-GD900MF
Pixel 12MP
QE High QE: >95%
Pixel Size 4.63μm×4.63μm
Binning 1×1, 2×2, 3×3, 4×4···8×8
Exposure 1ms-60min
Cooling Temperature -65℃
Bit 16 bit (0-65535)
OD ≥4.8OD
Lens F = 0.95, Auto focus, Optional F=0.80
RGB Standard:473nm, 532nm, 650nm,optional
Laser Optional: 473nm, 532nm, 650nm, etc. 21×21 cm
UV Transmission UV 302+365nm, Area:21*21cm
White Light Double-layer white light reflection
UV Reflection 254nm , optional 302nm , 365nm
Filter Wheel 5 standard and 7 optional
Filter Standard : 590nm , 535nm , 605nm , 695nm , etc.
Shooting Area Max. Size:25*26cm
APP Timer Shut Down 1 ~ 60min
Temperature Control Platform Optional
Anesthesia System Optional
Dimension 380*405*695mm
N.W./G.W. 37kg/40kg
Shipping Dimension 500*525*825mm
