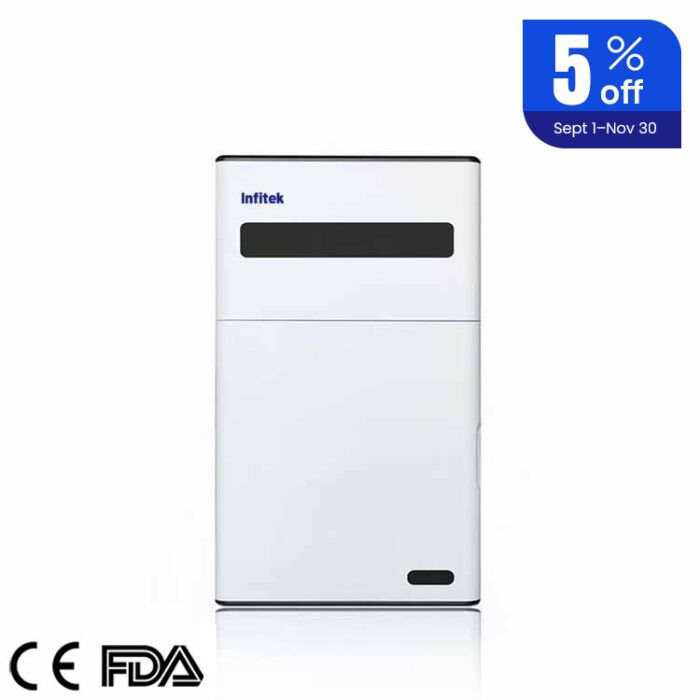

Gel Imaging System, GEP-GD100 GEP-GD1000

  • Gel Imaging System
  • Pixel: 2592*1944(5.03MP)
  • Bit Depth: 16bit(0-65535)
  • Exposure Time:1ms-3000ms
  • High-resolution CCD camera

Share the product




The Gel Imaging System can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBR Gold,SYBR Green, SYBR Safe, Gel Red Gel Green Texas, Red Fluoresce in marked DNA/RNA.


  • Easy to use & Humanized design

It is a highly integrated and fully automated gel imaging system. The system interface is simple and practical, the main interface has shooting button and time control to guide the user. It is very easy to operate,no need to have manual tedious debug.

  • High resolution CCD camera

High resolution CCD camera, high sensitivity, high resolution, with automatic focus and high performance 6 times lens, specialized filter for nucleic acid dye.

  • Specialized overlay glue cutting filter

Specialized overlay glue cutting filter,compared with the traditional one,it has many advantages,easy to operate,can prevent UV and blue light damage,no need to operate in dark room,work very well under strong light condition. The white light sample plate is used for SDS-PAGE glue samples shooting.

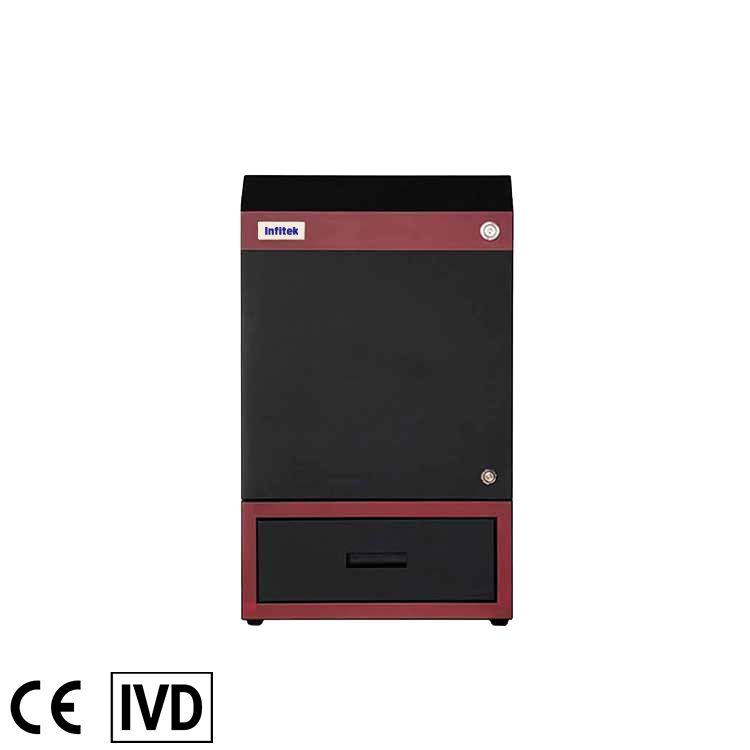

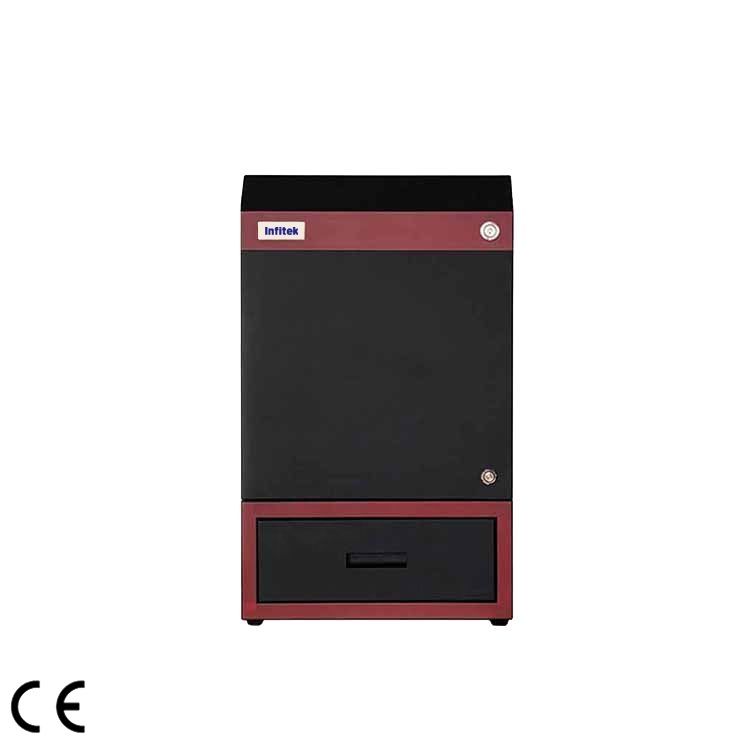

The body is made of all stainless steel, which is stable and reliable

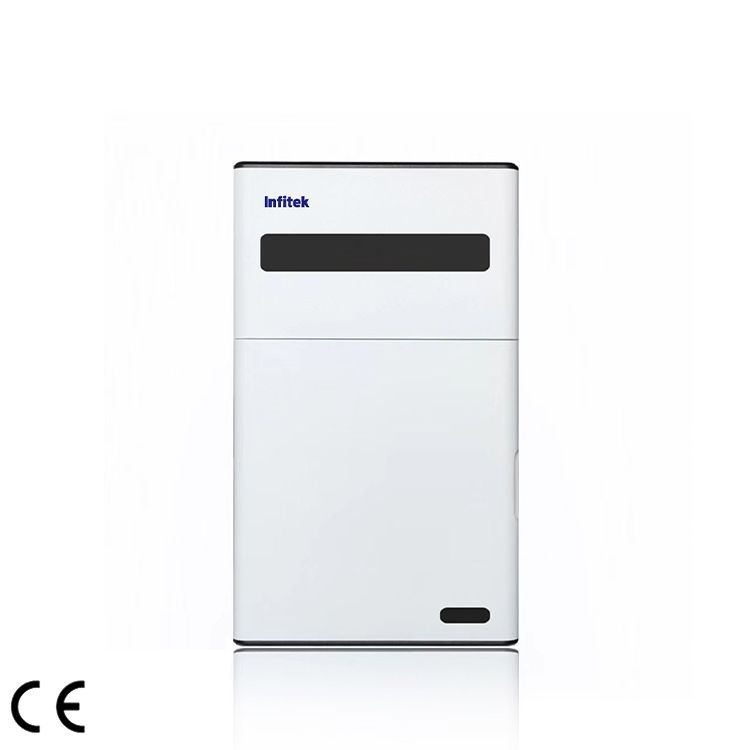

  • The body is made of ABS engineering plastics, which is safe and beautiful.
  • The white light self luminous plate is used to make the spontaneous white light more uniform, presenting a perfect SDS-PAG imaging effect


Model GEP-GD100 GEP-GD1000
Pixel 2592*1944(5.03MP) 2592*1944(5.03MP)
Exposure Time 1ms-3000ms 1ms-3000ms
QE Value High QE: >65% High QE: >65%
Binning 1*1 1*1
Bit Depth 16bit(0-65535) 16bit(0-65535)
OD ≥4.8OD ≥4.8OD
Lens Motorized 8-48mm,F1.2 Motorized 8-48mm,F1.2
Trans-UV 302nm 302nm
Epi-White LED LED
Trans white UV to white sample plate UV to white sample plate
Epi-UV 254nm、302nm、365nm (Two options maximum) /
Filters 400-800nm 400-800nm
UV area 210*210mm 210*210mm
Timing off 1~60mins 1~60mins
Dimensions 360*375*605mm 380*405*695mm
Weight 30.5kg 35.5kg
