- Speed:4000rpm/3000rpm
- Max.RCF:1480×g/1192×g
- Max.Capacity:12cards/24cards

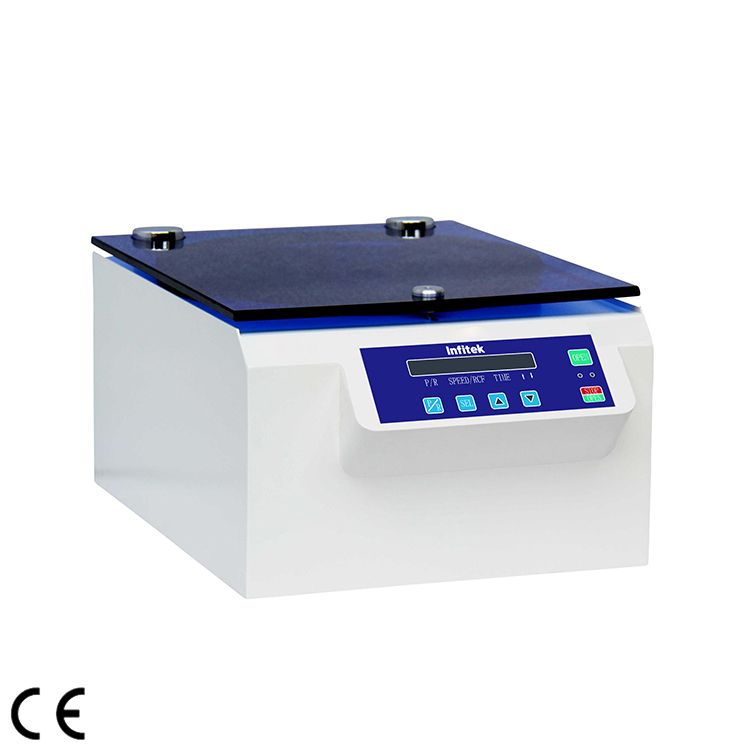

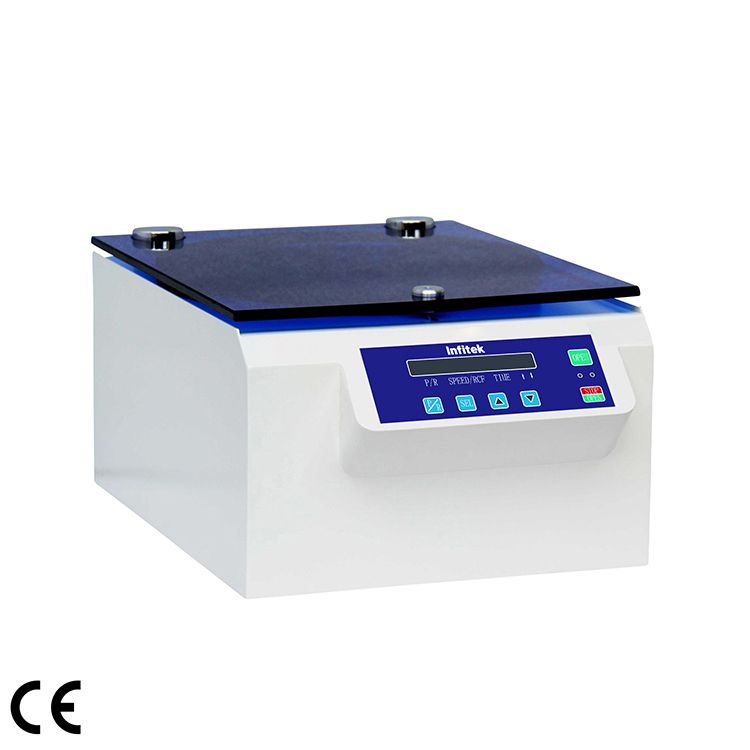

Gel Card Centrifuge, CFG-4Y Series
Description
Application
It is widely used in the test of blood group serology, blood type, micro-column agglutination, immunodetection and etc.
Features
- Brushless motor, free maintenance, no powder pollution.
- Microcomputer control, digital display of time, speed and RCF, easy to operate.
- Special gradient centrifugation technology, and different gradients can be designed according to different reagent requirements.
- Regular centrifugation program, customers can press the button to choose the required one.
- 10-speed acceleration and deceleration control, the last program used when starting up.
- The silent electronic door lock is easy to use and has an emergency door opening function.
- Door lock, over-speed, imbalance automatic protection and fault self-diagnosis.
Specifications
| Model | CFG-4Y(BT) | CFG-4AY(BT) |
| Max. Speed | 4000rpm | 3000rpm |
| Max. RCF | 1480×g | 1192×g |
| Max.Capacity | 12cards | 24cards |
| Speed Accuracy | ±10r/min | |
| Timer | 1s~99min59s | |
| Sound Emission | ≤55dBA | |
| Electricity | AC 110V/220V, 50/60Hz | |
| External Dimension | 450*320*225mm | 500*360*250mm |
| N.W./G.W. | 15kg/18.5kg | 18kg/21kg |
| Shipping Dimension | 580*430*350mm | 615*450*390mm |
Rotors
| Model | Rotor Type | Max. Speed | Max. Capacity | Max. RCF |
| CFG-4Y(BT) | Swing Rotor | 4000rpm | 12 cards | 1480×g |
| CFG-4AY(BT) | Swing Rotor | 3000rpm | 24 cards | 1192×g |
