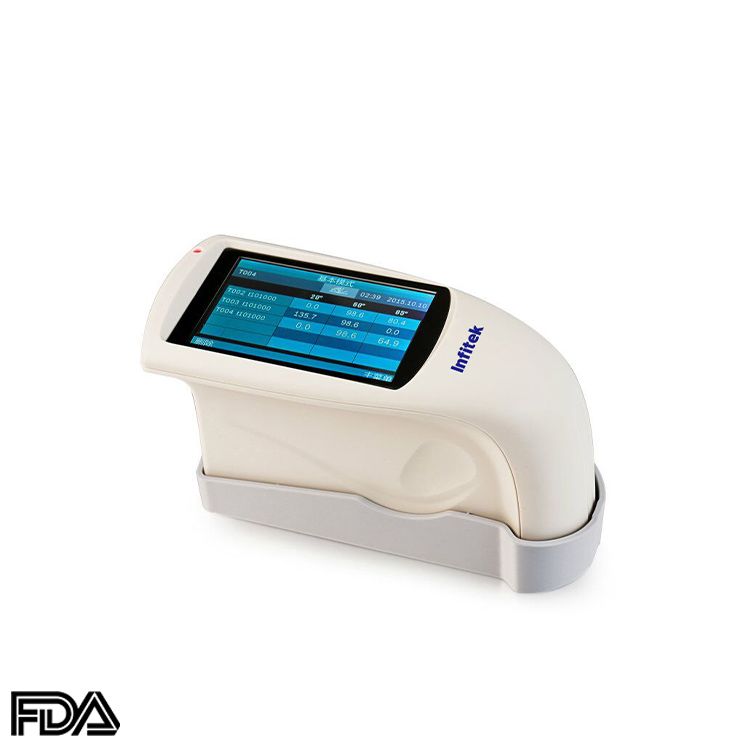

Gloss Meter, Multi-angle Precise, GLOM-268P

  1. Measuring Angle: 20°, 60°, 85°
  2. Measuring Range: 20°: 0~2000GU; 60°: 0~1000GU; 85°: 0~160GU
  3. Large touch screen operation, easy to use
  4. Large storage to save over 5000 data

Share the product





1.20,60 and 85°in one: from high to low gloss – have the specified angle on hand
2.One button for all angles measurement at the same location
3.Display 5 sets of measurement data, good for comparison
4.Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
5.Continuous mode to check uniformity over large areas
6.Connect to PC, more extend functions
7.Input gloss value manually
8.Large touch screen operation, easy to use
9.Beauty appearance, good man-machine communication interface
10.Powerful functions to meet many different requirements
11.Large storage to save over 5000 data
12.Built-in lithium ion rechargeable battery.



GLOM-268P Multi-angle Precise Gloss Meter
Model: GLOM-268P
Measuring Angle 20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10×10    60°: 9×15    85°: 5×36
Measuring Range 20°:0~2000GU   60°:0~1000GU   85°:0~160GU
Division Value 0.1GU
Measurement Range



0-10GU            10-100GU      100-2000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°)  under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 1.0s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Storage Basic mode: 1000; Statistical Mode: 5000,Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature  0~40℃(32~104°F)
Storage Temperature  -20~50℃(-4~122°F)
Humidity <85% relative humidity,  no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.

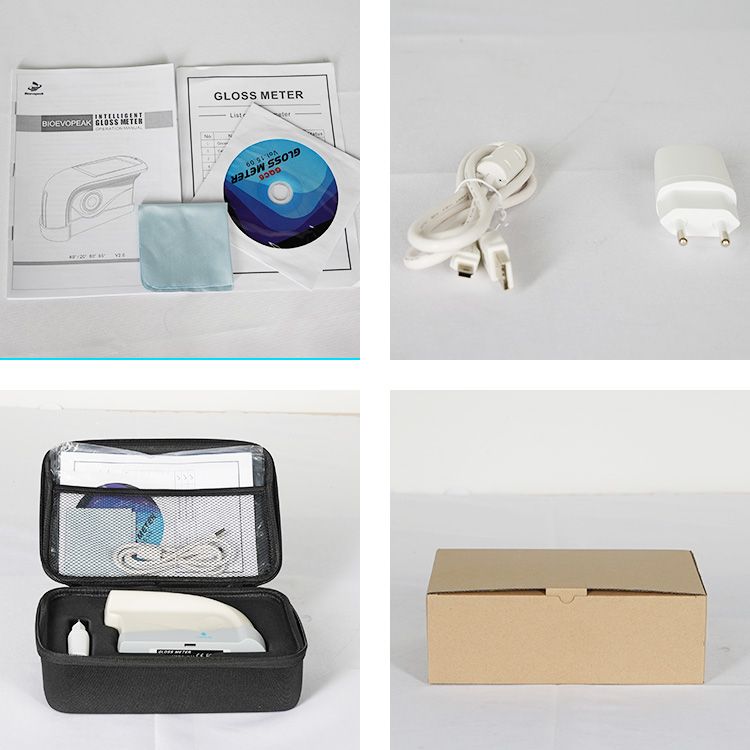

Accessories & Package
