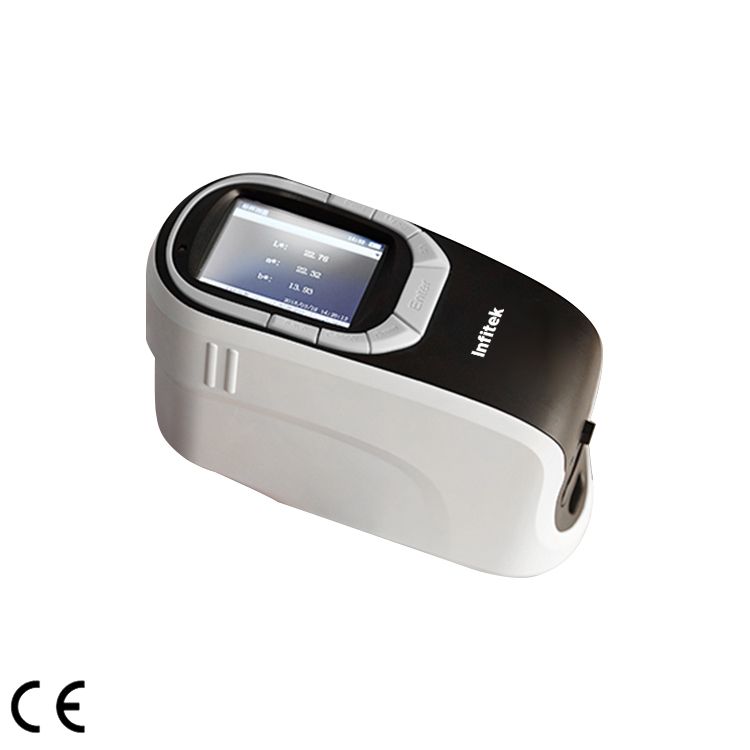

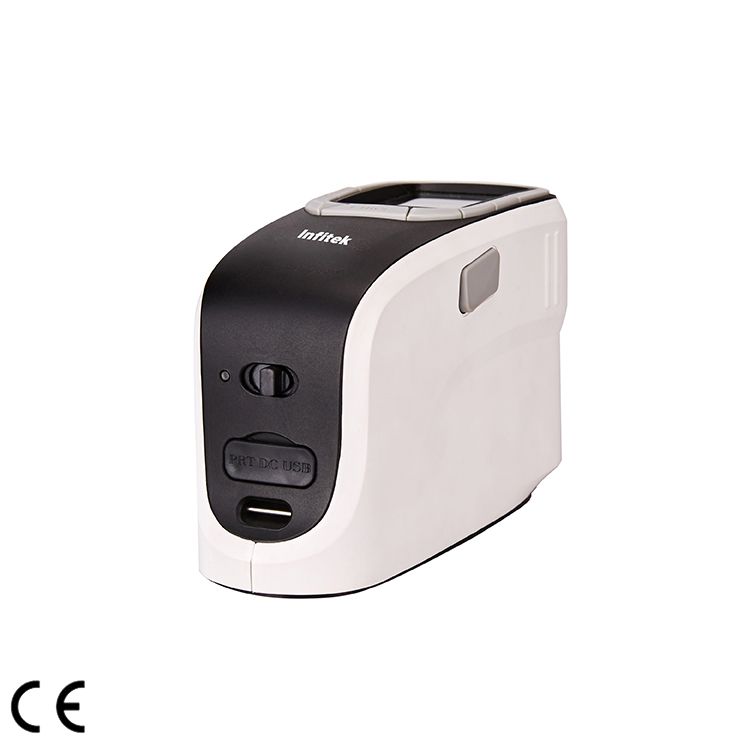

Grating Portable Spectrophotometer, SP-CLR580A,B

  • Observer Angle:2°/10°
  • Integrating Sphere Size:φ40mm
  • Wavelength Interval:10nm
  • Wavelength Range:400-700nm
  • Measuring Aperture:Type A:φ10mm;Type B:φ4mm,φ 6mm

Share the product

Description

Portable Grating Spectrophotometer has powerful performance configuration which makes color measurement more professional. Excellent inter-instrument error ensures consistency of the measurement data of multiple devices.

Features

1.Adopt D/8 optical structure and SCI/SCE mode.

Adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded).

2.The camera can clearly observe the measured area.

The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

  1. Uses CLEDs light source – spectrally balanced LED light source.

LED light source that has balanced intensity across visible spectrum avoids the spectral deficiency in certain parts of the spectrum in common white LEDs, and guarantees the speed of the measurement and the accuracy of the results.

  1. Adopts Every TimeCalibration Technology (ETC)

The innovative ETC (Every Time Calibration) and standard whiteboard included in the optical system allow reliable accuracy and repeatability in every measurement.

  1. Color QC Software

Our spectrophotometer comes with PC color QC software, which is applicable in various industries for management of color data. It is used for store test result, generate test report and print test report after connect with printer.

  1. Automatic gloss compensation technology.

Adopts automatic gloss compensation technology,which guarantees the accuracy of color measurement value for surfaces of different gloss.

  1. Innovative light splitting SCS optical engine.

Adopt innovative single-grating-dual-light-paths light splitting system: SCS optical engine,which creates the best measurement repeatability for portable spectrophotometers and guarantees accurate measurement of surface color of materials.

8.Complete light sources compares with similar products.

Compared with similar products, our spectrophotometer provides the most complete 28 kinds of standard light sources and 40 kinds of measured color value indicators;

It can also customize the measurement method according to your requirements to meet all your color measurement needs.

Specifications

Model SP-CLR580A SP-CLR580B
Optical Geometry D/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded),simultaneous measurement.

(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)

Integrating Sphere Size φ40mm, diffused reflection surface coating
Light Source CLEDs(entire wavelength balanced LED light source)
Sensor Dual light path sensor array
Wavelength Range 400-700nm
Wavelength Interval 10nm
Half Spectral Width 5nm
Measured Reflectance   Range 0-200%
Reflectance Resolution 0.01%
Observer Angle 2°/10°
Illuminant A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Display SPD distribution/data,sample’s color values,color difference values/graph, pass/fail results, color error tendency, color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measuring Time Interval 2s
Measuring Time 1s
Color Space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color Difference Formula ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Other Colorimetric Index WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness,

Covering power, force,Opacity, color strength

Repeatability Light splitting reflectivity:standard deviation within 0.08%
Color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),

Max.:0.05

Measuring Aperture φ10mm φ4mm, 6mm
Inter-instrument Error ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Battery Rechargeable, 10000 continuous tests, 7.4V/6000mAh
Interface USB
Data Storage 20000 test results
Illuminant Life Span 1.5 million measurements in 5 years
Screen True color screen that includes all colors
Operating Environment 0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Operating Environment -25℃~55℃,relative humidity 80% or below(at 35°C ),no condensation
Standard Accessory DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts
Optional Accessory Powder molding device, micro printer, measurement and test report
External Dimension(L*W*H)) 181*73*112mm
Net Weight About 0.55kg(excluding battery’s weight)
