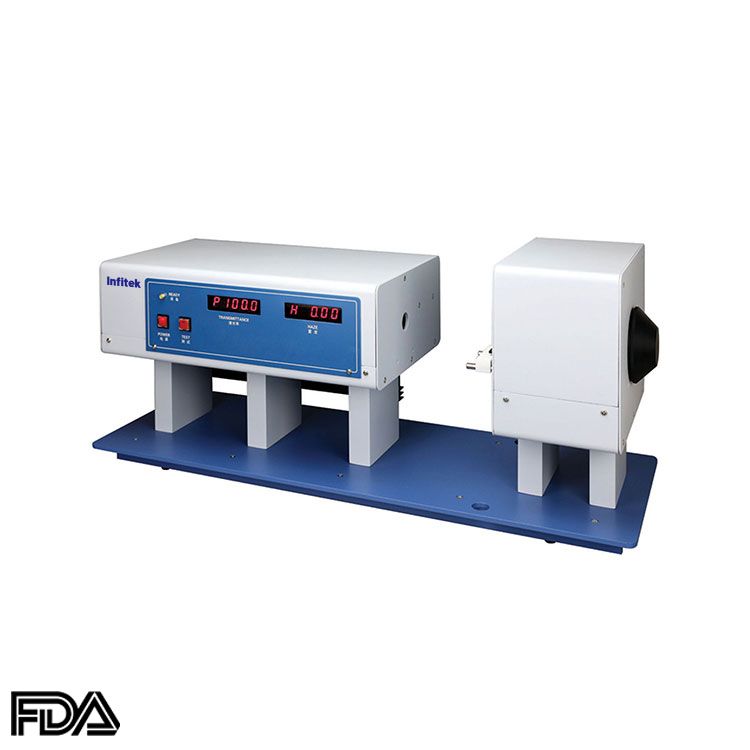

Haze Meter, HZM-S

  1. In conformity with the standard of GB/T 2410-2008, ASTM D1003-2007, JISK7105-81
  2. Microcomputer control
  3. Measurement range: Transmittance: 0~100%; Haze: 0~30% (absolute), 30.1~99% (relative)
  4. Minimum reading: 0.1% (transmittance), 0.01% (haze)

Share the product



Measurement of transmittance and haze of the parallel plane sample of all transparent and translucent (plastic board or sheet).
Measurement of turbidity of liquid sample (water and beverage).
In conformity with the standard of GB/T 2410-2008, ASTM D1003-2007, JISK7105-81.
Microcomputer control and easy to operate.
Display of transmittance and haze at the same time.
Equipped with USB interface


Parameters/Model HZM-S
Light Source C light (6774k)
Measurement range Transmittance: 0~100%
Haze: 0~30% (absolute), 30.1~99% (relative)
Minimum reading 0.1% (transmittance), 0.01% (haze)
Accuracy Transmittance: ≤±1%
Haze: ≤±5%
Repeatability Transmittance: ≤0.5%
Haze: ≤0.2
Sample window size 23mm (incident window), 21mm (exit window)
Display Nixie tube
Interface USB
Weight (Gross) 23 kg
Overall dimensions 910mm×410mm×480mm
