- Working time Continuous
- Max Temp（℃）200℃
- Outer Shell: Iron plate welding, surface spraying
- Hot plate: Aluminum tensile
- Driving mode: No
- Heating power(W) 1200; 1800; 2000; 2600; 3000

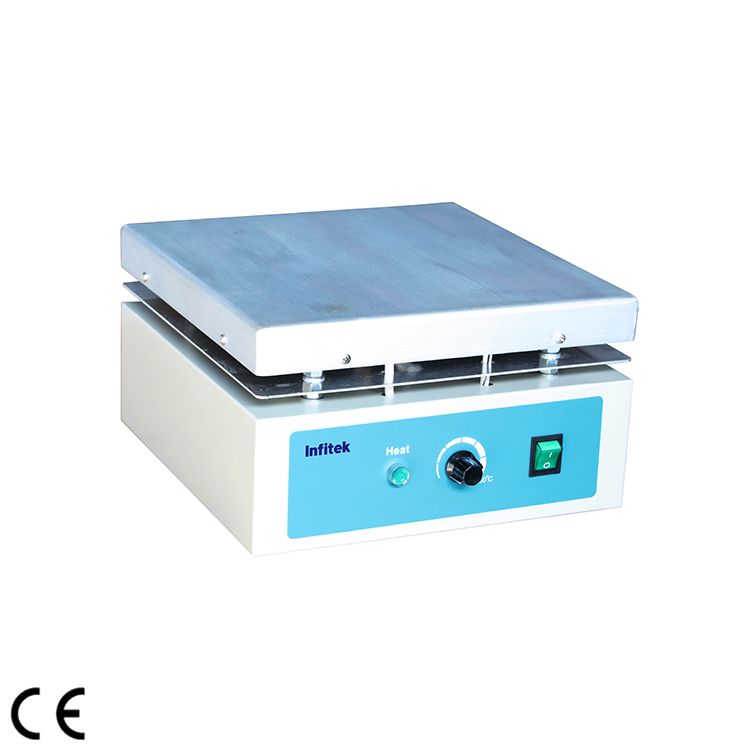

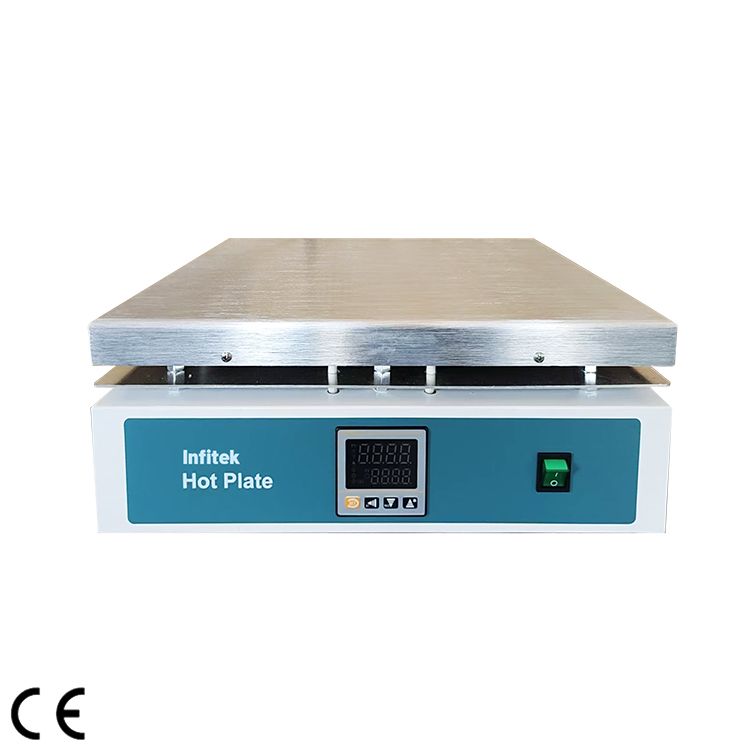

Hot Plate, Aluminum, HPT-350 Series
Description
DESCRIPTION
DESCRIPTION
Hot Plate
1. Aluminun hot plate,uniform surface temperature
2. Heating up fast and uniform,heating power is stepless adjustable
3. Digital hot plate has the more functions as follows:
4. Digital display can read the temperature more clearly.
SPECIFICATIONS
SPECIFICATIONS
| Model | HPT-350-5A/5C | HPT-350-6A/6C | HPT-350-7A/7C | HPT-350-8A/8C | HPT-350-9A/9C | |
| Working time | Continuous | |||||
| Max Temp. （℃） |
200℃ | |||||
| Structure | Outer Shell | Iron plate welding, surface spraying |
||||
| Hot plate | Aluminum tensile | |||||
| Driving mode | No | |||||
| Heating power (W) |
1200 | 1800 | 2000 | 2600 | 3000 | |
| Controller | Continuous operation |
Yes | ||||
| Setting method | Scale/Digital | |||||
| Timer | No/Digital | |||||
| Operation function | No | |||||
| Temperature sensor |
K model | |||||
| Exterior size (W*L*H) (cm) |
34*37*22 | 42*50*22 | 45*47*22 | 42*65*22 | 47*65*22 | |
| Plate size（mm） | 300*300 | 350*450 | 400*400 | 350*600 | 400*600 | |
| Plate load | 20KG | 30KG | 30KG | 38KG | 40KG | |
| Power supply （50/60Hz） |
220V | |||||
| NW/GW (kg) | 6.2/7 | 8.4/9.6 | 8.5/9.8 | 11/13 | 12/14.2 | |
