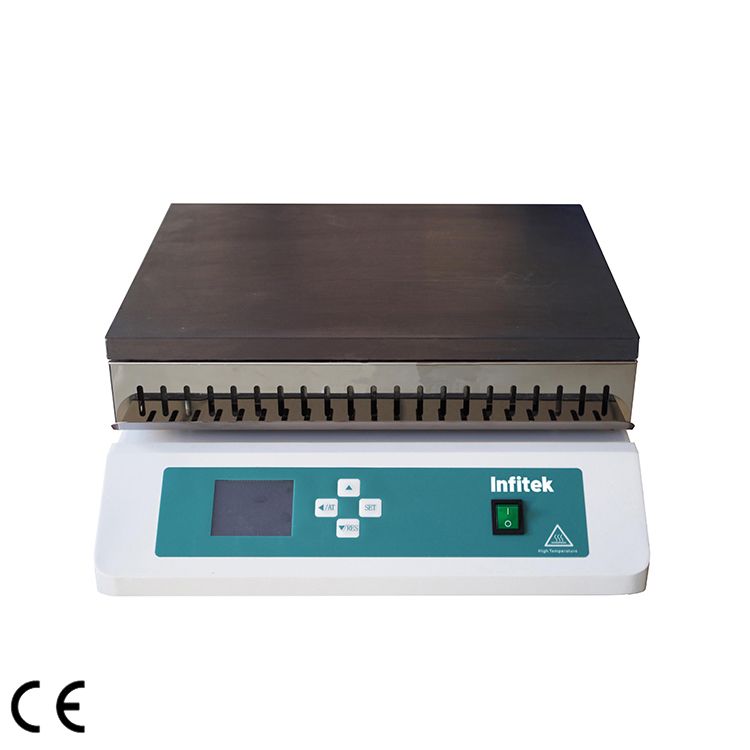

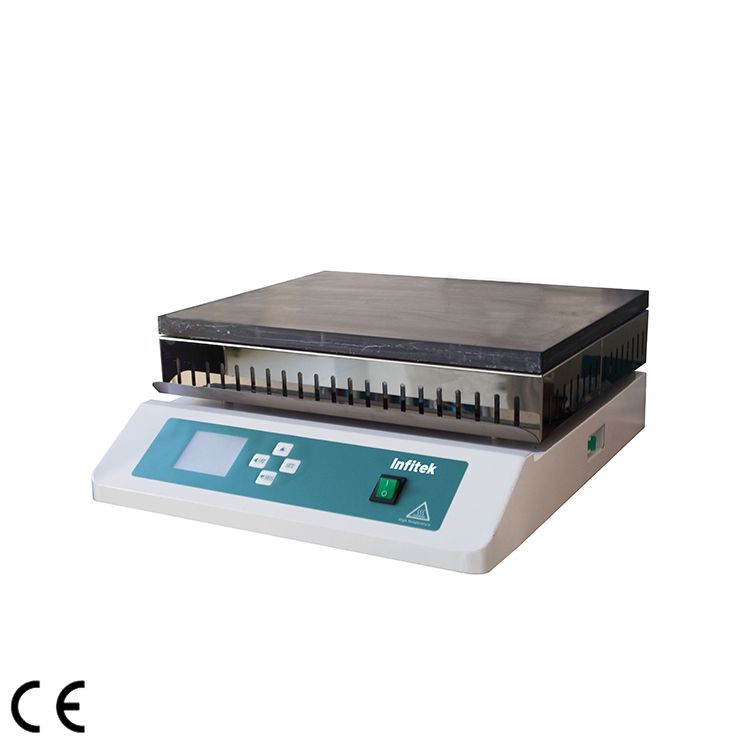

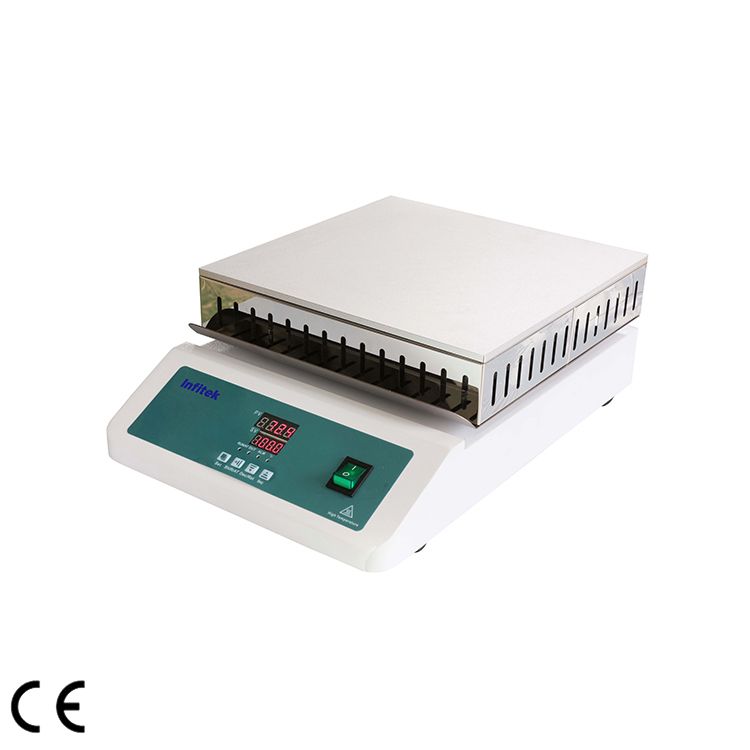

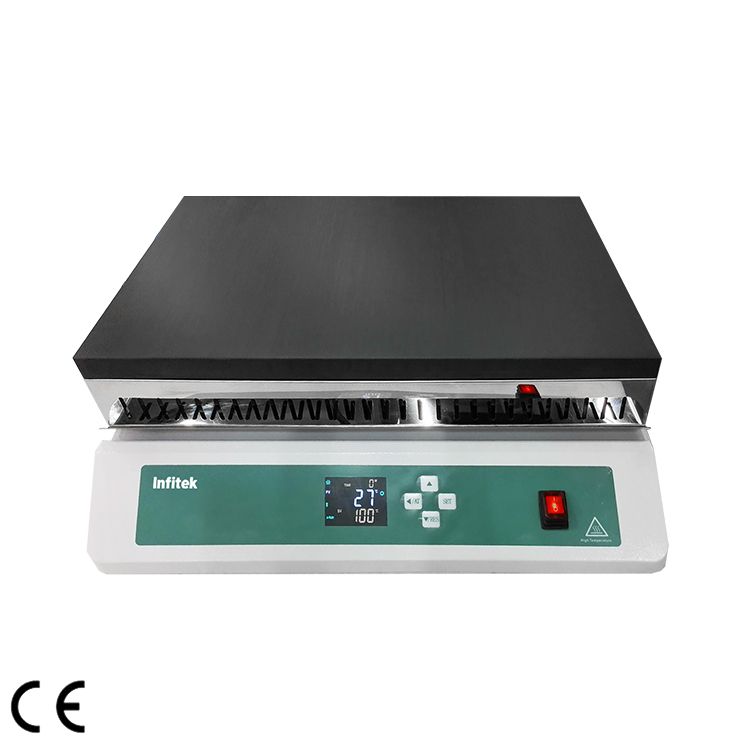

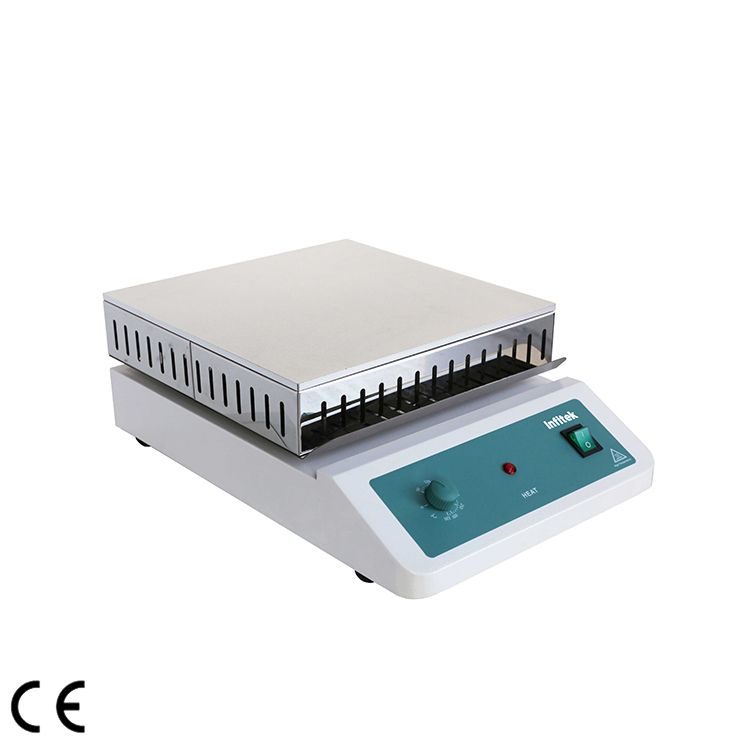

Hot Plate, HPT Series

  1. Max Temp.(℃):
    HPT-320-5B/8B /9B: 320℃
    MGS-5,HPT-320-8B,HPT-350-9B: 350℃
    HPT-400-5B,HPT-400-8B,HPT-400-9B: 400℃
  2. Temp. accuracy:
    HPT-320-5B,HPT-320-8B,HPT-320-9B: ±10%
    MGS-5,HPT-350-8B,HPT-350-9B,HPT-400-5B,HPT-400-8B,HPT-400-9B: ±1%

Share the product

Description

DESCRIPTION

DESCRIPTION

  1. Aluminum hot plate or Graphite hot plate,uniform surface temperature
  2. Heating up fast and uniform.
  3. Plate temp. Uniformity improved more.

SPECIFICATIONS

SPECIFICATIONS

Model HPT-320-5B HPT-320-8B HPT-320-9B HPT-350-5B HPT-350-8B HPT-350-9B HPT-400-5B HPT-400-8B HPT-400-9B
Work plate dimension(mm) 300×300 350×450 400×600 300×300 350×450 400×600 300×300 350×450 400×600
Work plate load(kg) 20 30 40 20 30 40 20 30 40
Work plate material Aluminum-tensile Aluminum-tensile Aluminum-tensile Aluminum-tensile Aluminum-tensile Aluminum-tensile Graphite Plate Graphite Plate Graphite Plate
Time setting No No No 0~9999min/h 0~9999min/h 0~9999min/h 0~9999min/h 0~9999min/h 0~9999min/h
Temperature setting Scale Scale Scale Digital display Digital display Digital display Digital display Digital display Digital display
Max Temp.(℃) 320 320 320 350 350 350 400 400 400
Temp. accuracy ±10% ±10% ±10% ±1% ±1% ±1% ±1% ±1% ±1%
Plate Temp. uniformity ±15% ±15% ±15% ±10% ±10% ±10% ±10% ±10% ±10%
Temperature sensor K model K model K model K model K model K model K model K model K model
Heating power(W) 800 1500 2200 1200 2400 3500 1800 3000 4500
Power supply(50/60Hz) 220V 220V 220V 220V 220V 220V 220V 220V 220V
Plug Yes Yes Yes Yes Yes No Yes Yes No
Exterior size(W×L×H) (mm) 340×370×220 420×500×220 470×650×220 340×370×220 420×500×220 470×650×220 340×370×220 420×500×220 470×650×220
Packing size(W×L×H) (mm) 520×380×250 560×520×250 660×620×250 520×380×250 560×520×250 660×620×250 550×410×270 600×560×270 700×660×270
NW/GW (kg) 9/10 11/12 15/17 9/10 11/12 15/17 12/13.5 19/20 28/30
