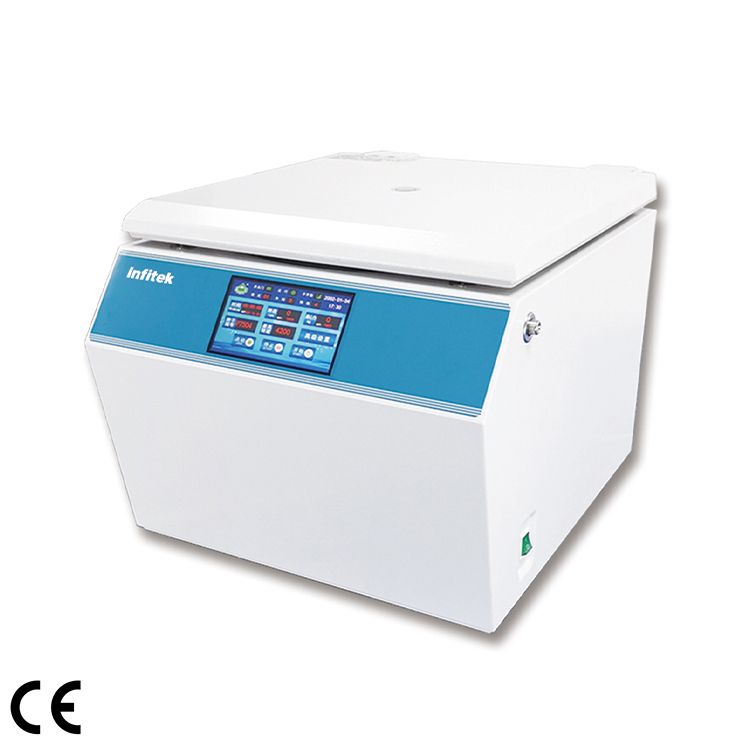

Low Speed Centrifuge, CFG-6JP

  • Max.Speed:6000rpm
  • Max.RCF:5502xg
  • Max.Capacity:500mlx4

Share the product

Description

Description

The centrifuge adopts microcomputer control, large-screen color LCD display, and full touch-screen operation interface to directly set the working program, RCF, speed, time, acceleration and deceleration, and rotor model.

Features

  1. Brushless AC variable frequency motor drive and special drive module ensure the reliability of the circuit.
  2. Double door cover lock system, starting means locking, ensuring safe operation.
  3. Provides 20 kinds of working program storage, users can freely program and call theirworking parameters, which is easy to use and improves work efficiency.
  4. Provide 15 kinds of acceleration/deceleration; User can set one group of acceleration and deceleration arbitrarily according to the sample requirements.
  5. Two timing functions: at set rpm and start timing, and the jog is short spin function.
  6. Differential centrifugation: Five differential centrifugation programs are reserved, and users can set them according to their needs.
  7. Double-layer steel structure and stainless steel centrifugal chamber to avoid corrosion.
  8. Automatic balance and imbalance protection. When an error or imbalance occurs, an audible alarm signal will be issued and the centrifuge will automatically stop running.
  9. Easily adjust speed, RCF, time and temperature during operation without
  10. The shortest acceleration / deceleration time≤
  11. Countdown function : The countdown in seconds,real time display of remaining working time.
  12. Can customize 485 communication interface function.
  13. Sunken exhaust passage prevents aerosol pollution during centrifugation.

Specifications

Model CFG-6JP
Max.Speed 6000rpm
Max.RCF 5502xg
Max.Capacity 500mlx4
Speed Accuracy ±10rpm
Timing Range 1s~99h59min59s/Jog (short spin)
Sound Emission ≤60dB
Electricity AC 220V, 50Hz, 10A
Power 400W
Dimension(W*D*H) 610*485*410mm
N.W./G.W. 42kg/65kg
Package Dimension(W*D*H) 750*645*630mm

Rotor Configuration

Rotor Capacity Max. Speed Max.RCF
NO1:

Swing Rotor

Cross

300mlx4 4500rpm 3894xg
Adapter:250mlx4,100mlx4, 50mlx12

15ml(conical)x28, 10ml Vacuum Tube x40

5ml Vacuum Tube x56, 5mlx76

NO2:

Swing Rotor

Cross

500mlx4 4200rpm 3451xg
Adapter:250mlx4,100mlx12, 50mlx16

15ml(conical)x40, 10ml Vacuum Tube x56

3/5ml Vacuum Tube x68, 5mlx96

NO3:

Cap Remover

Swing Rotor

Cross

5mlx68 4200rpm 3451xg
5ml Vacuum Tube x68
NO4:

Cap Remover

Swing Rotor

Cross

5ml Vacuum Tube x84, 3ml Vacuum Tube x100 4200rpm 3451xg
NO5:

Angle Rotor

50mlx6 6000rpm 5502xg
NO6:

Angle Rotor

50mlx6 6000rpm 5502xg
NO7:

Microplate

96well×2 5000rpm 3530xg
96well×2×2 5000rpm 3530xg
