- Function: Heating
- Temp. range: RT.+5℃-105℃
- Optional blocks: 4-30 wells for 0.2-50ml tubes
- Support bead bath/water bath blocks
- Equipped with external temperature sensor
- Overheating protection & Sound reminder function

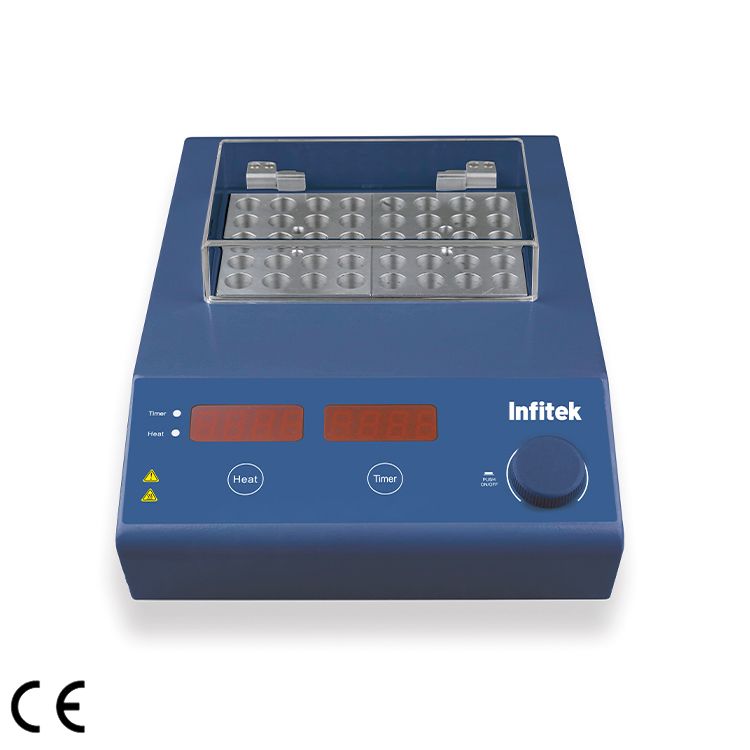

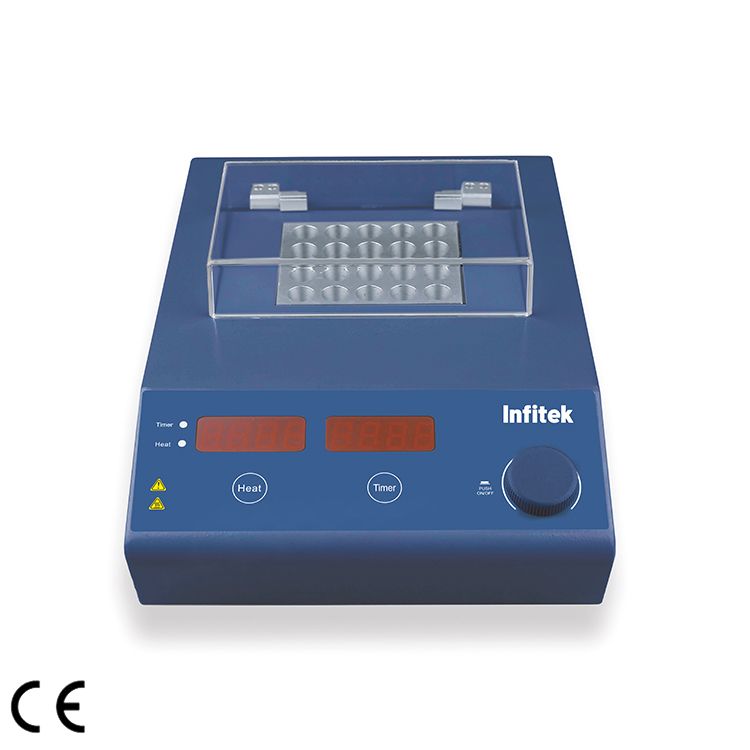

Mini Dry Bath / Block Heater, DBI-1 Series
Description
1. A wide range of temperature control up to 105℃/150℃.
2. Overheating protection.
3. Sound reminder function.
4. External temperature sensor PT1000.
5. Block equipped with a lid for heat preservation and prevent pollution.
6. Knob adjustment is easy to operate.
Specifications
| Specifications | DBI-105-1 | DBI-105-2 | DBI-150-1 | DBI-150-2 |
| Temperature range (℃) | Room temp.+5~105 | Room temp.+5~105 | Room temp.+5~150 | Room temp.+5~150 |
| Temperature setting range (℃) | 25~105 | 25~105 | 25~150 | 25~150 |
| Temperature control accuracy (℃) | 25~90: ±0.3 | 25~90: ±0.3 | 25~90: ±0.3 | 25~90: ±0.3 |
| 90~105: ±0.6 | 90~105: ±0.6 | 90~105: ±0.6 | 90~105: ±0.6 | |
| Temperature uniformity@37℃ (℃) | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Power (W) | 100 | 200 | 100 | 200 |
| Time setting range | 0~99h59min | 0~99h59min | 0~99h59min | 0~99h59min |
| External sensor | Yes | Yes | Yes | Yes |
| Display | LED | LED | LED | LED |
| Power supply | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz |
| External dimension (mm) | 290×210×120 | 290×210×120 | 290×210×120 | 290×210×120 |
| Weight (kg) | 3.2 | 3.2 | 3.2 | 3.2 |
| Operating temperature (℃) | +10~40 | +10~40 | +10~40 | +10~40 |
| Operating humidity (%RH) | < 80 | < 80 | < 80 | < 80 |
Optional blocks
| Cat. No. | Block types | Capacity | Diameter Depth |
| 18900459 |  |
30×0.2 mL | 6.4 mm 15 mm |
| 18900410 |  |
20×0.5 mL | 8.2 mm 26.4 mm |
| 18900461 |  |
20×1.5 mL | 11 mm 24.7 mm |
| 18900462 |  |
20×2 mL | 11 mm 34.7 mm |
| 18900413 |  |
4×50 mL | 29.8 mm 48 mm |
| 18900522 |  |
Two-in-one block, bead bath/water bath Adapt to S1 |
|
| 18900523 |  |
Two-in-one block, bead bath/water bath Adapt to S2 |
|
| 18900520 | Aluminum beads | ||
