- Capacity(L/cu.ft): 100/3.53
- Temperature range(℃): -25~-10℃
- Advanced Cooling System: Reasonable refrigeration layout, more stable refrigerant, High cooling efficiency and fast cooling speed
- Stable and high precise temperature control: Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
- Convenient after-sales service: 2 years warranty

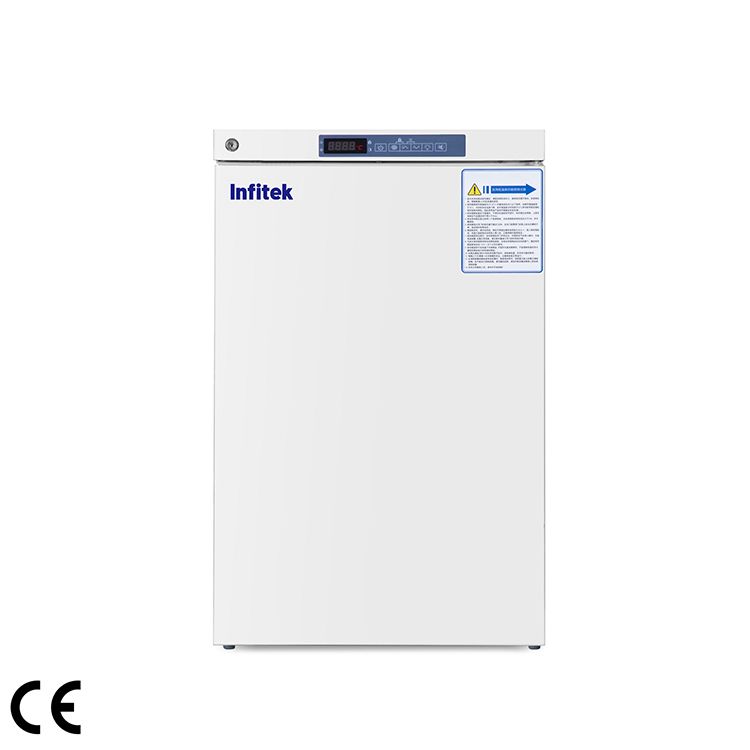

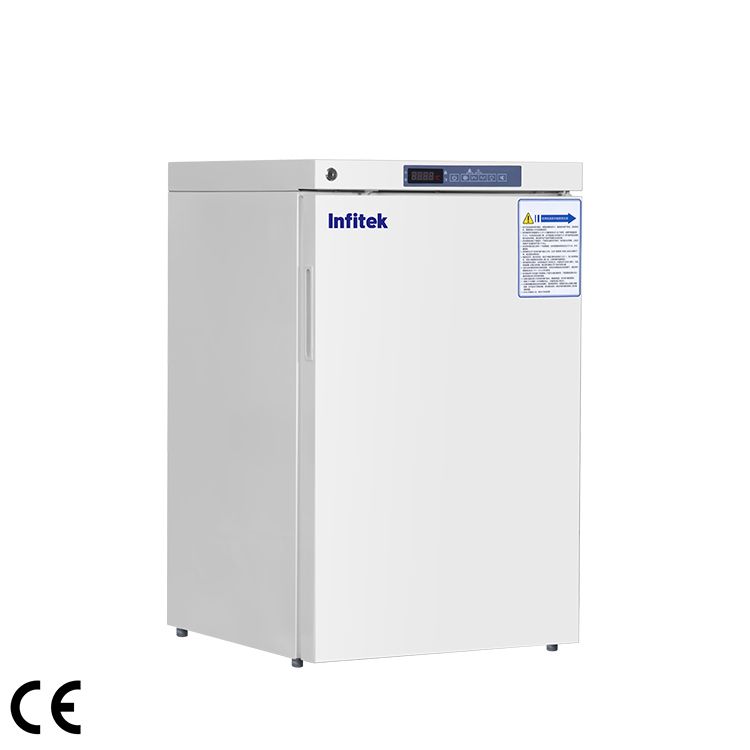

-25℃ Vertical Freezer, LF25-100
Description
Key Features
1.Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
2.Lockable caster design for customer to move as needed.
3.Wide voltage tolerance design with applicable voltage range of 187~242V/AC.
Safety
1.Multiple malfunction alarms including high and low temperature, sensor error, power off, temperature controller malfunction, door ajar.
2.Two types of alarm indications: audible buzzing and visible flashing light.
3.Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from damage.
4.Controller password protect function to avoid change running parameter randomly.
Reliability
1.Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.
2.High density CFC-free urethane foam insulation for rigidity and stable storage temperature.
3.Microprocessor control, digital display adjustable temperature range: -25℃~-10℃.
4.LED digital display for clear observation.
Specifications
Model | LF25-100 | |
Capacity (L) | 100 | |
Dimension (W*D*H) | Internal (mm) | 410*410*670 |
External (mm) | 540*553*877 | |
Temperature | Range (℃) at RT.10~32℃ | -10~-25 |
Sensor | NTC | |
Controller | Microprocessor | |
Cooling system | Refrigerant( CFC Free ) | R600a |
Defrost | Manual | |
Compressor (Qty) | KY55C45G/1 | |
Display | Digital display | |
Audible&Visible Alarm | High/Low temperature | Standard |
High ambient temperature | / | |
Sensor error | Standard | |
Abnormal voltage | / | |
Door ajar | Standard | |
Power failure backup system(alarm) | 8h | |
Material | Internal | HIPS |
External | Electro-galvanized steel with antimicrobial powder coating | |
Accessories | USB port | / |
Casters | / | |
Temperature data logger | Optional | |
Remote alarm port | / | |
Test hole (Qty) / Diameter (mm) | 1/25 | |

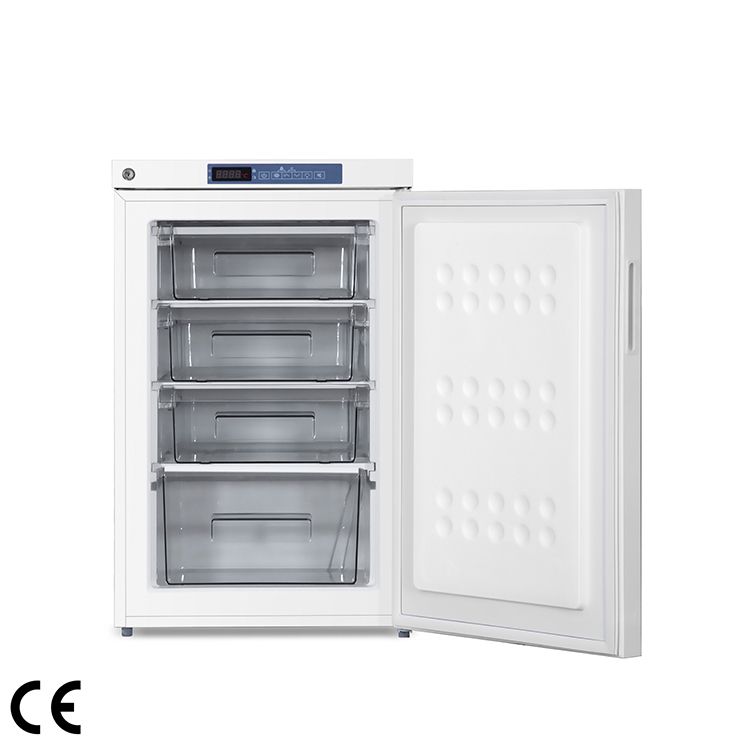

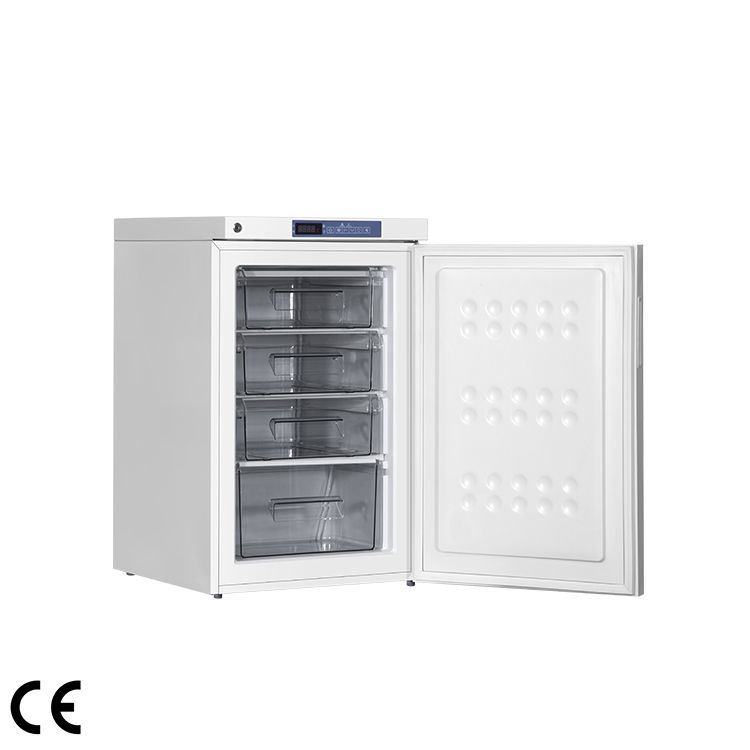

Shelves / Drawers (Qty) | Shelves/3 ,Drawers/4 | |
Sound Emission (dB) | 50 | |
Electricity | Voltage/Frequency | AC 110/220V ± 10% , 50/60Hz |
Consumption (W) | 73 | |
N.W./G.W. (kg) | 32kg/43kg | |
Package Dimension (W*D*H)(mm) | 640*650*1100 |
