- Capacity（L/cu.ft): 105/3.70, 485/17.12
- Temperature range（℃）: -60℃~-25℃
- Advanced Cooling System： High-performance compressor, reasonable refrigeration layout, more stable refrigerant
- Stable and highly precise temperature control: Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
- Convenient after-sales service: 2 years warranty

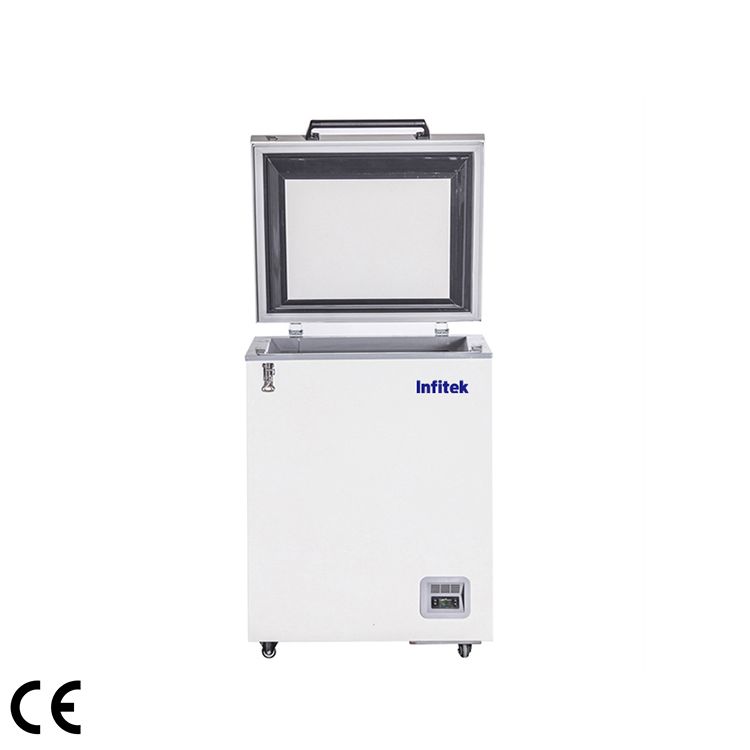

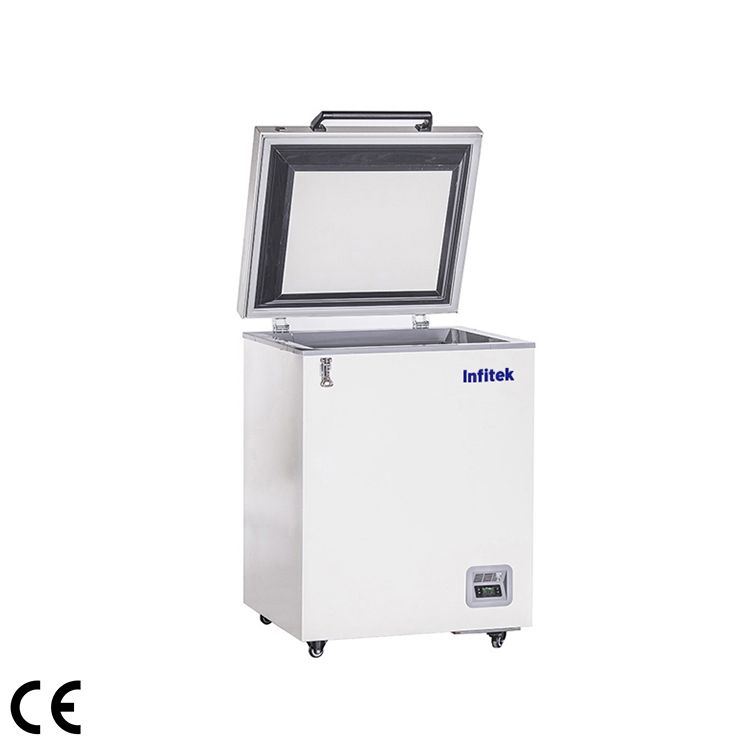

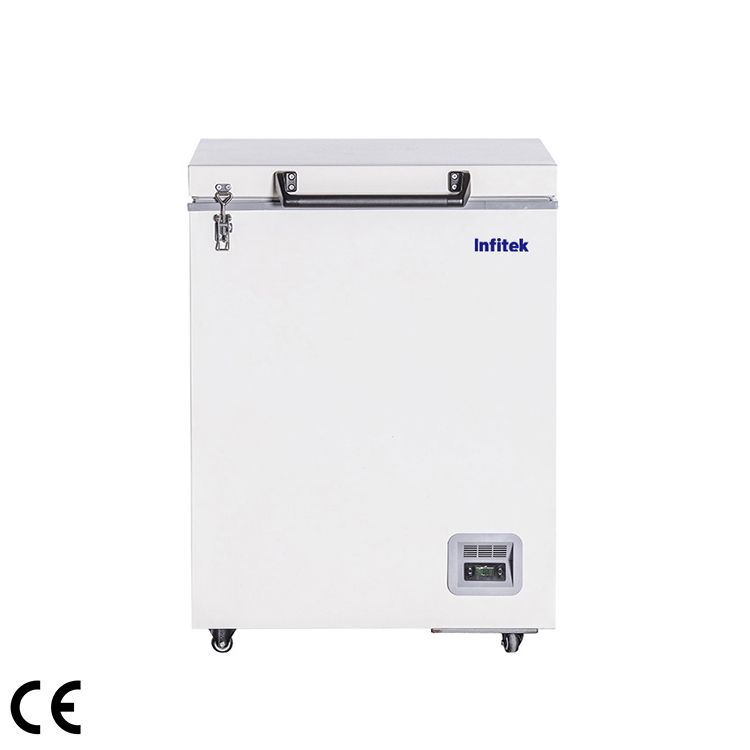

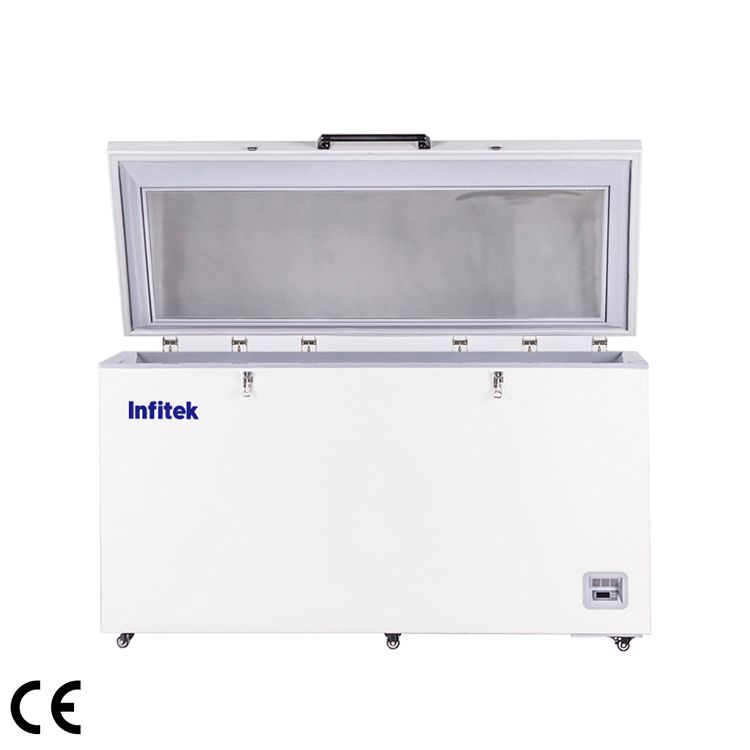

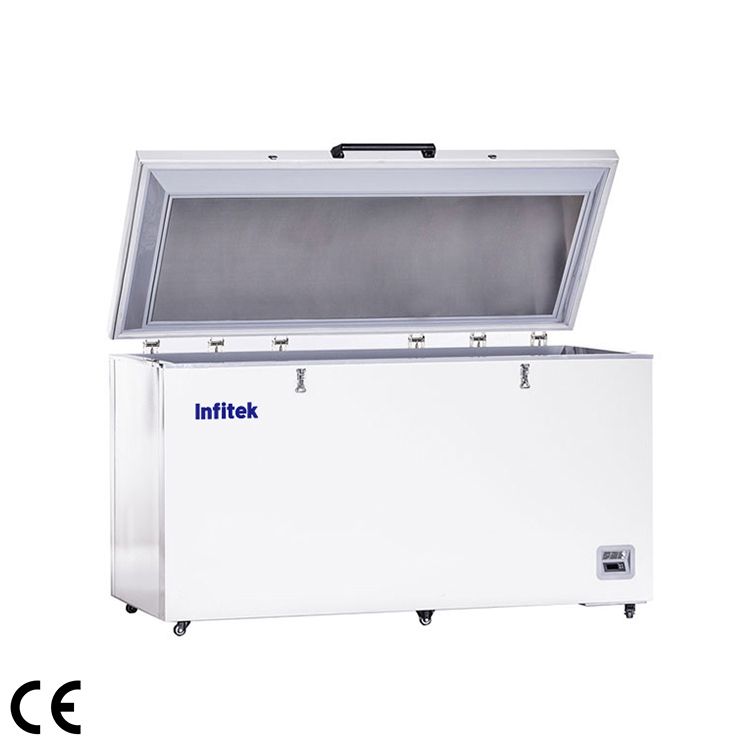

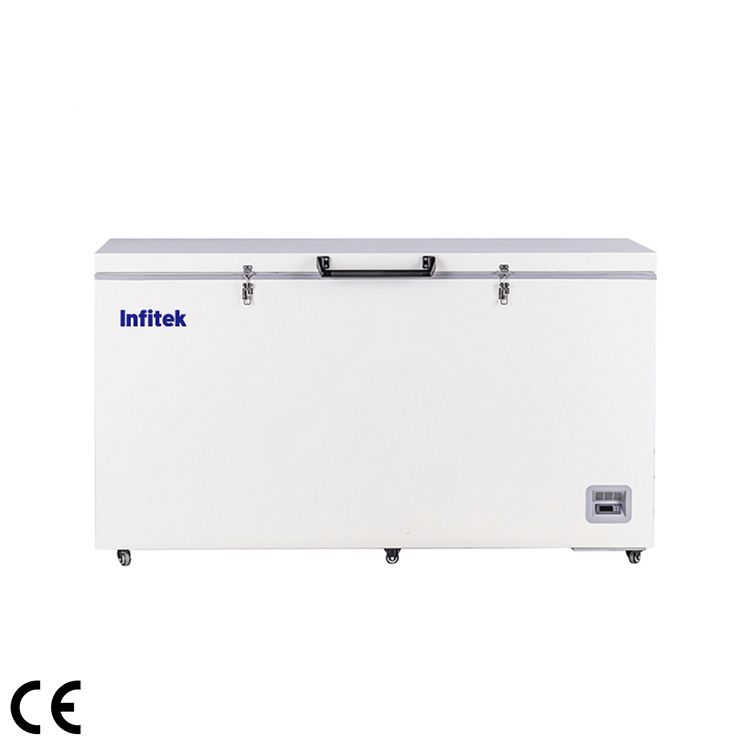

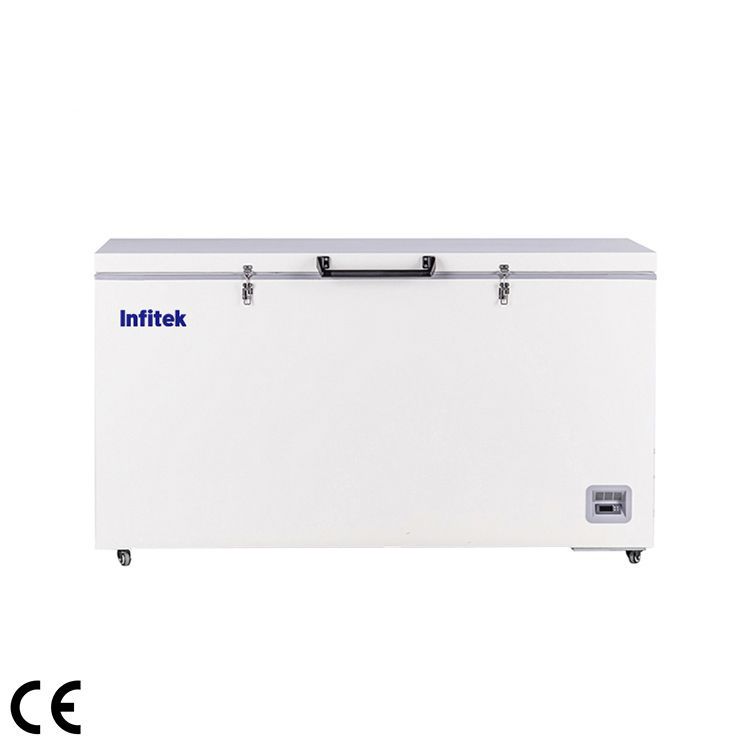

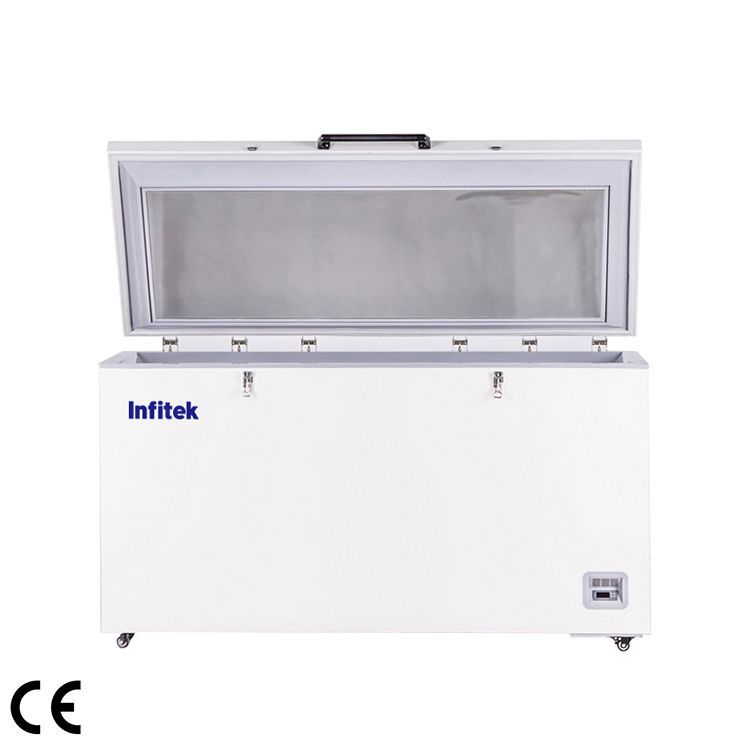

-60℃ Chest Freezer, LF60-H Series
Description
| Model | LF60-H110 | LF60-H490 | |
| Capacity (L) | 105 | 485 | |
| Dimension (W*D*H) | Internal (mm) | 480*380*665 | 1455*525*665 |
| External (mm) | 680*580*935 | 1670*810*930 | |
| Temperature | Range (℃) at RT. 10~32℃ | -25~-60 | -25~-60 |
| Sensor |
|
|
|
| Controller | Microprocessor | Microprocessor | |
| Cooling System | Refrigerant | R4001 | R4001 |
| Defrost | Manual | Manual | |
| Compressor (Qty) | CUBIGEL/1 | CUBIGEL/1 | |
| Display | Digital display | Digital display | |
| Audible&Visible Alarm | High/Low temperature | Standard | Standard |
| High ambient temperature | / | / | |
| Sensor error | Standard | Standard | |
| Abnormal voltage | / | / | |
| Low battery | / | / | |
| Power failure backup system(alarm) | / | / | |
| Material | Internal | Stainless steel, grade 304 | Stainless steel, grade 304 |
| External |
|
|
|
| Accessories | USB port | / | / |
| Casters | Standard | Standard | |
| Chart recorder | / | / | |
| Temperature data logge | / | / | |
| Remote alarm port | / | / | |
| Test hole (Qty) / Diameter (mm) | 1/25 | 1/25 | |
| Back up system (LN₂) | / | / | |
| Shelves / Drawers (Qty) | / | / | |
| Sound Emission (dB) | 53 | 53 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Consumption (W) | 380 | 600 | |
| N.W./G.W. (Kg) | 62/67 | 122/142.5 | |
| Shipping Dimension (W*D*H) (mm) | 735*687*1040 | 1775*873*1065 | |
| Category | Title | File type/size | Download |
| Brochure | Brochure – Refrigerator & Freezer | PDF(3 MB) | download |
