- Auto-power off
- Multi-reading feature
- IP65 waterproof
- 1-3 points calibration with standard recognition

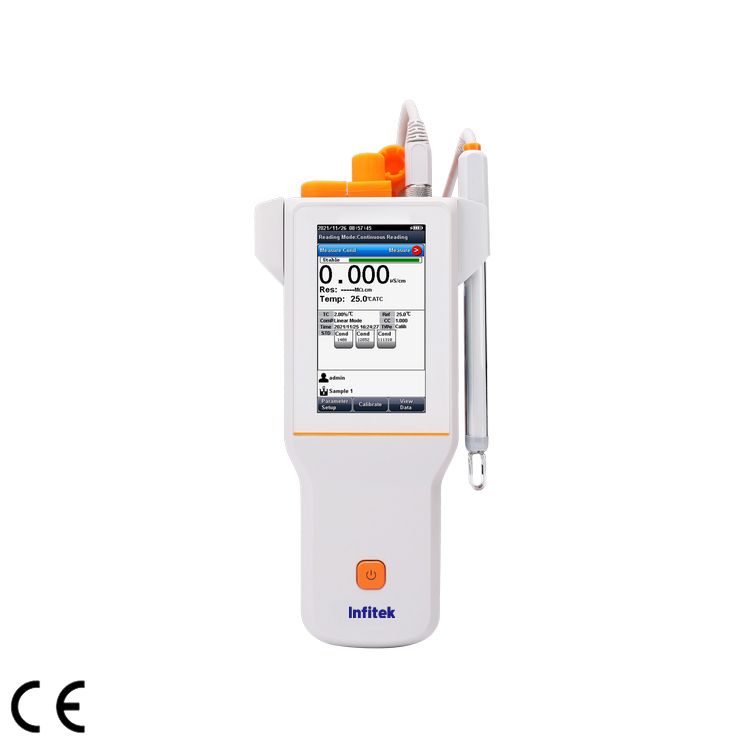

Portable Conductivity Meter, CON-P310T
Description
The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.
Advantages
4.3-inch Color High contrast LCD touchscreen
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data capacity of up to 500 sets for each parameter (GLP-compliant).
Support for USB communication.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof.
1-3 points calibration with standard recognition.
Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
Temperature compensation type (none, linear, pure water).
Specifications
| Model | CON-P310T | |
| Conductivity | Range | 0.000 μS/cm to 1000 mS/cm |
| Resolution | 0.001 μS/cm minimum, | |
| various with range selection | ||
| Accuracy | ±1.0% FS | |
| Reference Temperature | 20, 25 ºC | |
| Calibration Points | Up to 3 | |
| Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
| Resistivity | Range | 5.00 Ω ·cm~20.00 MΩ ·cm |
| Resolution | 0.01Ω ·cm minimum, | |
| Accuracy | ±1.0% FS | |
| TDS | Range | 0.00ppm~300ppt |
| Resolution | 0.001ppt minimum, 3 significant digits | |
| Accuracy | ±1.0%FS | |
| Salinity | Range | 0~80ppt |
| Resolution | 0.1ppt | |
| Accuracy | ±2ppt | |
| Temperature | Range | -5 to 110 ºC, 23 to 230 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.2 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes | |
| Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
| Outputs | USB | PC, printer |
| Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600sec., off | |
| IP Rating | IP65 | |
| Date and Time | Yes | |
| General | Electricity | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions(W*D*H) | 90× 255 ×40 mm | |
| Package Dimension (W*D*H) | 420× 350× 180mm | |
| N.W./G.W. | 0.5Kg/4kg | |
