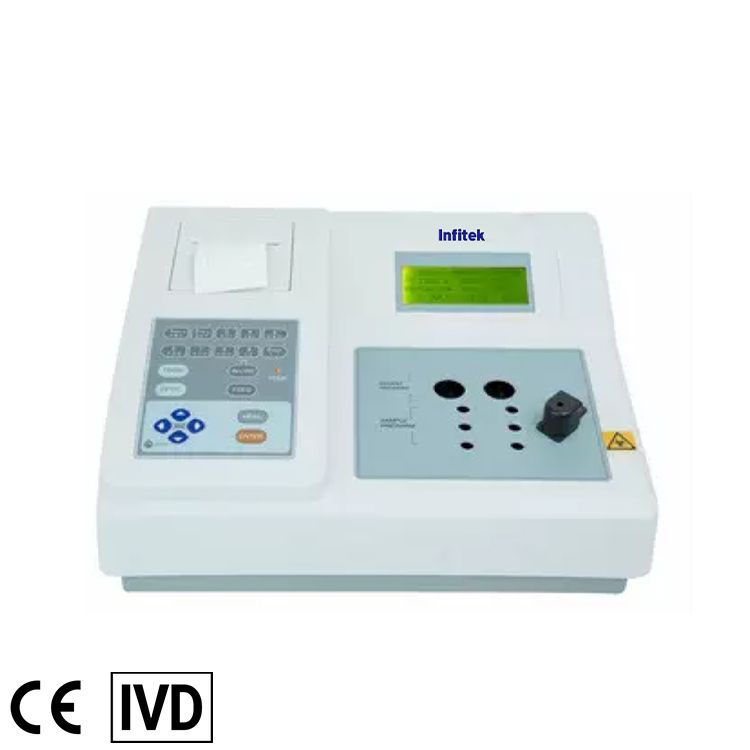

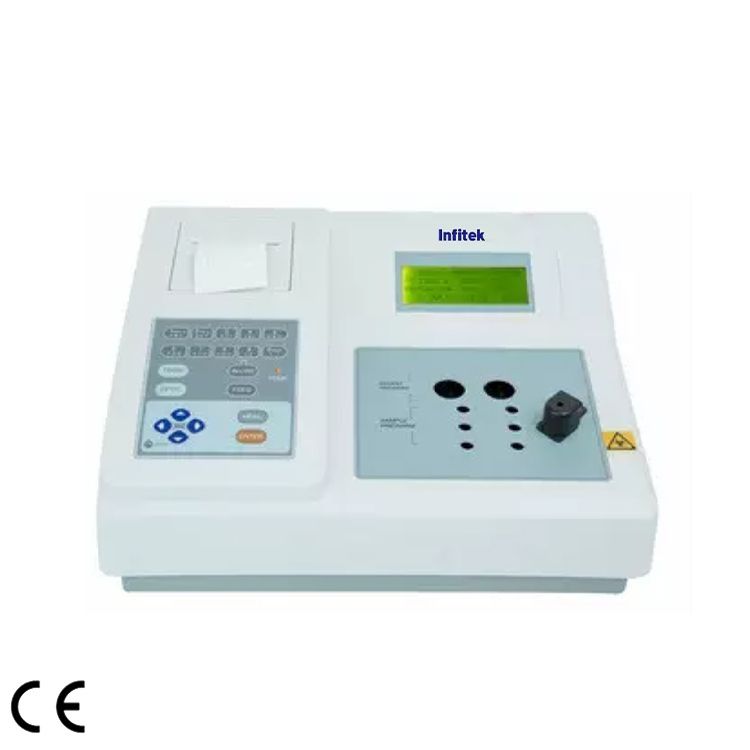

Semi-Auto Coagulation Analyzer, BCA-SA-1-6S

  1. Sample pre-warming position:6
  2. Reagent pre-warming position:2
  3. Sample consumption: 20μL-40μL
  4. Reagent consumption: 20μL-40μL

Share the product


Coagulation analyzer is a routine testing medical device that measures the content of various components in human blood, quantifies the results of biochemical analysis, and provides reliable digital basis for clinical diagnosis of various diseases of patients.


  • Advanced scattered light principle and percentage analysis ensure accurate results.
  • Low reagent consumption less than 20μL, open reagent.
  • Special testing cup location system, adding sample bracket
  • Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
  • Advanced optical light matching system ensure precision result.
  • 240*128 large LCD display.
  • Memory for 10,000 testing result
  • Internal thermal-sensitive printer

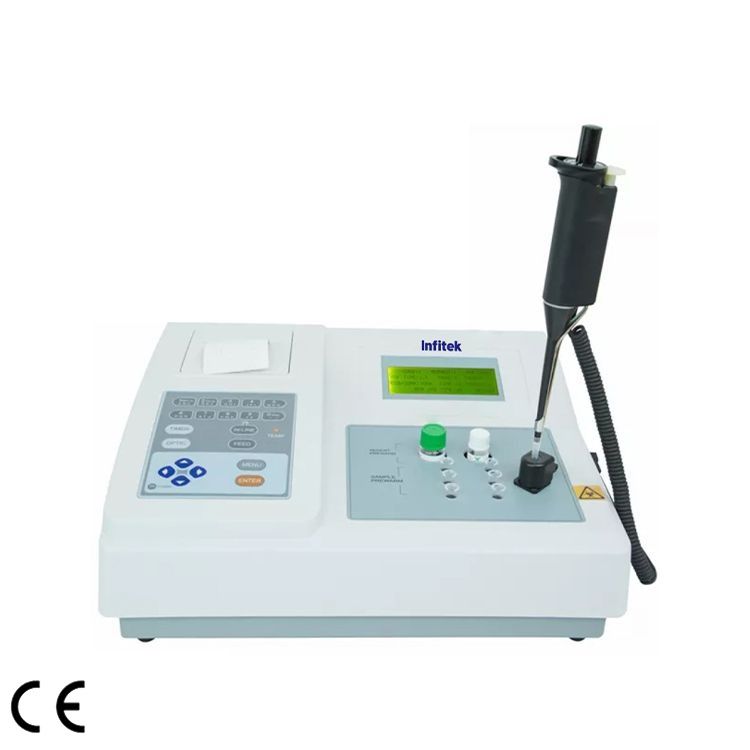

  • Electronically-linked pipette optional.
  • Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors
  • RS232 interface, PC connecting for management software


Model BCA-SA-1-6S
Testing channels 1 channel
Sample pre-warming position 6 positions
Reagent pre-warming position 2positions
Software timer 1
Test wavelength 470nm
Sample consumption 20μL-40μL
Reagent consumption 20μL-40μL
Temp control precision 37±0.3℃
Repeatability CV < 2%
Coincidence indicator ≤3%
Memory 10000 test result
Notation of Result S, %, PTR, INR, g/L
Operation language English
Electricity 220VAC±15% 50-60Hz
Dimensions(L*W*H) 380*320*230 mm
Packing dimensions(L*W*H) 500*460*290 mm
Working environment Temperature: 15℃-30℃; Humidity≤90%
Net weight 6.5kg
Gross weight 8.5kg
