- Sample hot position: 24
- Reagent hot position: 6
- Sample consume: 50, 75, 100 uL
- Reagent consume: 50, 75, 100 uL

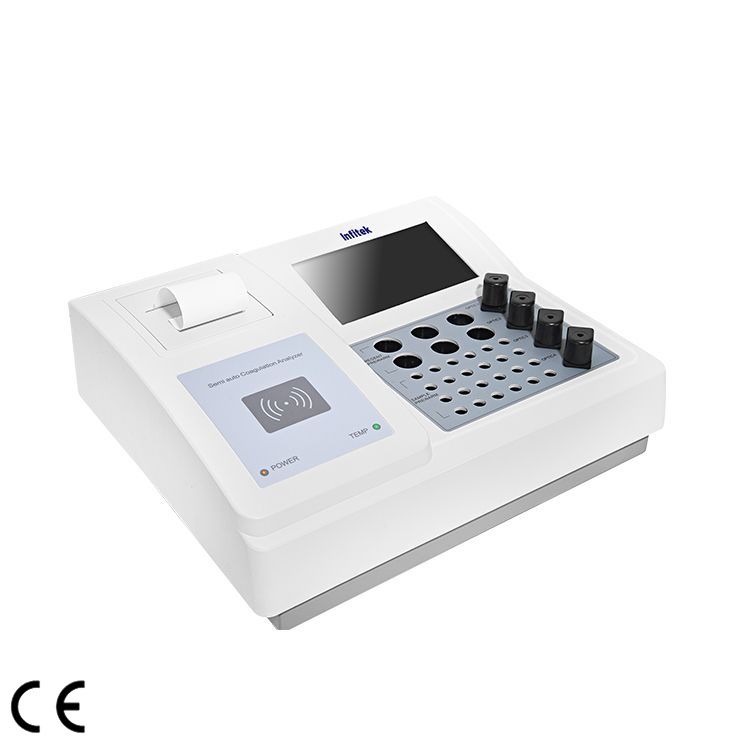

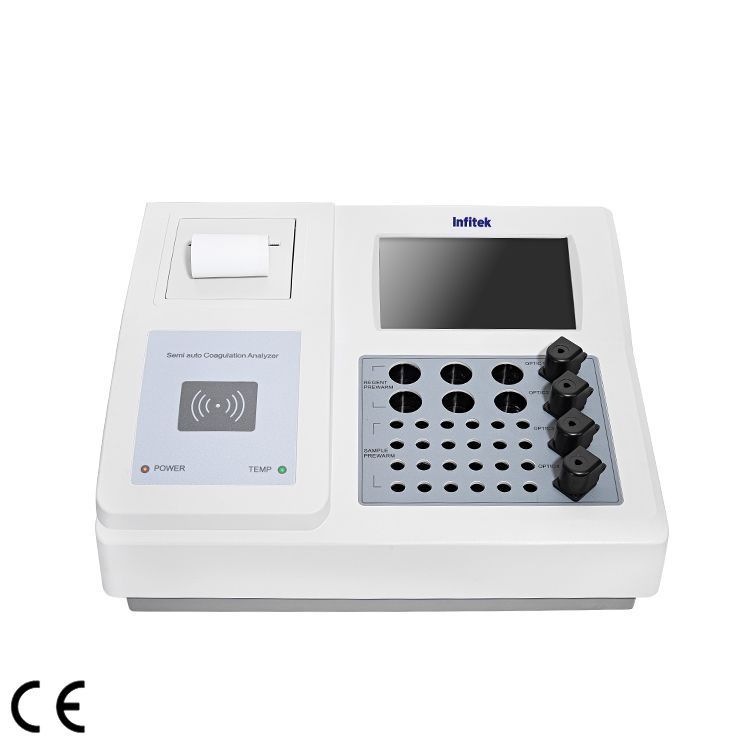

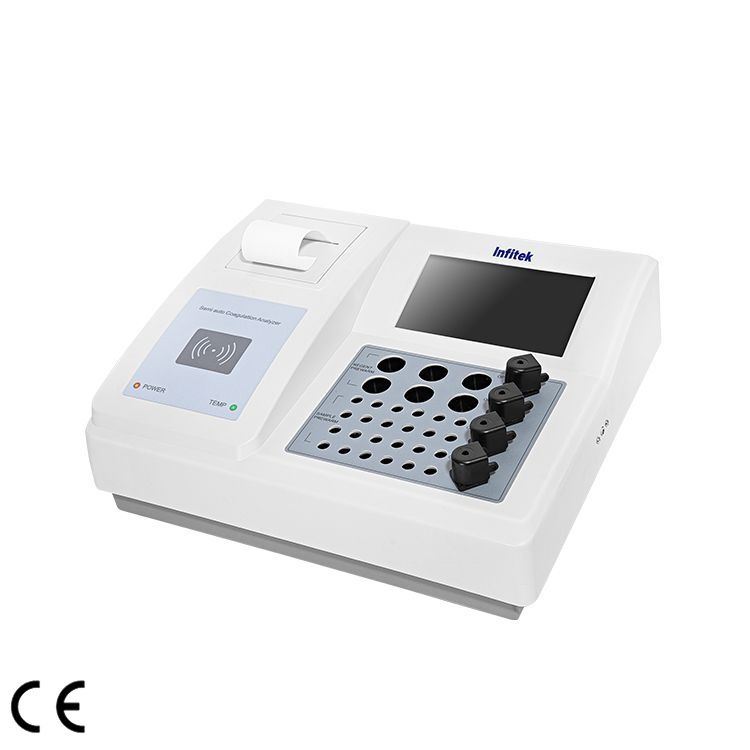

Semi-Auto Coagulation Analyzer, BCA-SA-4-24S
Description
- 7 inches color touch LCD screen.
- Thermostatic block at +37°C with four stirring systems
- Advanced scattered light principle and percentage analysis produce accurate results
- Special testing cup location system, adding sample bracket
- QC function with quality control curve and quality control report
- Calibration curve can be stored, Real-time curve can be stored and research
- Internal thermal-sensitive printer
- Memory for 10,000 testing results
- Optional PT derived method for fibrinogen, decease the dosage of reagent
- Test items such as PT 、APTT 、TT 、FIB and Clotting factors.
- RS232 interface, PC connected
- Open reagent system, close system can be optional
| Model | BCA-SA-4-24S |
| Testing channels | 4 channel, 4 different test in the same time |
| Sample hot position | 24 |
| Reagent hot position | 6 |
| Software timers | 4 |
| Stirring systems | 4 |
| Test wavelength | 405nm 、660nm |
| Sample consume | 50 、75 、100 uL |
| Reagent consume | 50 、75 、100 uL |
| Temp precision | 37±0.3℃ |
| Repeatability CV | ≤ 2% |
| Channel difference CV | ≤ 2% |
| Memory | 10000 test results |
| Format of Result | S, %, PTR, INR, g/L,mg/dL |
| Optional language | English, French, Spanish, Portuguese, Indonesian |
| Interface | USBx2, RS232x1 |
| Bar Code scanner | Bar Code scanner can be connected (Optional) |
| Power supply | 100-240V~50/60Hz |
| Altitude | ≤ 4500m |
| Dimension | 395mm(L) ×320mm(W)× 135mm(H) |
| Temperature | 15℃-30℃ wet ≤90% |
| Net Weight | 5 KG |
| Category | Title | File type/size | Download |
| Brochure | Brochure-Coagulation Analyzer | PDF(4 MB) | download |
