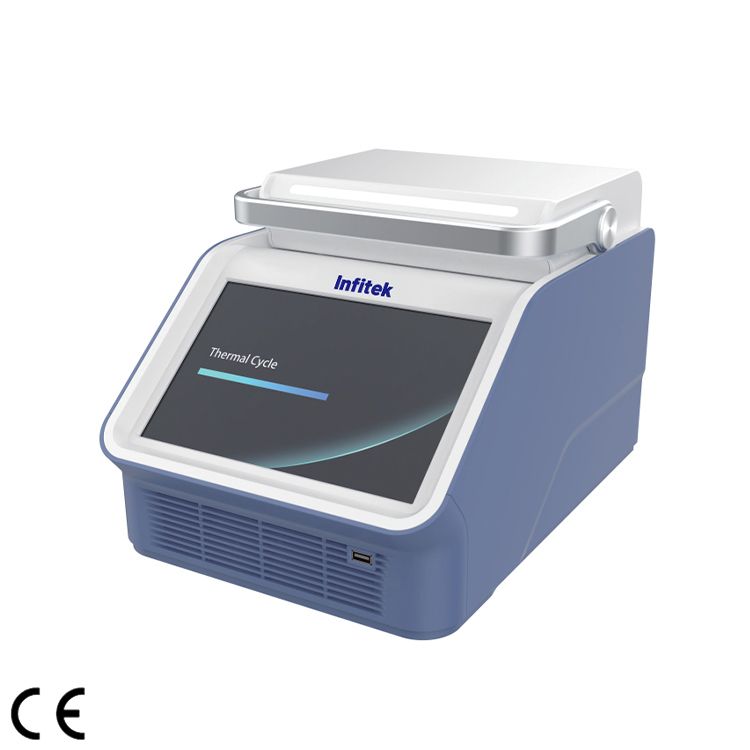

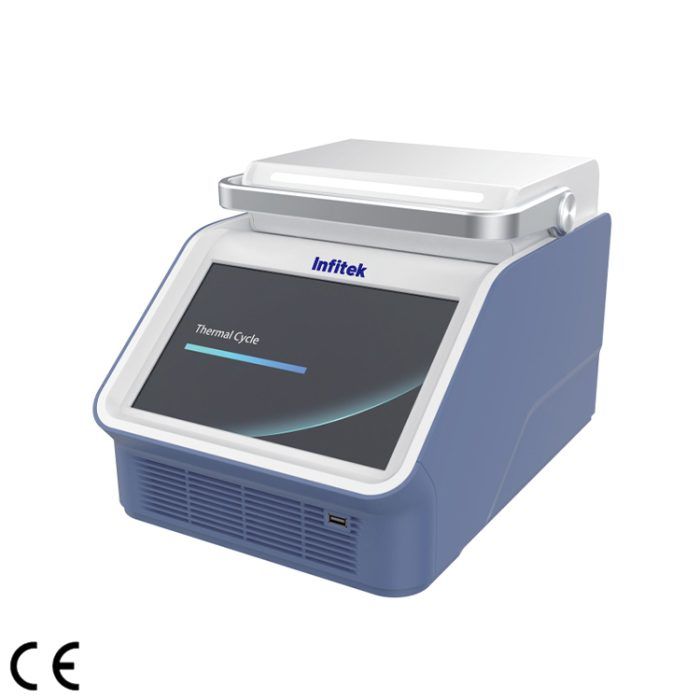

Thermal Cycler, PCR-96A

  • Sample Capacity: 96×0.2ml
  • Max. Ramping Rate: 8 ℃/s
  • Temp. Accuracy: ≤±0.1℃
  • Cycle Time: More than 1000,000
  • Support Mobile phone APP, USB2.0, WIFI

Share the product

Category:

Description

Thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life Peltier heating units and max. ramping rate is 8℃/S and cycle times is more than 1000,000. Wifi unit is built in and user can control many units of PCR through mobile App.

  • High heating and cooling rate, max. Ramping rate is 8 ℃/s
  • Automatic restart after power failure. When power is restored it can continue to run unfinished program.
  • One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
  • Android operation system and 10.1 inch capacitive touch screen.

Specifications

Model PCR-96A
Capacity 96×0.2ml
Tube 0.2ml tube, 8 strips, Half skirt 96 wells plate,
No skirt 96 wells plate
Temperature Range 0-105℃
MAX. Ramp Rate 5℃/s
Uniformity ≤±0.2℃
Accuracy ≤±0.1℃
Display Resolution 0.1℃
Temperature Control Block/Tube
Ramping Rate Adjustable 0.1-5℃
Gradient Temp. Range 30-105℃
Gradient Type Normal Gradient
Gradient spread 1-42°C
Hot Lid Temperature 30-115°C
Number of Programs 20000+(USB FLASH)
Max. No.of step 30
Max. No.of cycle 200
Time Increment/Decrement 1Sec-600 Sec
Temp.Increment/Decrement 0.1-10℃
Pause Function Yes
Auto Data Protection Yes
Hold at 4℃ Forever
Touchdown Function Yes
Long PCR Function Yes
Language English
Computer Software Yes
Mobile phone APP Yes
LCD 10.1 inch,1280×800 pels
Communication USB2.0, WIFI
Dimensions(L×W×H) 560mm×440mm×420mm
Weight 14Kg
Electricity 100-240VAC , 50/60Hz , 600 W
