- Single Beam
- Wavelength Range: 190-1100nm
- Wavelength Accuracy: ±0.5nm
- Data Output Port: USB
- 128*64 Dots LCD

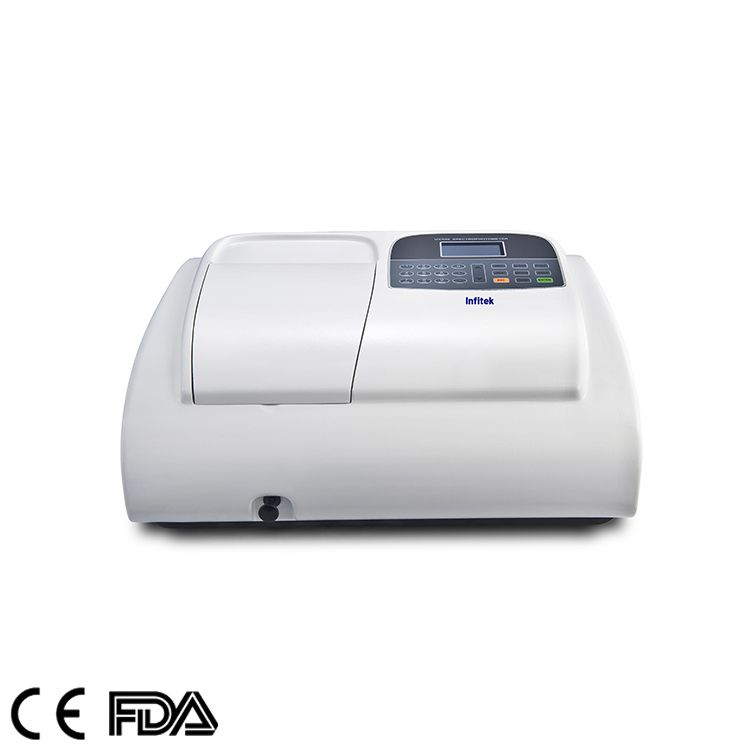

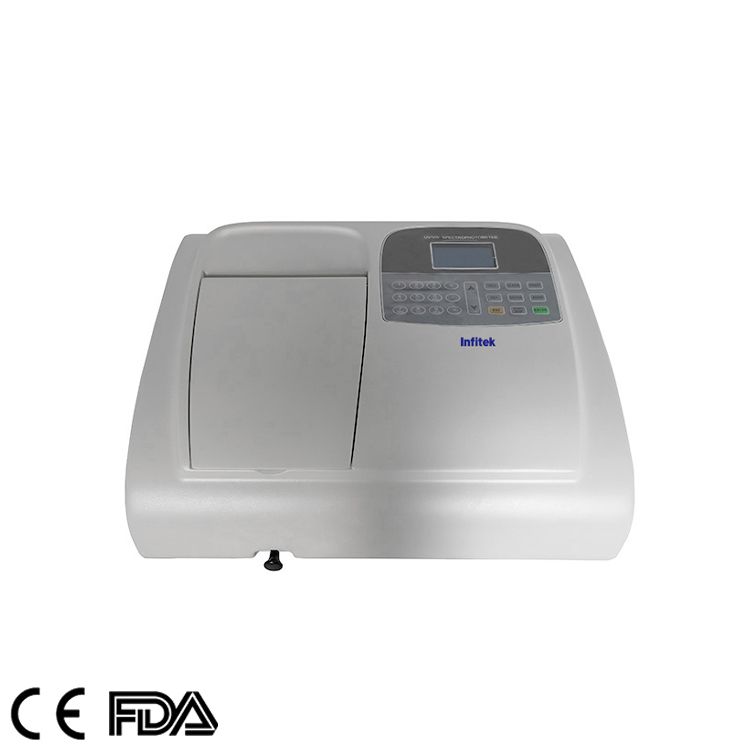

UV VIS Spectrophotometer, SP-MUV5600
Description
DESCRIPTION
DESCRIPTION
1 .Lead screw structure
The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.
2 .Imported high quality deuterium lamp
The UV instruments use imported flanged deuterium lamp with low stray light, pohotmetric accuracy and easy replacing.
3 .Standard curve
instruments can set up various standard curves according to customer’s solutions and find the concentration of unknown solutions.
SPECIFICATIONS
SPECIFICATIONS
| Model | SP-MUV5600 |
| Wavelength Range | 190-1100nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A,0-200%T,0-9999C |
| Stability | ± 0.002A/h @ 500nm |
| Baseline Flatness | ± 0.002A/h |
| Stray Light | ≤0.05%T@220nm,360nm |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 128*64 Dots LCD |
| Lamps | Tungsten Lamp & Deuterium Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Dimension | 460*360*225mm |
| Weight | 18kg |
Standard Accessories
| Item | Description | Quantity | Unit |
| 1 | Spectrophotometer | 1 | set |
| 2 | 1cm Glass cuvette | 4 | pcs |
| 3 | Power cord | 1 | pcs |
| 4 | User’s Manual | 1 | pcs |
| 5 | 1 cm quartz cuvette | 2 | pcs |
| 6 | Dust Cover | 1 | pcs |
