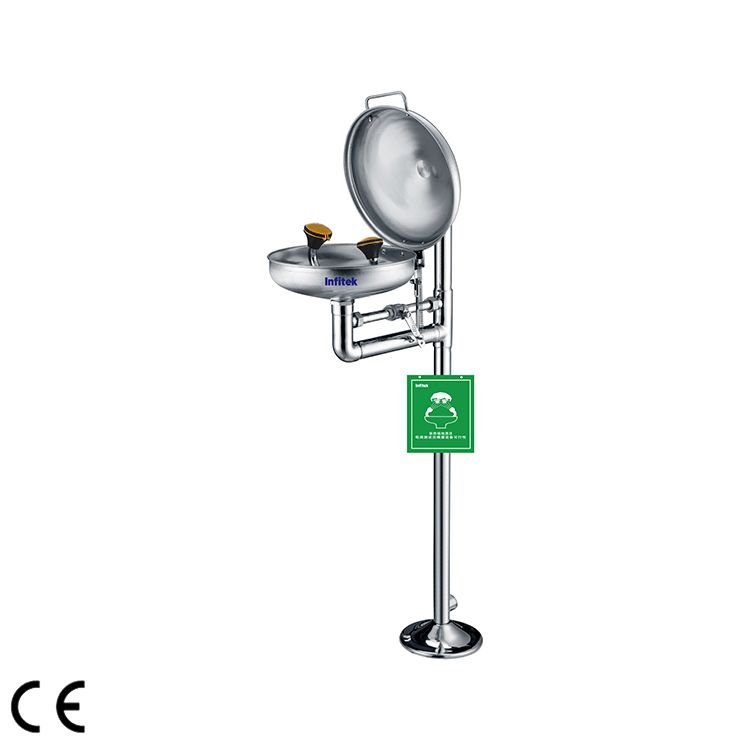

Vertical emergency eye wash, EEWS-315

  1. Pipe diameter: 38 mm
  2. Inlet height: 1065 mm
  3. Outlet height: 90 mm

Share the product

Category:

Description

  • The inlet part and outlet part are customizable
  • Shut off valve and filter are proposed to be equipped on the water-supply end

Specifications

Materials  SS304
Surface finishing  Fine polishing
Function  Eye and face washing
Switching ball valve  Two-piece ball valve
Stainless steel dust cover  Integrated cover, effective dust isolation
Pipe diameter  38mm
Nominal pressure  1.0Mpa
Working pressure  0.2~0.4Mpa
Test pressure  1.5Mpa
Working environment temperature  0°C~40°C
Eye wash/face wash water flow  ≥11.4 L/min
Flow of eye wash  ≥1.5 L/min
Eye wash bowl  300mm straight edge design, gather water, prevent splash
Dust cover  Integrated design of main body, not easy to lose
Inner size  Rp1” female
Outlet size  Rp1” female
Inlet height  1065mm
Outlet height  90mm
