- Pipe diameter: 48mm/38mm
- Inlet height: 780mm/753mm
- Outlet height: 108mm/86mm

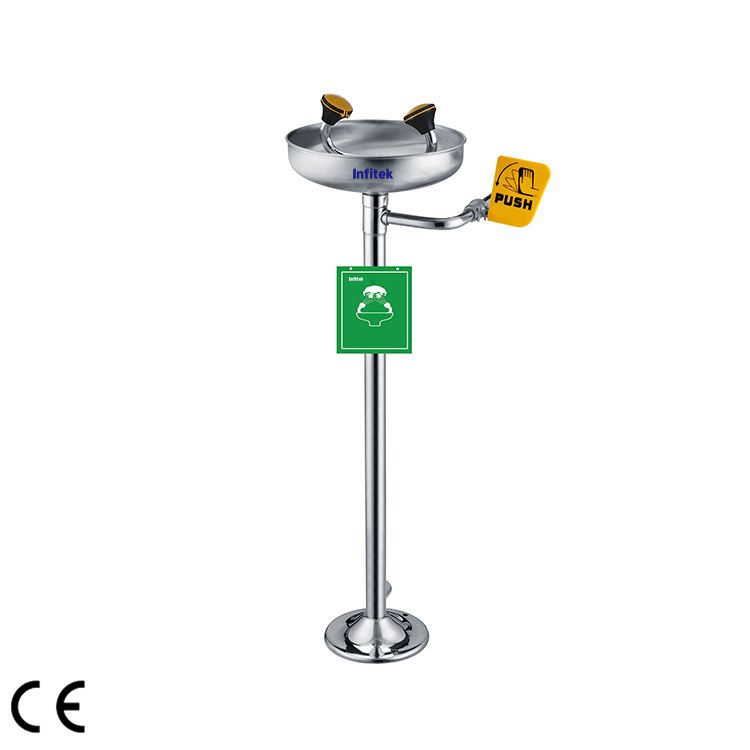

Vertical Emergency Eye Wash, EEWS-322
Description
Combination eye wash stations combine a shower and an eye wash in a single unit. The shower provides a full body wash down to prevent injury after being exposed to hazardous materials. The eye wash flushes irritants from eyes to treat and prevent eye injuries. These stations are used in labs, chemical plants, paper mills, and other environments where there are potentially harmful chemicals or materials. They allow fast emergency access when installed near areas where harmful chemicals or materials are being handled.
Specifications
| Model | EEWS-322 |
| Materials | SS304 |
| Surface finishing | fine polishing |
| Function | eye and face washing |
| Switching ball valve | two-piece ball valve |
| Pipe diameter | 48mm/38mm |
| Nominal pressure | 1.0Mpa |
| Working pressure | 0.2~0.4Mpa |
| Test pressure | 1.5Mpa |
| Working environment temperature | 0°C~40°C |
| Eye wash/face wash water flow | ≥11.4 L/min |
| Flow of eye wash | ≥1.5 L/min |
| Eye wash bowl | 300mm straight edge design, gather water, prevent splash |
| Dust cover | integrated design of main body, not easy to lose |
| Inner size | G1/2” male |
| Outlet size | Rp1-1/4” female |
| Inlet height | 780mm/753mm |
| Outlet height | 108mm/86mm |
| Package Dimension (W*D*H) (mm) | 800*380*170 |
| G.W.(kg) | 6.5 |
| Product features | After the use of eye wash and face wash is stopped,
the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing. |
