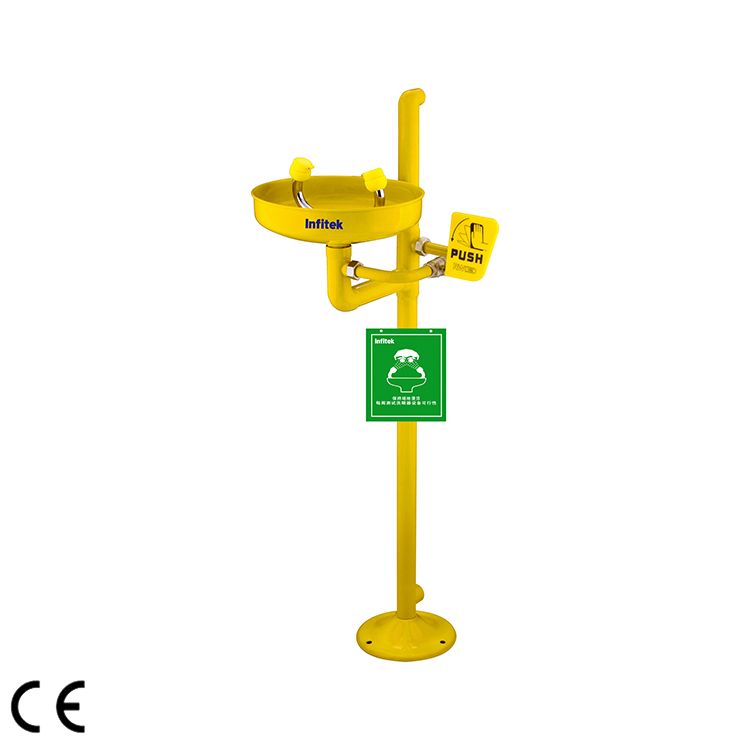

Vertical Emergency Eye Wash, EEWS-322A

  1. Pipe diameter: 38 mm
  2. Inlet height: 753 mm
  3. Outlet height: 86 mm
  4. Automatic emptying after use

Share the product

Category:

Description

  • After the use of eye wash and face wash is stopped, the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing.
  • The inlet part and outlet part are customizable
  • Shut off valve and filter are proposed to be equipped on the water-supply end.

Specifications

Materials  SS304
Surface finishing  High brightness epoxy coating
Function  Eye and face washing
Switching ball valve  Two-piece ball valve
Pipe diameter  38mm
Nominal pressure  1.0Mpa
Working pressure  0.2~0.4Mpa
Test pressure  1.5Mpa
Working environment temperature  0°C~40°C
Eye wash/face wash water flow  ≥11.4 L/min
Flow of eye wash  ≥1.5 L/min
Eye wash bowl  300mm straight edge design, gather water, prevent splash
Dust cover  Integrated design of main body, not easy to lose
Inner size  G1/2” male
Outlet size  Rp1” female
Inlet height  753mm
Outlet height  86mm
