- 1-2 rows, 1-12 holes
- Volume: 3.3 L – 35.4 L
- Range: RT.-99.9℃
- Temperature Fluctuation: ±5℃
- Timing Range: 0~ 999minutes(optional)

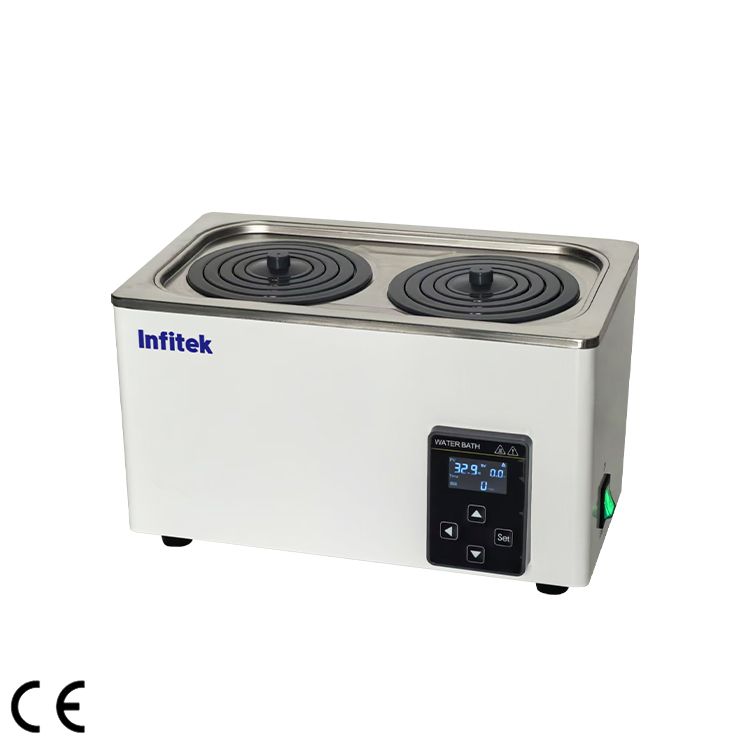

Water Bath, WB-S Series
Description
It is designed for use in distilling, drying, concentrating and heat soaking chemicals or biological products.
- Easy to operate and safe to use.
- The outer shell is made of high-quality steel plate.
- Good temperature uniformity, high temperature resistance and corrosion resistance.
- PID program

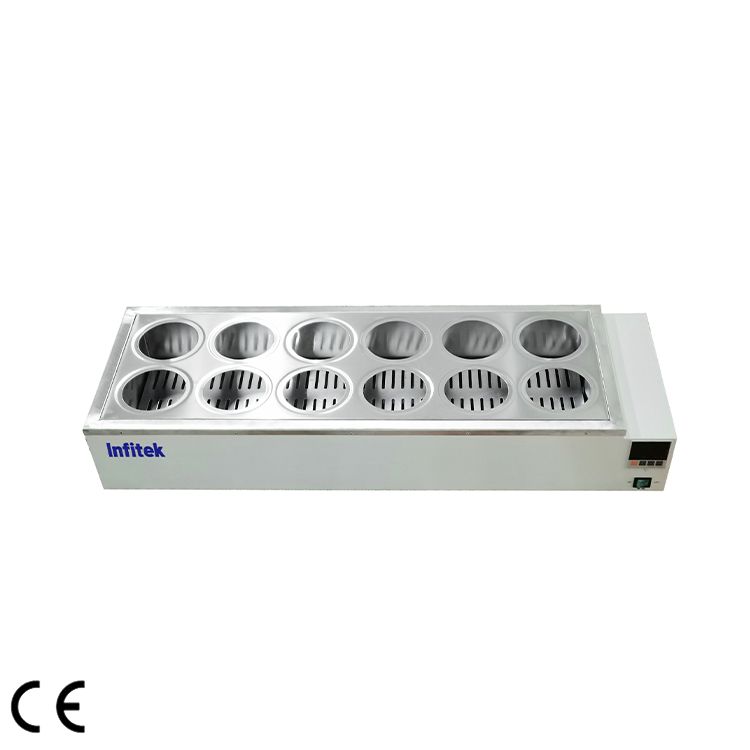

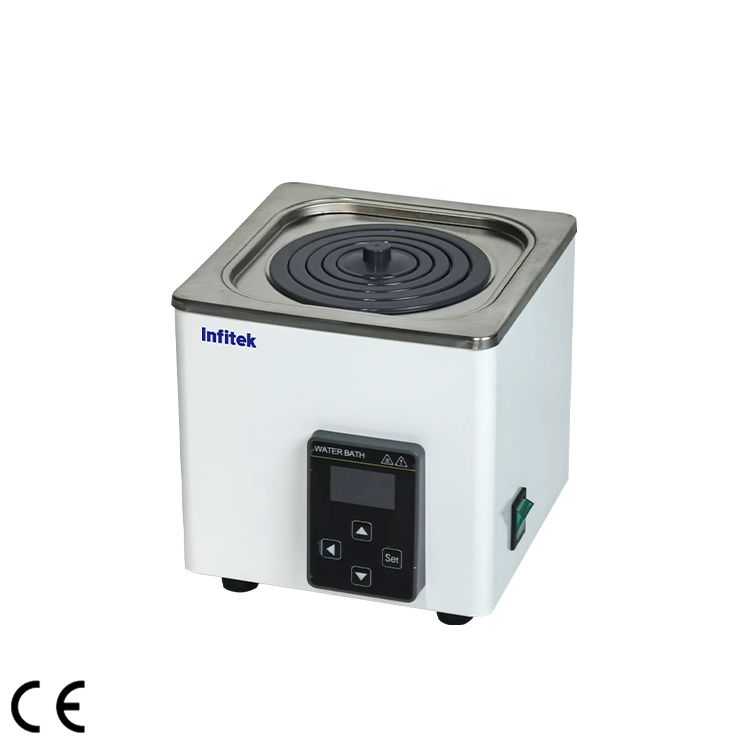

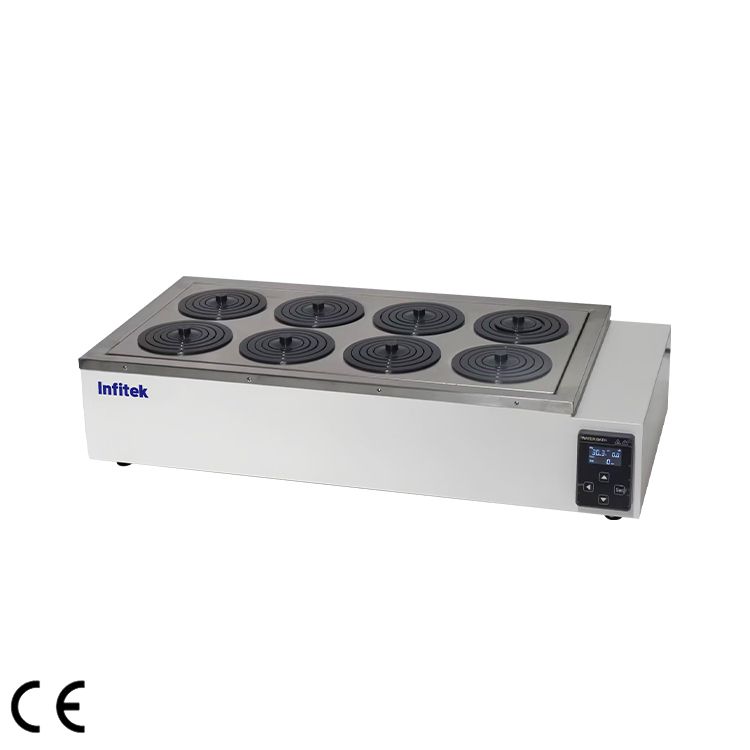

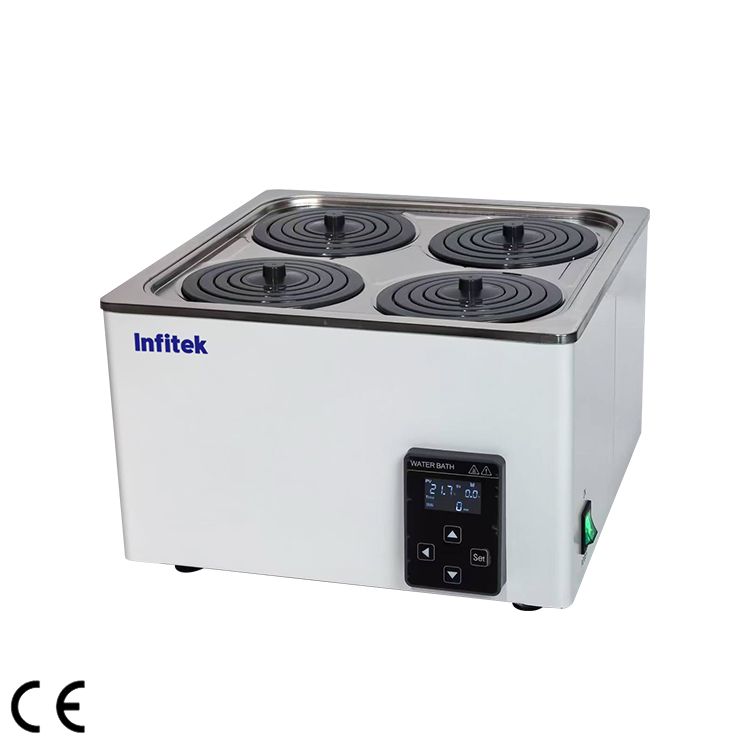

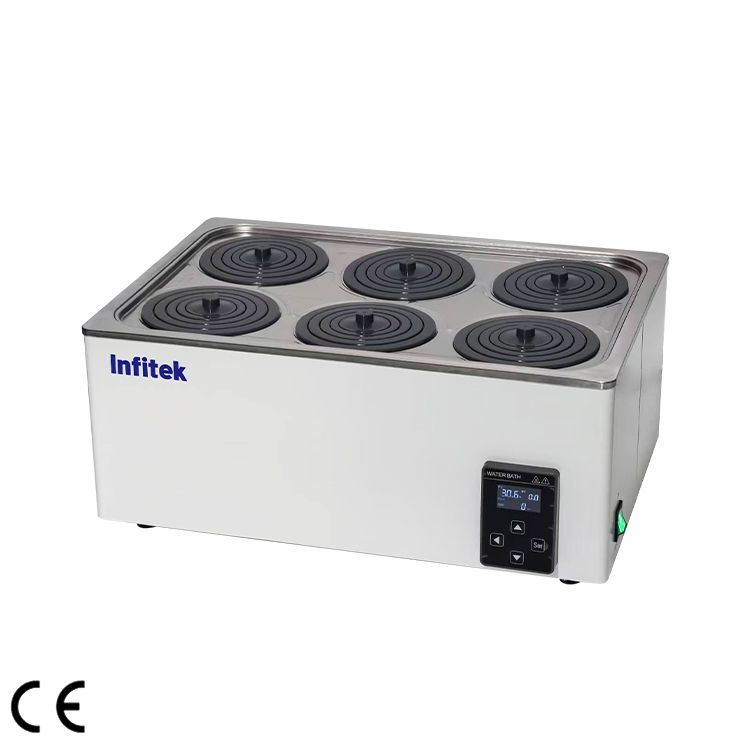

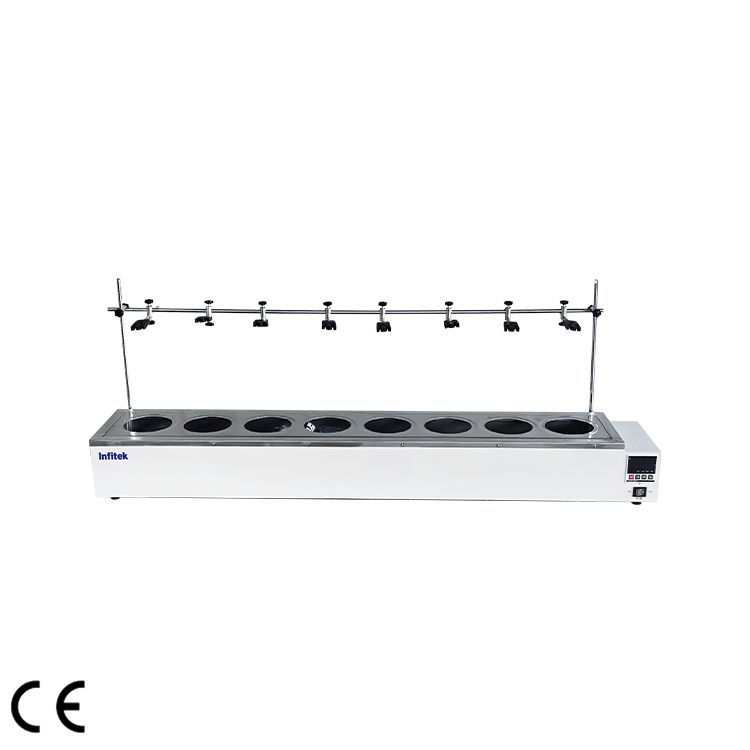

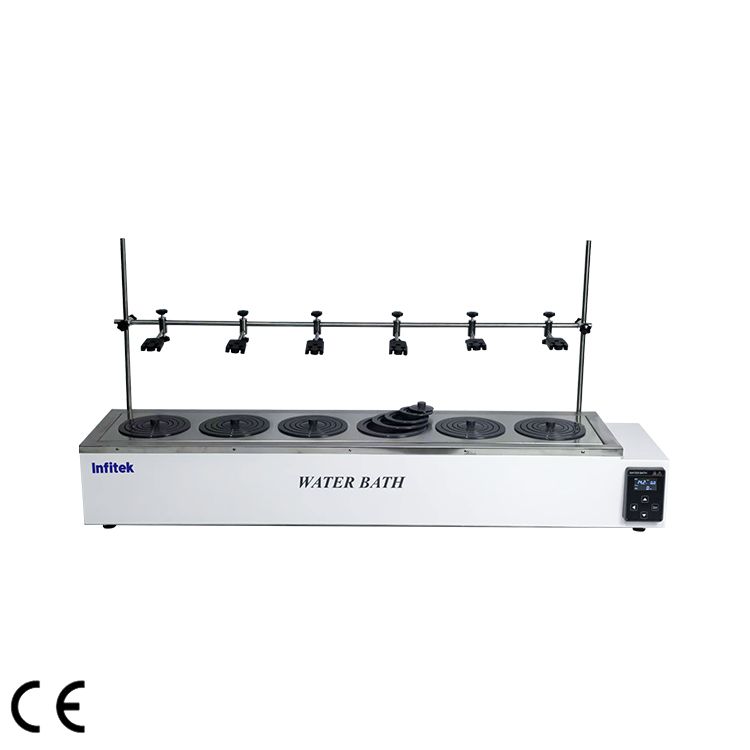

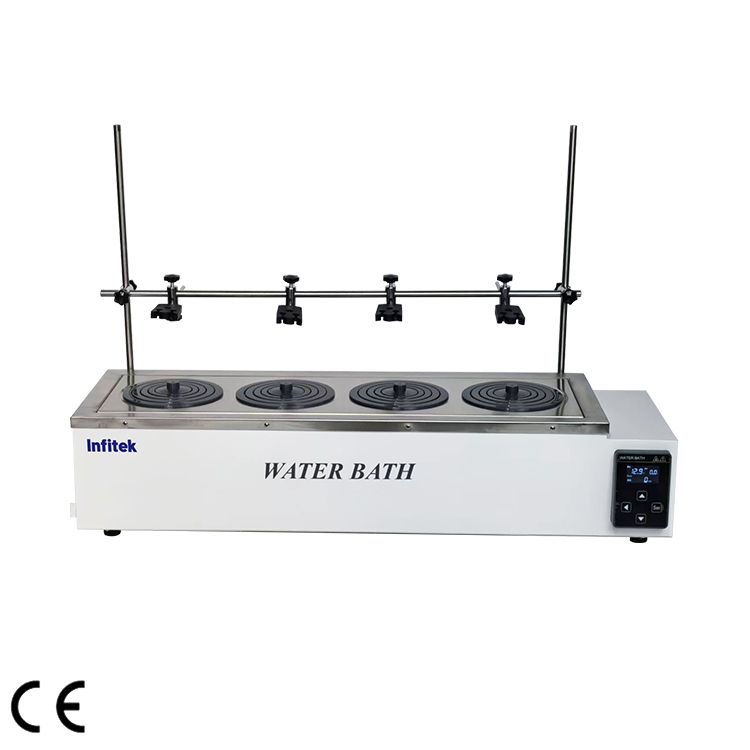

| Model | WB-S1 | WB-S2 | WB-S11.4 | WB-S11.6 | WB-S11.8 | WB-S4D | WB-S6D | WB-S8D | WB-S12D | |||||||
| Classification Specification | 1holes | 2holes | 4holes | 6holes | 8holes | 2row&
4holes |
2row&
6holes |
2row&
8holes |
2row&
12holes |
|||||||
| Tank material | 304 stainless steel
（one-piece seamless integrally formed tank） |
304 stainless steel | 304 stainless steel
（one-piece seamless integrally formed tank） |
304 stainless steel | ||||||||||||
| Cover | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | |||||||||||||||
| Display | LCD display | LED display | LCD display | LED display | ||||||||||||
| Available Diameter (D) | 120 | 120 | 120 | 120 | ||||||||||||
| Available Height (H) | 110 | 90 | 110 | 90 | ||||||||||||
| Power (W) | 300 | 500 | 1200 | 1800 | 2200 | 1000 | 1500 | 2000 | 3000 | |||||||
| Working Chamber（mm） | 160*160*140 | 300*160*140 | 610*160*130 | 900*160*130 | 1200*160*130 | 300*300*140 | 470*300*140 | 610*300*130 | 910*300*130 | |||||||
| volume（L） | 3.3 | 6.7 | 12.6 | 18.7 | 24.9 | 12.6 | 19.7 | 23.7 | 35.4 | |||||||
| Temperature Range (℃) | RT.-99.9 | |||||||||||||||
| Temperature Fluctuation (℃) | ±0.5 | |||||||||||||||
| Timing Range
( minutes ) |
0~ 999 | |||||||||||||||
| Electricity | 220V±10%, 50/60Hz;
110V,60Hz (Optional) |
|||||||||||||||
| External Dimension（mm） | 200*200*220 | 345*210*220 | 770*230*170 | 1060*230*170 | 1380*250*170 | 345*345*220 | 500*340*220 | 770*370*170 | 1060*370*170 | |||||||
| N.W./G.W.(kg) | 2/3 | 4/5 | 10/11 | 13/14.5 | 18/20 | 6.5/7.5 | 9/10 | 12/13 | 17/19 | |||||||
| Shipping Dimension（mm） | 260*260*280 | 400*260*280 | 830*300*230 | 1150*300*230 | 1460*300*230 | 400*400*280 | 600*400*280 | 830*460*230 | 1150*430*230 | |||||||
Note：
- D-available diameter of the opening without rings and cover.
- H-available height from the baffle board to the level of the openings.
