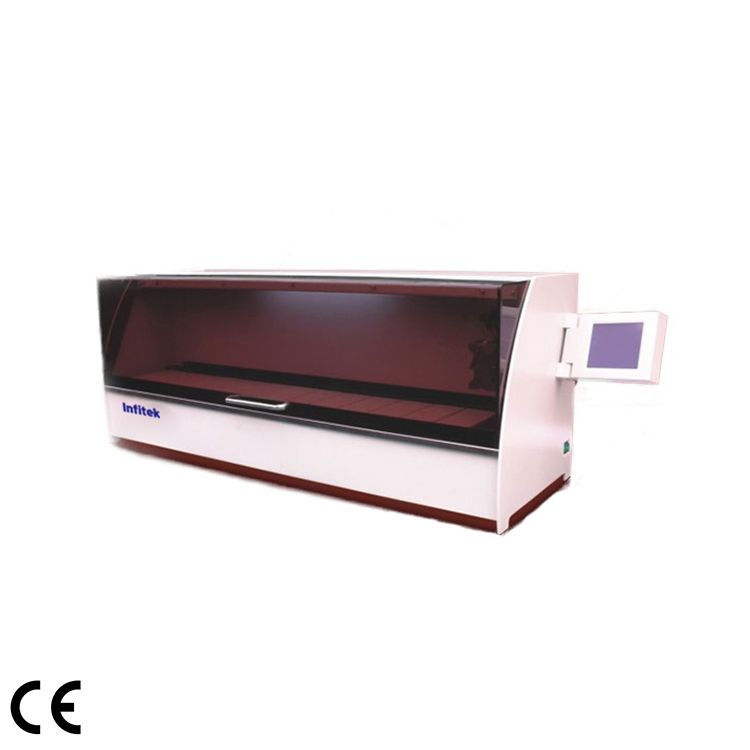

Automated Tissue Processor, TSP-3C

  1. Number of Cups: 12
  2. Capacity of Single Cup: 2000 ml
  3. Basket capacity: 150 pcs
  4. Frequency of Agitation: Adjustable 0-6 times/minute
  5. Temperature Range: RT – 80℃ ±1℃

Share the product



  1. Interated high-quality LCD screen with intuitive bilingual (Chinese/English) software
  2. Fully intelligent design, enabling timely determination and automatic recovery from an abnormal event
  3. Real-time visual simulation with icons displays working status dynamically, clearly and intuitively
  4. Green inner-cycling air purification system, well-sealed gas-effluxion mechanism
  5. This system can be automatically started at any time as programmed
  6. Processing duration is automatically calculated and displayed on the screen
  7. 20 editable programs can be stored in the system
  8. Manual adjustment can be conducted anytime during the programmed automatic operation. afterwards, the system automatically enters the programmed operation
  9. Automated fan control: Stays on all the time when the specimens are not submerged in cup and 10 seconds every minute when the specimens are submerged in cup and processing
  10. Automated light control
  11. Internal dry heating mechanism with high-precision temperature control. Automatically determines the time of heating for energy efficiency
  12. Low-energy-consuming control circuit with power protection function
  13. Battery backup with more than 30 hours of running power
  14. Approximately 150 tissue samples can be processed at the same time


Number of Cups  12 (The 1st to 9th stations for reagents and the 10th to 12th stations for paraffin melting)
Capacity of Each Cup  2000 ml
Temperature Range  RT – 80℃
Temperature Control Precision  ±1℃
Length of Processing Time in the Cup  Any length for the first cup (Extended Time), Any length between 0 and 24 hours for the 2nd to 12th cup
Dripping Time  Adjustable between 10s and 60s; shake/drip function above cup
Frequency of Agitation  Adjustable within 0 – 6 times/minute
Tissue Protection Station  any station from the 1st to 7th station as preset
Working Voltage  AC220V±10% 50Hz (standard model)AC110V±10% 60Hz
Power  500 W
Dimensions  1170×465×535mm (W×D×H)
Net weight  85kg
