- Number of Cups: 12
- Capacity of Single Cup: 1000ml, 1800ml
- Processing Steps: 12 steps
- Frequency of Agitation: ≥10 times/H, 30 sec each time
- TSP-6B, Equipped with a vacuum pump

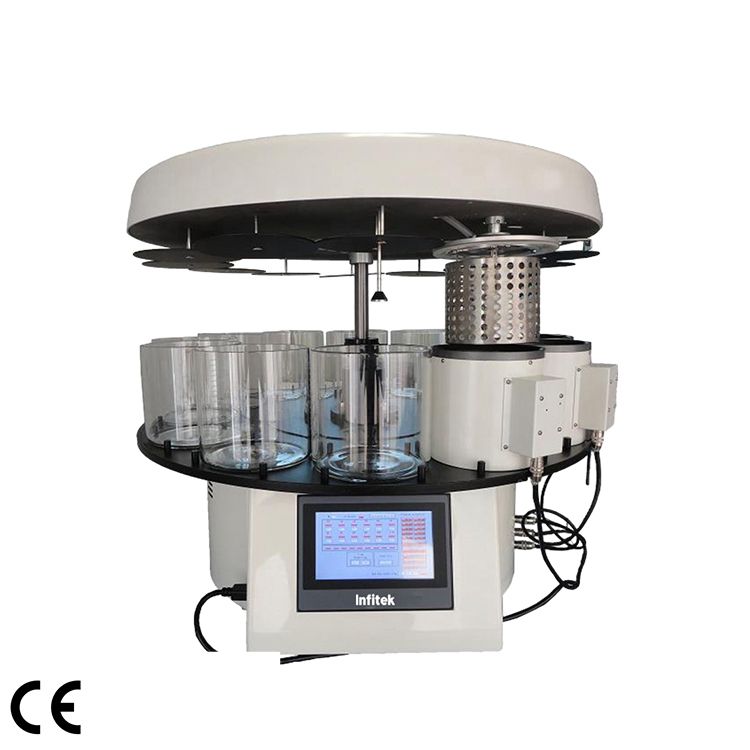

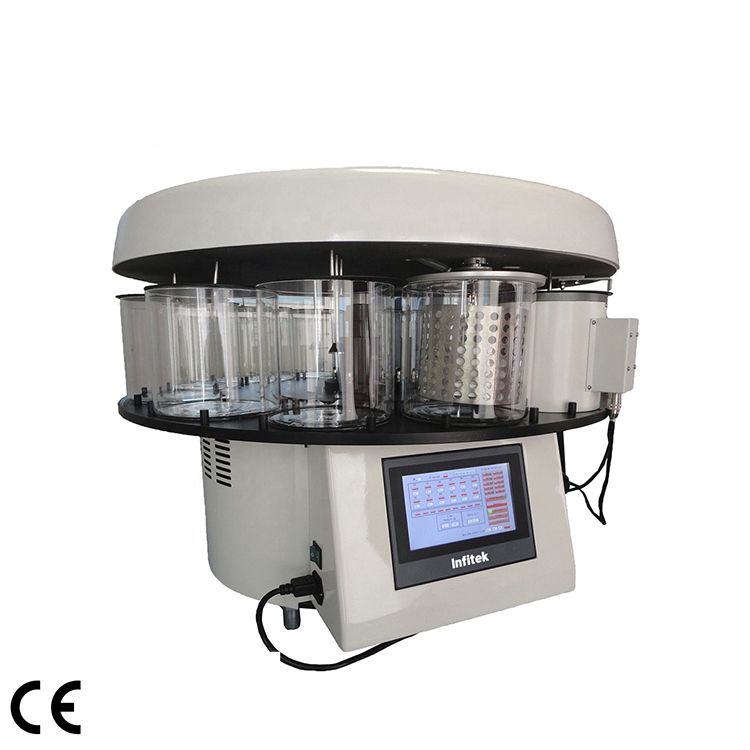

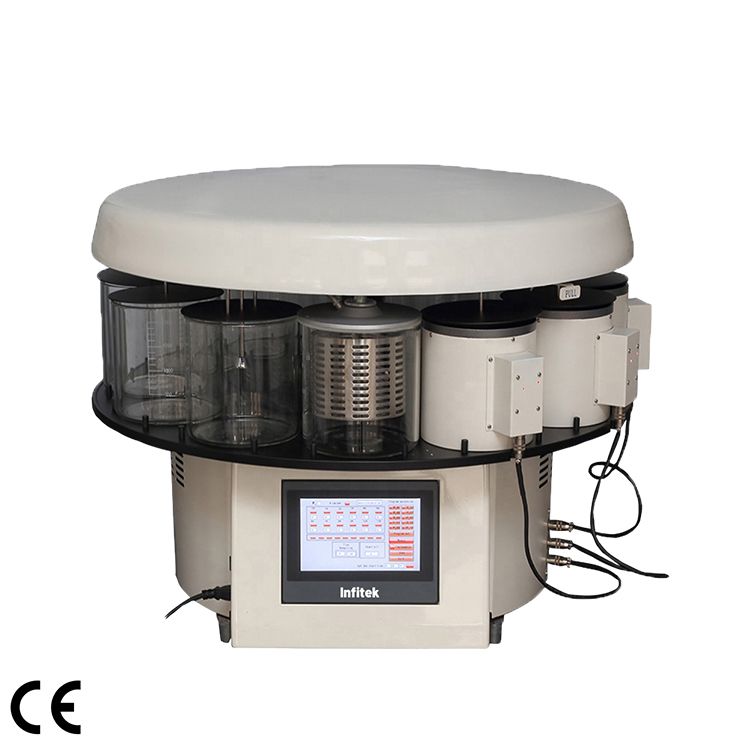

Automated Tissue Processor, TSP-6A/TSP-6B
Description
TSP-6A/6B Automated Tissue Processor is an advanced microprocessor-controlled tissue-processing device. Due to its ideal ergonomic design, reasonable structure, easy operation, prompt processing, and high QPR, this device is an ideal choice for human or animal/plant tissue dehydration in pathology laboratory of hospitals, colleges/universities, and research institutes.
- Entire operation process controlled by PLC through 7-inch color LCD touch screen, sensitive touch response, clear display, simple operation, reliable and stable
- Tissue specimen basket can be placed in a cup at any station by a mechanical arm, flexible and easy to operate
- Multiple safety protection mechanisms including power failure alert and operation error protection
- One-button intelligent automatic tank finding, allows placing tissue in any tank position
- Stirring during dehydration process ensures adequate contact of tissue with reagents and paraffin to improve dehydrtion performance
- Temperature of paraffin cup is precisely controlled by a constant temperature control system and the inner surface of the cup is TEFLON-coated, contamination-resistant, and corrosion-resistant
- There are nine 2.3-L medical glass beakers are used as processing cups, allowing clear observation of tissue changes during the operation
- To enhance dehydration strength, this device is equipped with a vacuum pump. Other than paraffin cups, optional vacuum-assisted dehydration of all cups can be individually preset (TSP-6B)
Specifications
| Model | TSP-6A | TSP-6B |
| Tissue Processing Steps | 12 steps | |
| Number of Reagent Cups | 9, with a volume of 2.3L | |
| Number of Paraffin Cups | 3, with a volume of 1.8L | |
| Temperature Range | 56-86℃ (±1℃) | |
| Dehydration basket capacity | about 80 dehydration boxes | |
| Program | Duration in each cup; 0-10 hours (10 programs) | |
| Maximal turn-on delay | 1 month | |
| Minimum time interval setting | 1 min | |
| Frequency of basket stirring | ≥10 times/hour, 30 sec for each time | |
| Vacuum Degree | / | 0.053MPa |
| Power | 1000W | |
| Size of Basket | Φ95×80mm; | |
| Dimensions | 670 (Diameter)× 550 (Height, 680 mm at the highest point) | |
| Package Dimension (W*D*H)(mm) | 1210*920*820mm | |
| Working Voltage | AC 220V±10% 50Hz (standard model), an additional converter is needed for 110V | |
| Net Weight | 60kg | |
| G.W.(kg) | 175Kg | 174Kg |
