- Number of Cups: 12
- Capacity of Single Cup: 700 ml
- Basket capacity: 40 pcs
- Frequency of Agitation: 2 times/minute
- Temperature Range: RT – 80℃

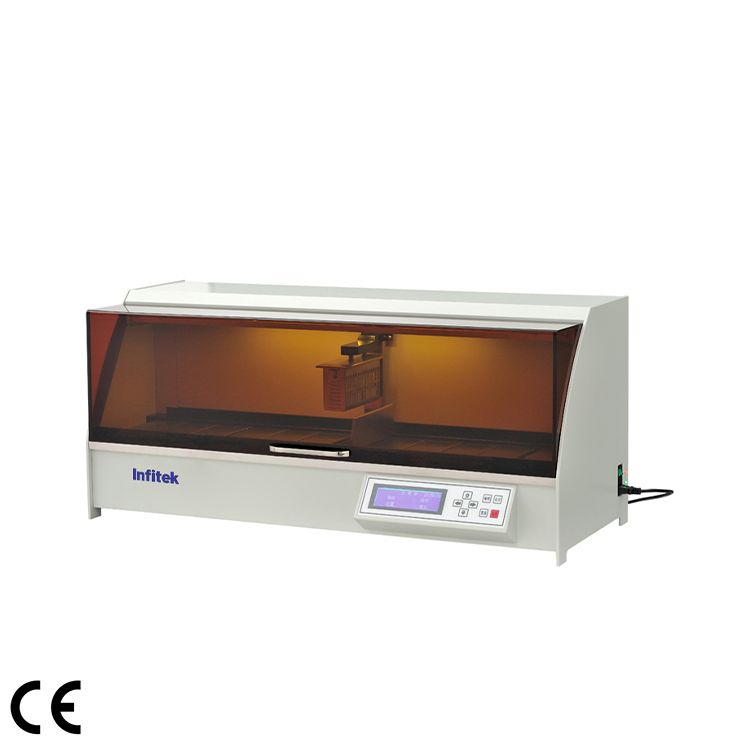

Automated Tissue Processor, Mini-type, TSP-1
Description
- APS-coated, streamline-design, sturdy housing with high resistance to corrosion
- Economical, reagent saving, practical design with small footprint and low cost
- Single-chip computer control technology allows a complete set of functions
- Well-sealed plexiglass cover with gas-effluxion mechanism, environmentally friendly and safe
- Not affected by short blackouts or power outages during operation
- Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation
- Internal dry heating mechanism with high-precision temperature control
- Two-dimensional, flexible transmission system, low noise, wear-resistant
- High-precision photoelectric positioning control system to ensure reliable operation and precise positioning
- Fully intelligent design, enabling timely determination and recovery from an abnormal event
| Model | TSP-1 |
| Number of Cups | 12 (9 for reagents, 3 for paraffin) |
| Capacity of Each Cup | 750 ml |
| Dehydration basket capacity | 168*30*80 (mm) (40 dehydration cassettes) |
| Single tank processing time | |
| First tank | Adjustable from 0~99 hours 59 minutes |
| Other tanks | Adjustable from 0~23 hours 59 minutes |
| Wax tank temperature control range | RT – 80℃ |
| Programmable settings | 20 sets. |
| Temperature Control Precision | ±1℃ |
| Drainage time | Adjustable from 10~60 seconds, increment of 10 seconds.shake/drip above cup |
| Stirring frequency | Adjustable from 0-6 times/minute |
| Tissue protection tanks | Adjustable from 1~7 tanks |
| Working Voltage | AC220V±10% 50Hz (standard model) AC110V±10% 60Hz |
| Power Requirements | 500 W |
| Dimensions | 795×435×415 mm (W×D×H) |
| Weight | 50kg |
| Package Dimension (W*D*H)(mm) | 940*550*660 |
| Category | Title | File type/size | Download |
| Brochure | Brochure – Tissue Processor | PDF(377 KB) | download |
