- Number of Cups: 12
- Capacity of Single Cup: 1000 ml
- Basket capacity: 50 pcs
- Frequency of Agitation: 2 times/minute
- Temperature Range: RT – 99℃

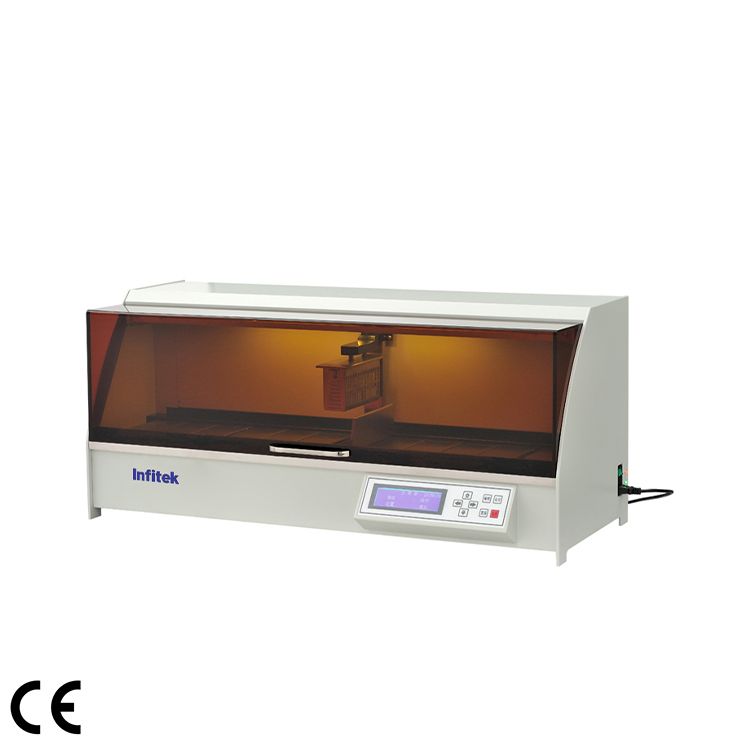

Automated Tissue Processor, TSP-3
Description
- Fully intelligent design, enabling timely automatic determination and recovery from an abnormal event
- Imported LCD display, real-time display of working status, clear display
- Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation.Convenient for mid-operation inspection or adding specimens.
- Green inner-cycling air purification system to efficiently adsorb, and remove, poisonous gas
- Imported high-quality parts, smooth operation, low noise, ergonomic design
- Waterless intelligent heating control, reduces standby power consumption, high temperature control accuracy
| Number of Cups | 12 (nine cups for reagents and three cups for paraffin) |
| Dehydration basket capacity | 150*48*82 (mm) (60 dehydration cassettes) |
| Capacity of Single Cup | 1000ml |
| Single tank processing time | |
| First tank | Adjustable from 0~99 hours 59 minutes |
| Other tanks | Adjustable from 0~23 hours 59 minutes |
| Wax tank temperature control range | RT ~80°C adjustable |
| Programmable settings | 20 sets. |
| Temperature Control Precision | ±1℃ |
| Drainage time | Adjustable from 10~60 seconds, increment of 10 seconds; shake/drip above cup |
| Stirring frequency | Adjustable from 0-6 times/minute |
| Tissue protection tanks | Adjustable from 1~7 tanks |
| Acceptable Temperature Range of Operation Environment | 0 ~ 40℃ |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 500W |
| Dimensions | 1010×420×450 mm (W×D×H) |
| Net weight | 67 kg |
| Category | Title | File type/size | Download |
| Brochure | Brochure – Tissue Processor | PDF(377 KB) | download |
