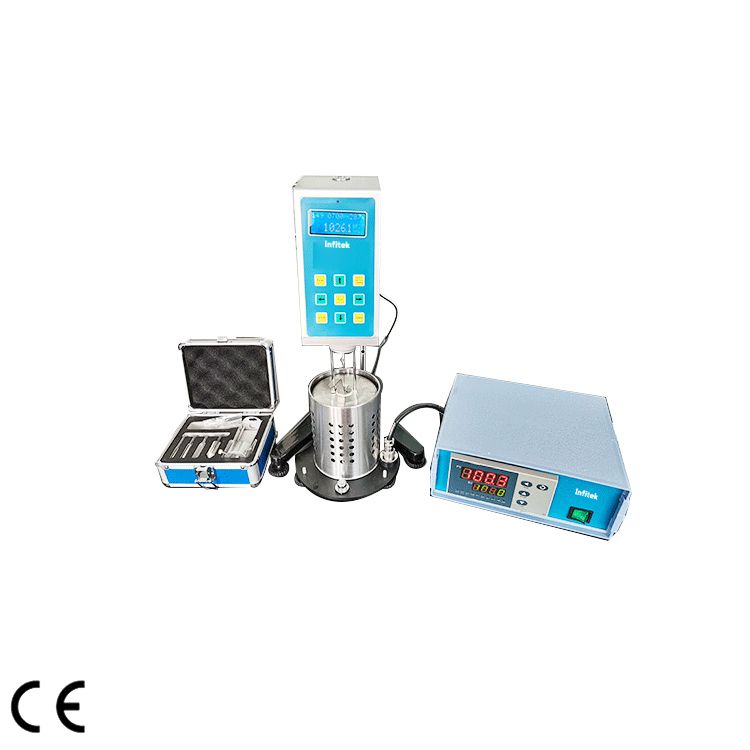

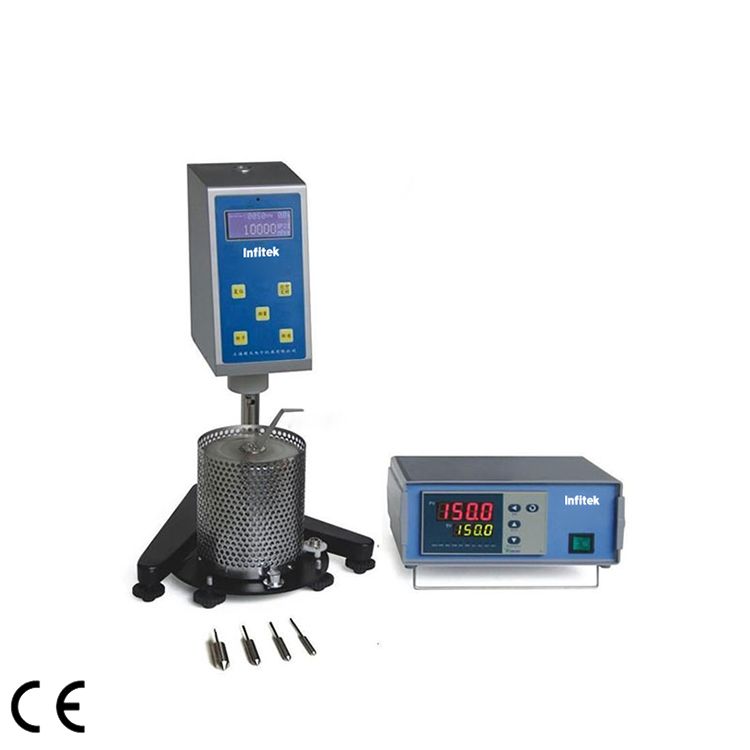

Digital Viscometer, VSC-H Series

  1. Measuring Range (mPa·s) : 5~80,000,000
  2. Rotating Speed (RPM): 0.1~200(Stepless Gear), 5~100
  3. Temperature control range: 10℃ above ambient~300℃
  4. Number of spindle: 4
  5. Sample capacity: 10-20ml

Share the product

Category:

Description

  1. The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax and so on.
  2. The measured data can be displayed directly on the LCD screen without secondary calculation. can also be selected to realize data acquisition and analysis and to compile the viscosity-temperature curve.
  3. High subdivision stepper motor, accurate and stable speed.
  4. LCD liquid crystal with blue backlight function can directly display the viscosity, speed, percentile torque, spindle number and the maximum viscosity and temperature of the selected spindle at the current speed. Viscosity value shows continuous change, beyond the measurement range there is an alarm sound prompt.
  5. The measuring performance of the instrument has reached the level of the same type of products abroad through computer correction accuracy.
  6. High-temperature furnace uses embedded integral heating, uniform heating and small thermal inertia.​
Optional-matching-Thermostatic-baths Optional matching Thermostatic baths

A-LC1008

Refrigerant, environmentally friendly R134a
Packing weight: 28kg
Size: 586*485*495mm

A-RC0508

Packing weight: 20.5kg
Size: 586*485*495mm

Specifications

Model VSC-H VSC-HA VSC-H1 VSC-H2
VSC-H1-1 VSC-H1-2 VSC-H1-3 VSC-H2-1 VSC-H2-2 VSC-H2-3
Measuring Range(mPa·s) 50~200,000 50~10,000,000 10~1,000,000 100~1,0000,000 800~80,000,000 5~1,000,000 50~10,000,000 400~80,000,000
Rotating Speed (RPM) 5, 10, 20, 50, 100 0.1~200 (Stepless Gear) 0.1~99.9(Stepless Gear) 0.1~200 (Stepless Gear)
Measuring method Manual measurement Manual and automatic measurement Manual measurement
Number of Spindles Spindles (Code21, 27, 28, 29) are equipped with the product
Accuracy ±1% full scale range in use
Repeatability ±0.5% full scale range in use
Sample capacity(m L) 10~20
Temperature control range(℃) 10℃ above ambient~300℃
Power Power adapter (input: 220V 50Hz)
LCD screen display Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity

can be measured in the current spindle speed value.The temperature controller: Display setting temperature and

actual measuring temperature。

Pakage Size(mm) 2 boxes size:400*350*360, 400*350*550
Total Weight(kg) 15kg
