- Measuring Range (mPa·s) : 20~2,000,000
- Rotating Speed: 4/8 adjustable speed, 0.3-60 RPM
- Number of spindle: 4

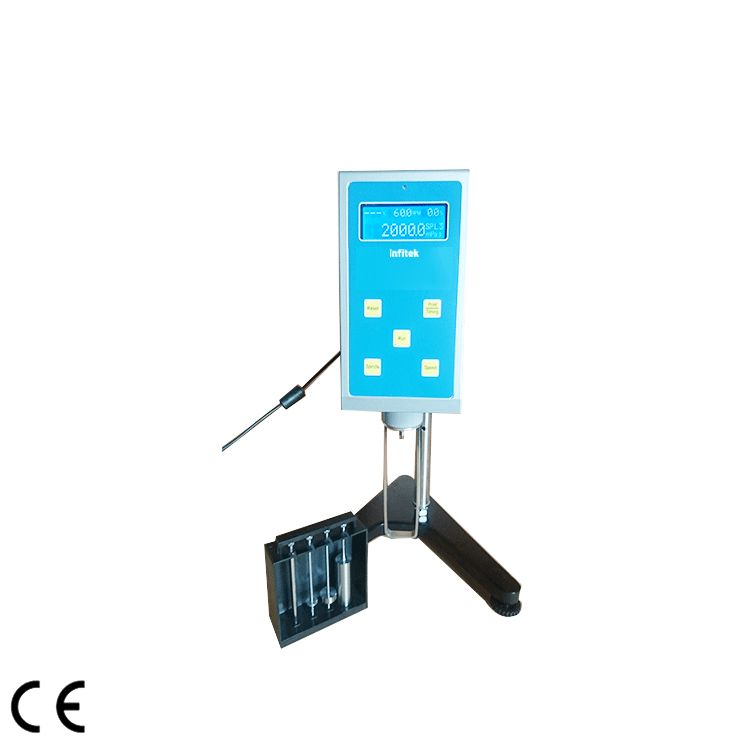

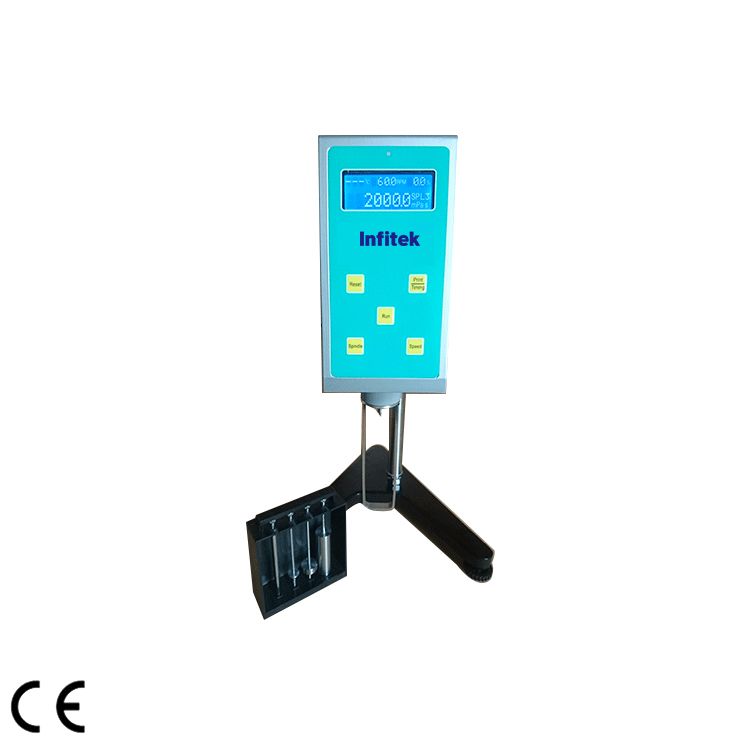

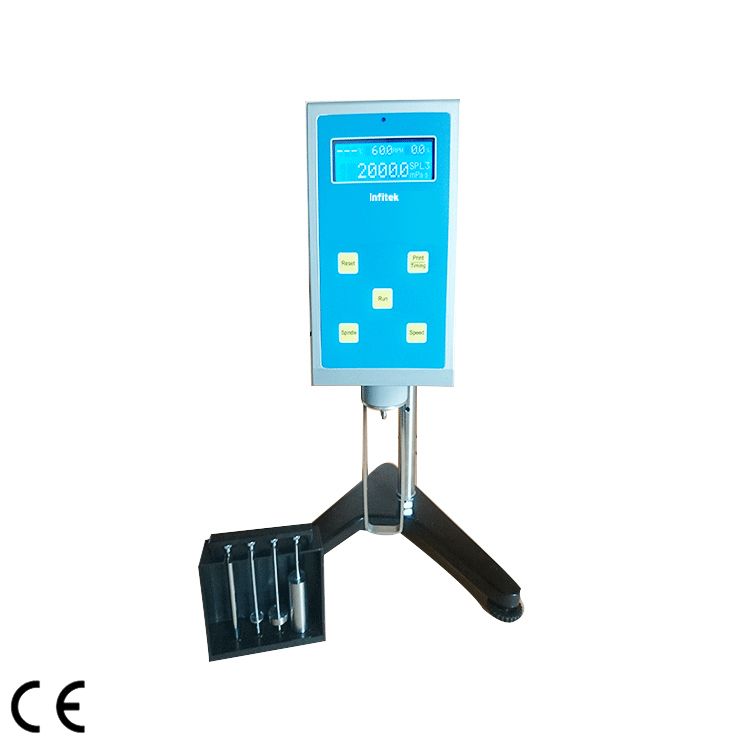

Digital Viscometer, VSC-N Series
Description
1. Using 16-bit microprocessor core control circuit
2. The blue screen LCD digital display directly displays the viscosity, speed, torque of the percentage meter, rotor number and the maximum viscosity value of the selected rotor that can be measured at the current speed.
3. VSC-N4 can set the measurement timing function, the button is eye-catching, the speed is stable, and the measurement is accurate
 |
Optional matching Thermostatic baths
A-LC1008 Refrigerant, environmentally friendly R134a A-RC0508 Packing weight: 20.5kg |
Specifications
| Model | VSC-N1 | VSC-N4 | VSC-N5 | VSC-N8 |
| Measuring Range（mPa·s） | 20~100,000 | 20~2,000,000 | 20~100,000 | 20~2,000,000 |
| Rotating Speed(RPM) | Four adjustable speed: 6, 12, 30, 60 | Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | Four adjustable speed:6, 12, 30, 60 | Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product | |||
| Accuracy | ±5% relative error | ±1% full scale range in use | ||
| Return Capacity | ±1% relative error | ±0.5% full scale range in use | ||
| Power | Power adapter (input: 100-240V，50/60Hz) | |||
| LCD screen display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | |||
| Package Dimension (W*D*H)(mm) | 420*370*400 | |||
| Weight | 8kg | |||
Apparatus to be equipped
| digital viscosity meter | 1 pce | ascending and falling rack | 1 set |
| standard spindle | 1 set | power adapter | 1 pce |
| protective frame of spindle | 1 pce | spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
Options
- Extreme low viscometer adapter (with one spindle L0)
- Small sample adapter (with spindle 21, 27, 28 and 29 each)
- Spindle L5
- Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
- RTD temperature probe
- Specially used printer
