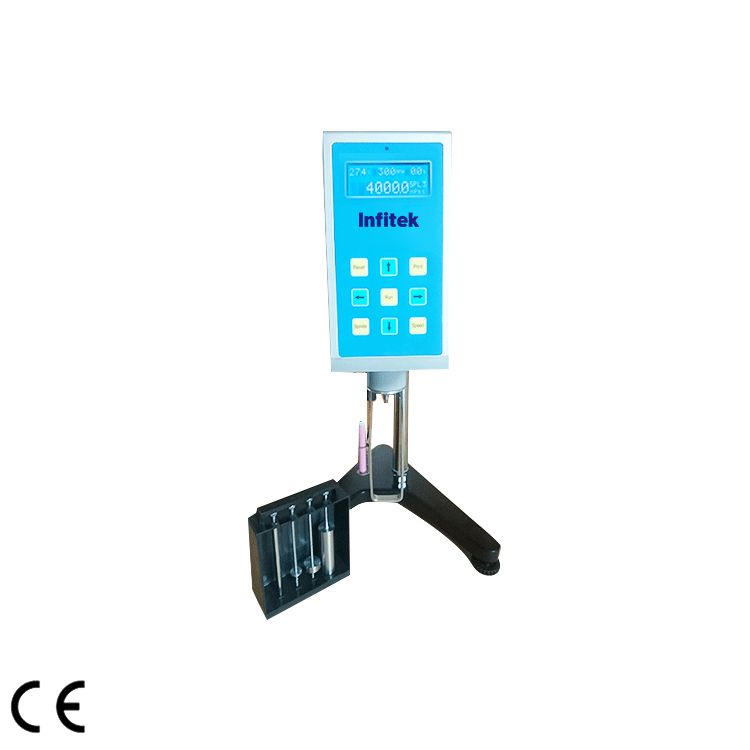

Digital Viscometer, VSC-S Series

  1. Measuring Range (mPa·s) : 12~80,000,000
  2. Rotating Speed (RPM): 0.1~200(Stepless Gear)
  3. Number of spindle: 4
  4. Accuracy: ±1% full scale range in use
  5. Repeatability: ±0.5% full scale range in use

Share the product



1. Wider measuring range
2. Rotation speed is selected as full-range stepless speed change,
3. The RTD temperature probe can monitor and measure the temperature of the sample in real time
4. A number of mathematical statistical analysis tasks such as fully automated data collection, data storage and historical data comparison can be carried out through the optional software

Optional-matching-Thermostatic-baths Optional matching Thermostatic baths


Refrigerant, environmentally friendly R134a
Packing weight: 28kg
Size: 586*485*495mm


Packing weight: 20.5kg
Size: 586*485*495mm


Measuring Range(mPa·s) 20~600,000 12~6,000,000 160~80,000,000 50~10,000,000
Rotating Speed(RPM) 1~60(Stepless Gear) 0.1~99.9(Stepless Gear) 0.1~99.9(Stepless Gear) 0.1~200(Stepless Gear)
Number of Spindles Spindles (Code L1, L2, L3, L4) are equipped with the product Spindles (Code 21, 27, 28, 29) are equipped with the product
Accuracy ±1% full scale range in use
Repeatability ±0.5% full scale range in use
Readability 1. when viscosity is lower than 10.0 cp: 0.01
2. when viscosity is lower than 10000 cp: 0.1
3. when viscosity is equal or higher than 10000 cp: 1
Power Power adapter (input: 100-240V,50/60Hz)
LCD screen display The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.
Pakage size(mm) 400*350*360 400*350*550
Weight(kg) 8kg 10.5kg

Apparatus to be equipped

digital viscosity meter 1 pce ascending and falling rack 1 set
standard spindle 1 set power adapter 1 pce
protective frame of spindle 1 pce spanner 1 pce
Seat and leveling feet 1 set RS232 standard output interface 1 pce
RTD temperature probe 1 pce


  • Extreme low viscometer adapter (with one spindle L0)
  • Small sample adapter (with spindle 21, 27, 28 and 29 each)
  • Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
  • Spindle L5
  • Special software that can complete the function in collecting the data automatically
  • Specially used printer
