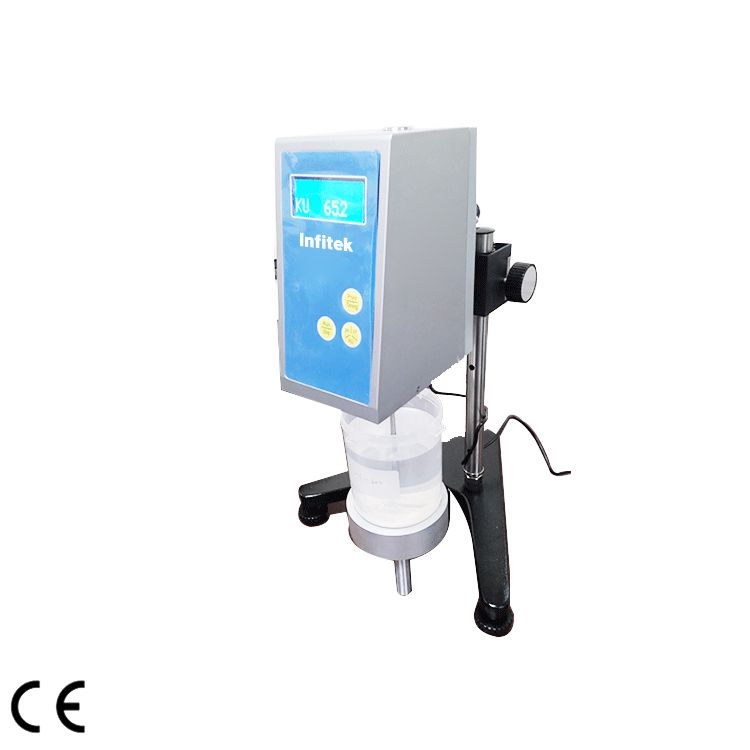

Digital Viscometer, VSC-KU

  1. Measuring Range (mPa·s) :40~141  KU/32~1,099gm/27~5,274cP
  2. Rotating Speed (RPM): 200
  3. Number of spindle: Special spindle
  4. Accuracy: ±1% full scale range in use
  5. Repeatability: ±0.5% full scale range in use

Share the product



VSC-KU stormer viscometer is a test instrument dedicated to measuring fluid viscosity with the unit of Krebs (KU value), such as the paint, coating etc. Through the function key, circulating in the blue backlight LCD screen display Krebs unit (KU), gram unit (gm) and the CPS (cP) as the unit of viscosity.

The instrument adopts core control circuit with 16 bit microprocessor,the spindle speed is 200RPM, The measured resistance moment in fluid has been converted to KU value and directly displayed on the screen, We can convert KU, gm, and cP according to the ASTM D562 industrial standard.​

Optional-matching-Thermostatic-baths Optional matching Thermostatic baths


Refrigerant, environmentally friendly R134a
Packing weight: 28kg
Size: 586*485*495mm


Packing weight: 20.5kg
Size: 586*485*495mm


Measuring Range 40~141  KU
32~1,099  gm
27~5,274  cP *
Number of Spindles Special spindle
Accuracy ±1% full scale range in use
Repeatability ±0.5% full scale range in use
Rotating Speed 200 RPM
Power Power adapter (input: 100-240V,50/60Hz)
Size(mm) 400*350*360
Weight(kg) 8kg

* cP value is for reference only, not for checking.

Apparatus to be equipped

digital viscosity meter 1 pce
ascending and falling rack 1 set
power adapter 1 pce
spanner 1 pce
seat and leveling feet 1 set
special spindle 1 pce
viscometer operation manual 1 set

Spare optional

Specially used printer

RTD temperature probe (Temp range: 0℃~100℃, ±0.1℃)
