- Observer Angle:2°/10°
- Measuring Aperture:φ11mm
- Wavelength Interval:10nm
- Wavelength Range:400-700nm
- 8-inch color screen

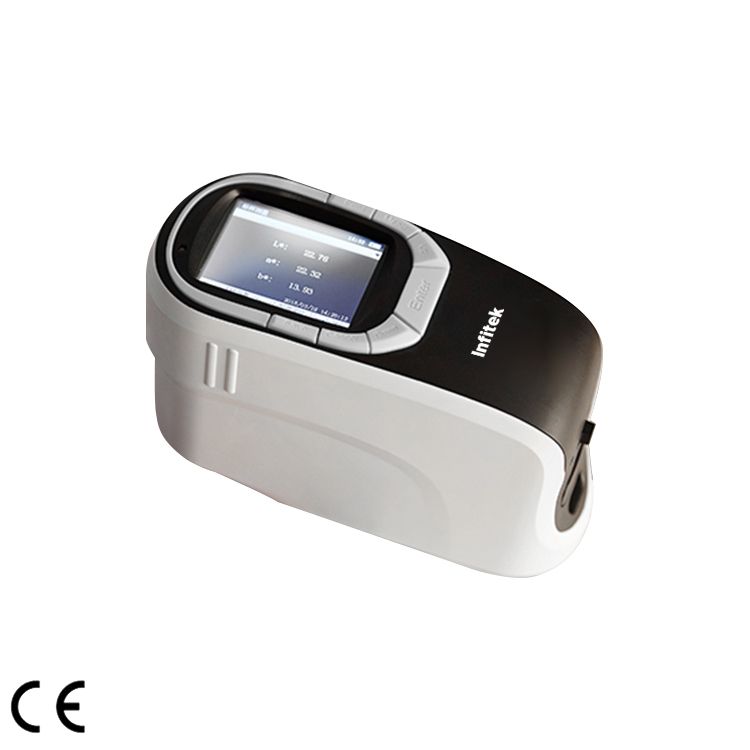

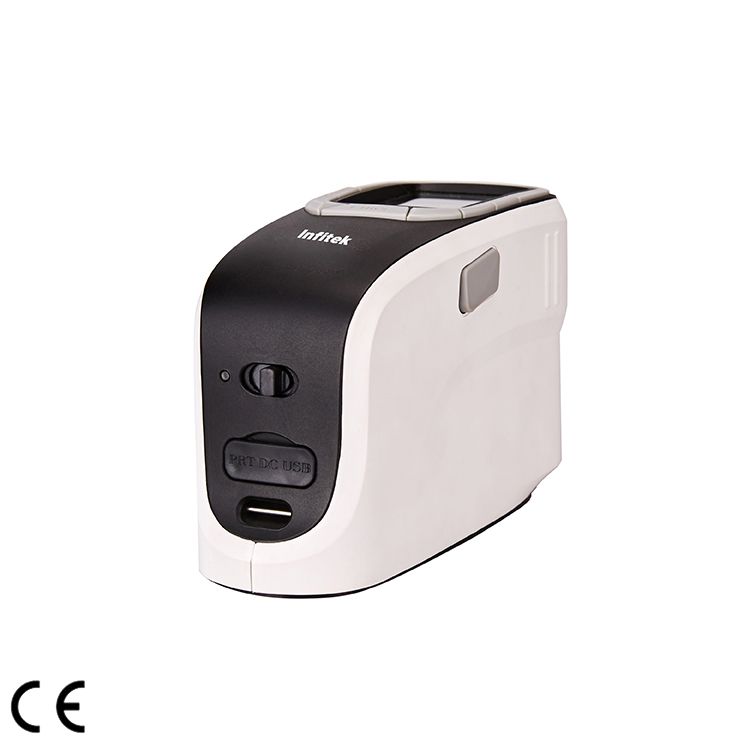

Grating Portable Spectrophotometer, SP-CLR600C
Description
It is suitable for the color and gloss measurement of automotive interior parts, textiles, coil coatings, plastic products, road traffic representations, packaging and raw materials.
Features
1.Adopts 45/0 geometry (45 ring-shaped illumination, 0° viewing)
The innovative ring-shaped illumination system eliminates the direction dependence, regardless of changing the sample position; The tilt sample or the rotating instrument can achieve the high accuracy and the repeatability, will reduce the influence which the grain brings to the lowest.
The measurement on the surface of abrasive, textured and structured materials has brought great advantages.
2.Color QC software
Our spectrophotometer comes with free PC color QC software, which is applicable in various industries for management of color value.
It is used for store test result, generate test report and print test report after connect with printer.
3.Small and compact size, accurate and reliable measurement
SP-CLR600C spectrophotometer is a portable 45/0 geometry color measuring instrument;45/0 geometry is the most consistent with the visual perceptual color value, which can eliminate the specular light on the surface of the texture.
Specifications
| Model | SP-CLR600C |
| Optical Geometry | 45/0(45 ring-shaped illumination,0 observe degree) |
| Measuring Aperture | φ11mm |
| Light Source | LED |
| Sensor | High sensitivity silicon photodiode |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Repeatability | Light splitting reflectivity：standard deviation within 0.08% |
| Color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),
Maximum：0.05 |
|
| Inter-Instrument Error | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Observer Angle | 2°/ 10° |
| Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35 |
| Color Space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Hunterlab,Munsell MI,CMYK,RGB,HSB |
| Other Colorimetric Index | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz)
Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density |
| Color Difference | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sort |
| Illuminant Life Span | 3 million measurements in 10 years |
| Data Storage | 20000 test results |
| Interface | USB |
| Screen | 2.8-inch color screen |
| Battery | Rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Operating Environment | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Standard Accessory | AC adapter, lithium battery, manual, color management software, driver software, manual electronic version, color Management tutorial, data cable, black and white correction tube, portable bag |
| Optional Accessory | Measurement area locator |
| Dimension(L*W*H)) | 181*73*112mm |
| Net Weight | About 0.8kg(excluding battery’s weight) |
