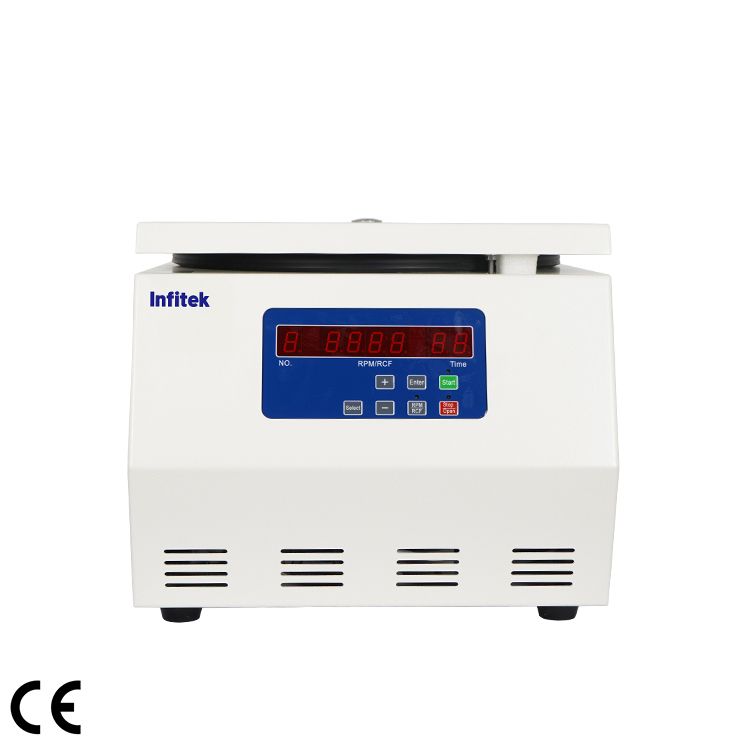

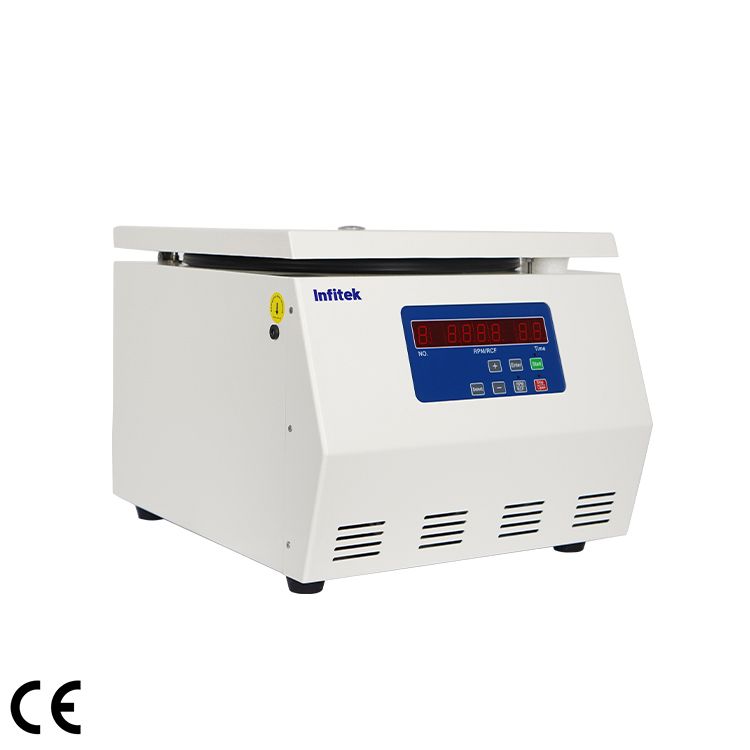

Low Speed Centrifuge, Benchtop, CFG-5DK

  • Microcomputer control
  • With touching pad and visual digital display
  • Various safety protections
  • Powerful vibration absorbers
  • Durability and easy cleaning

Share the product




The series of centrifuges has new separation technology based on the state of different particles in a centrifugal atmosphere. They are applied for testing and research in the fields of biochemistry, clinical, hospitals and so on.


  • Driving: Drived by maintenance-free brushless DC motor with high torque. It offers fast acceleration and dynamic brake and the powerful vibration absorbers make the motor run more steady
  • Display: Controlled by microcomputer with touching pad and visual digital display. The last program is stored automatically and RCF can be directly set.
  • Body Structure: Premium steel housing for safety and reliability; stainless steel chamber for durability and easy cleaning.
  • Safety Protection: It contains various safety protections including lid locking and holding during rotor on, over speed, unbalance. The electrical lid lock ensures its safety and reliability during running.
  • Control: Control of speed and time. Direct set for speed and time is user-friendly.



Model CFG-5DK
Max. Speed 5500 r/min
Max. RCF 5310×g
Max.Capacity 4×500ml
Speed Accuracy ±30r/min
Time Range 0~99min
Sound Emission ≤58dB
Motor Brushless DC motor and microcomputer controlled
Electricity AC 220V  50Hz  15A
Dimension (W×D×H) 460*590*420mm
Weight 45Kg

Rotors & Tubes

Rotor No. Max Capacity Max Speed Max RCF. Tube Size
No.52 Swing Rotor 2×2×96 wells 4000r/min 2380×g Microtitre-plate
No.56 Swing Rotor 4×50/100ml 5500r/min 5310×g Φ38×124
No.57 Swing Rotor 32×10/15ml 4000r/min 2810×g Φ16×85-118
No.57 Swing Rotor 32×10/15ml (with windshield) 4000r/min 2810×g Φ16×85-118
No.61 Swing Rotor 4×250/8×50/36×10ml 4000r/min 3500×g Φ64×113
No.62 Swing Rotor 4×500/12×50/8×100ml 4000r/min 3580×g Φ80×140
No.69 Swing Rotor 48/40×5ml 4000r/min 2800×g Φ14×54
No.76 Swing Rotor 72×5ml 4000r/min 2830×g Φ14×54
No.77 Swing Rotor 8×50/100ml 4000r/min 2810×g Φ25×105-115
No.77 Swing Rotor 8×50/100ml 4000r/min 2810×g Φ25×105-115
