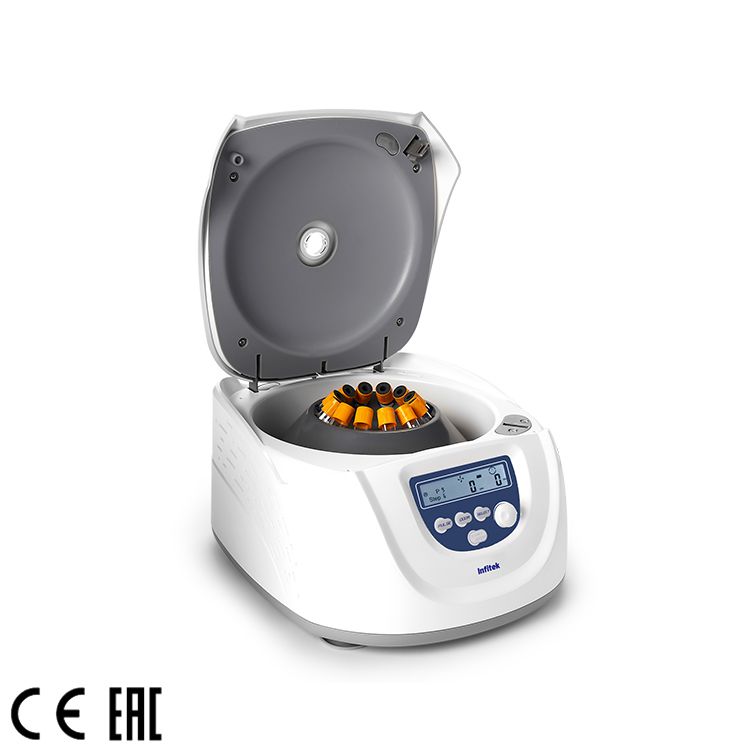

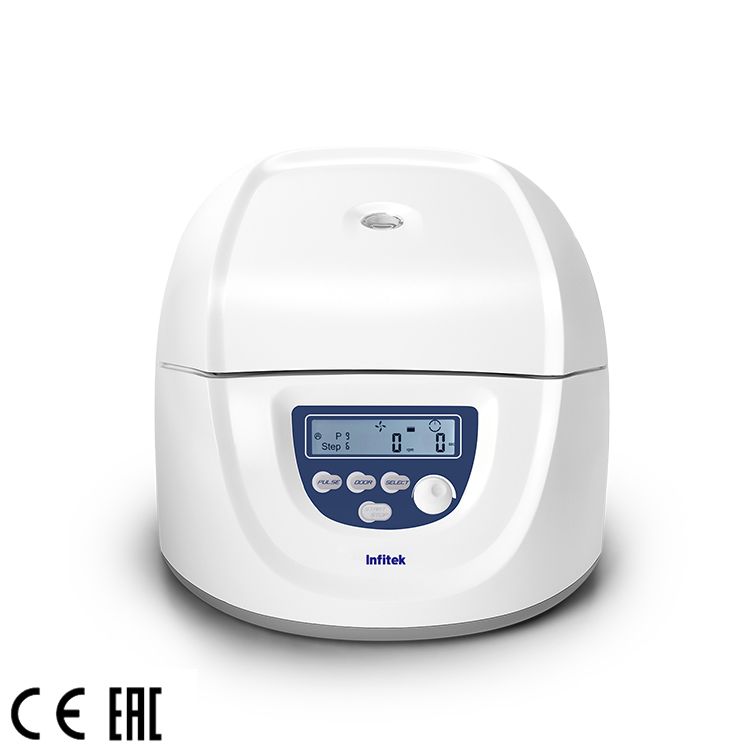

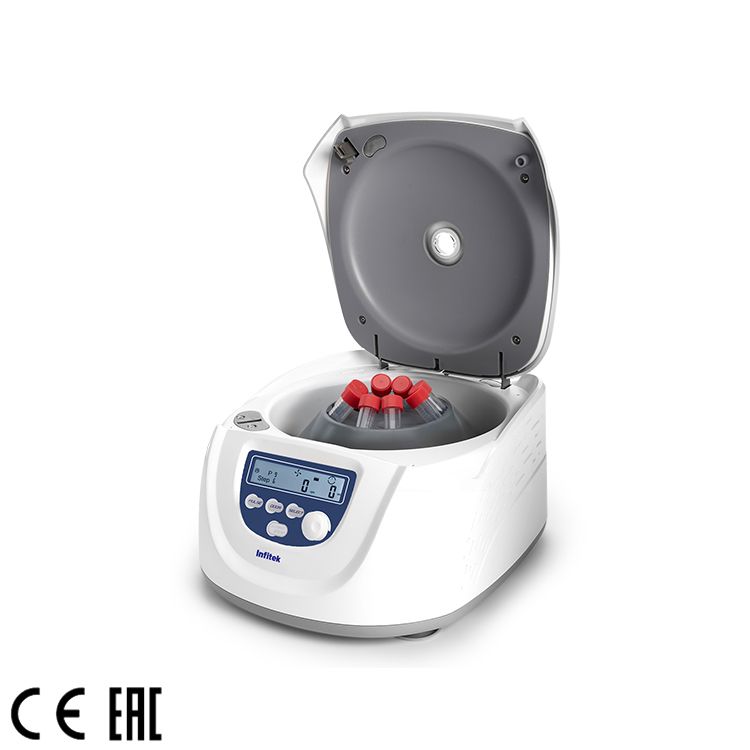

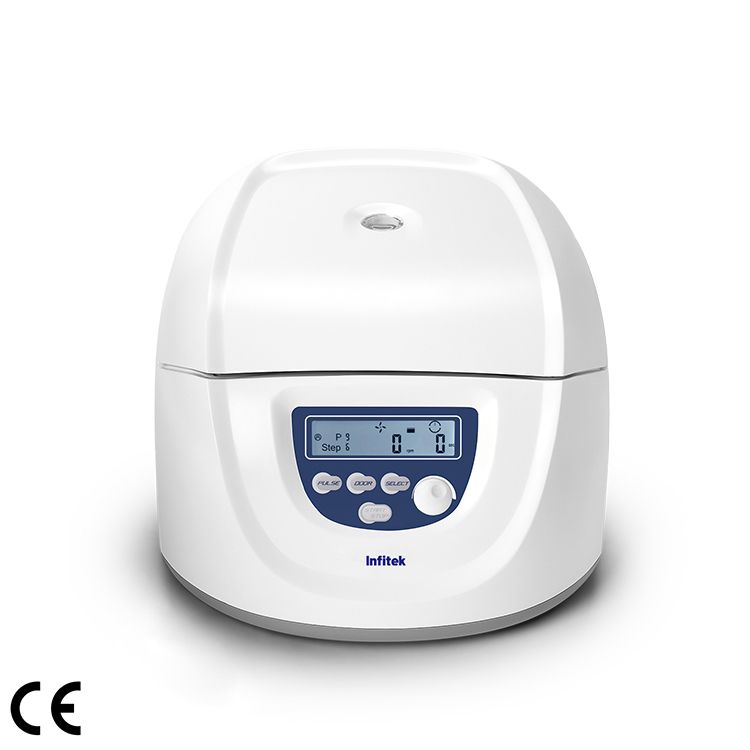

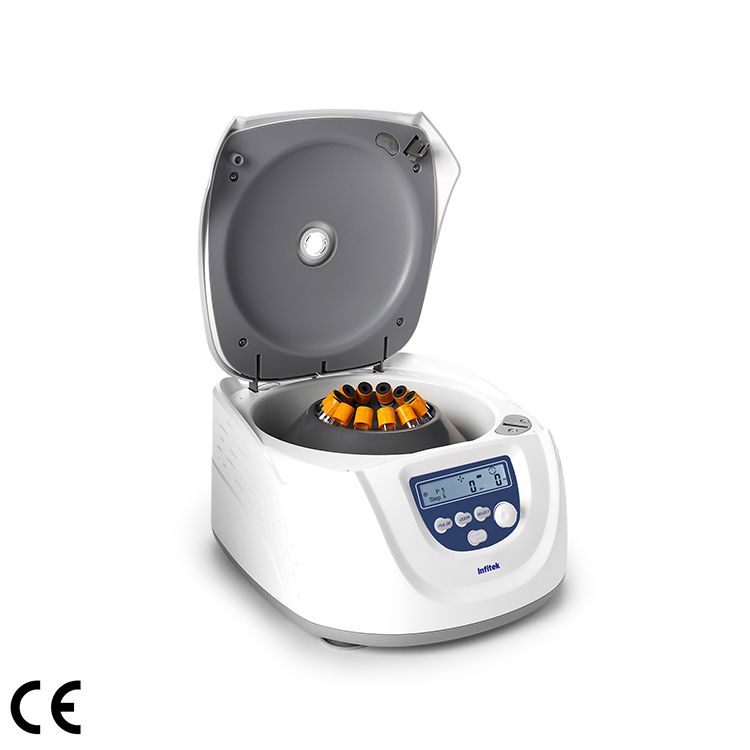

Clinical Centrifuge, PRP, CFG-4.5D(PRP)

  • Max Speed/RCF: 4500rpm/2490xg
  • Rotor capacity: 8x15ml, 12x10mL/7mL/5mL

Share the product


  1. Max speed:4500rpm;
  2. Rotor speed can be set in RPM/RCF;
  3. 3 pre-loaded programs for fast operation;
  4. 9 programs for customization can be stored in memory;
  5. Powerful CPU for easy operation of speed, time and all other parameters;
  6. Easy-to-read processing display and sound alert;
  7. Automatic lid-lock release after running;
  8. Passed the explosion-proof test / MCA test according to IEC/EN61010-2-20;
  9. Passed EN61010-2-101: 2 0 0 2 particular requirements for In-Vitro diagnostic (IVD) medical equipment;
  10. Maintenance-free brush-less DC motor.


Specifications CFG-4.5D(PRP)
Speed Range 300-4500rpm, increment:10rpm
Max. RCF 2490xg, increment: 10g
Speed accuracy ±10rpm
Rotor capacity 8x15ml,12x10mL/7mL/5mL
Run Time 30sec-99min
Motor Brushless DC motor
Display LCD
Preloaded Program PRP:3480rpm, 5mins,
PRF:2690rpm, 7mins,
CGF: Step1 2700rpm 2mins,
Step2 2400rpm 4mins
Step3 2700rpm 4mins,
Step4 3000rpm 3mins,
Custom Programs Memory 9 programs (6 steps for each program)
Safety Devices Door interlock, Overspeed detector, Automatic internal diagnosis
Noise ≤56dB
Power Single-phase, 100V-240V,50Hz/60Hz, 3A,70W
Dimension[W×D×H] 301X354X217mm
Weight 6kg
Advanced features Speed/RCF switch; sound-alert function
