- Speed: 5000rpm
- RCF: 4730×g
- Capacity: 4×800ml Swing rotor

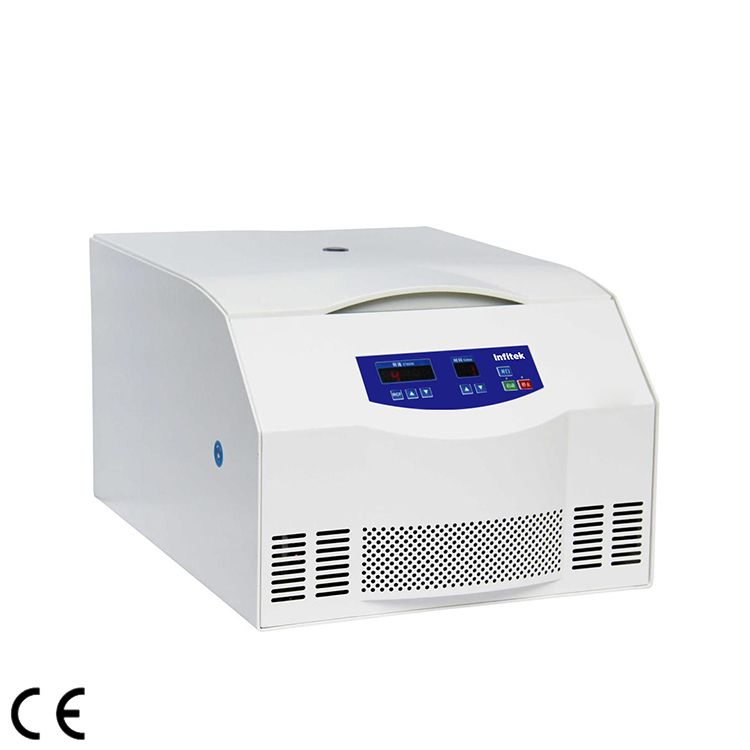

Low Speed Centrifuge, CFG-5BY
Description
Application
It is mainly used in laboratories of biology, medicine, chemistry, physics, etc. It is an ideal instrument for the analysis of serum, plasma, urine, radioimmunoassay, etc.
Features
- Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
- Induction automatic electric suction door lock, with emergency door opening device; self-inspection and protection of door lock, over-speed, unbalance, etc., safe and reliable.
- Using a microcomputer processor for precise control, eye-catching red digital LED display, key programming, and parameter modification during operation.
- Using a unique spring cone sleeve to connect the rotating head and spindle, the rotating head is locked 360°, and the loading and unloading of the rotating head is non-directional, fast and simple.
- Aero forged aluminum rotors (except multi-tube frame rotors) and various Teflon adapters are available.
- 10 acceleration rates and 10 deceleration rates for users to choose to achieve the best centrifugal effect.
- The whole machine is all-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
- The instrument door cover is equipped with a hydraulic rod to reduce operating load.
Specifications
| Model | CFG-5BY |
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×800ml Swing rotor |
| Timer | 1s～99min |
| Speed Accuracy | ±10rpm |
| Sound Emission | ≤65dBA |
| Electricity | AC 110V/220V, 50/60Hz |
| External Dimension | 680*500*385mm |
| N.W./G.W. | 67kg/90kg |
| Package Dimension | 880*580*560mm |
Matched Rotors
| Rotor No. | Rotor Type | Max. Speed | Max. Capacity | Max. RCF | Notes |
| No. 05254 | Swing Rotor | 4000rpm | 4×25×5/7ml | 3360×g | For 2-7ml vacuum tube |
| No. 05207 | Swing Rotor | 4000rpm | 4×800ml(round) | 3450×g | Optional biosafety cover |
| Adapter | 4×500ml(falcon) | 500ml falcon | |||
| Adapter | 4×250ml(falcon) | 250ml falcon | |||
| Adapter | 4×24×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×19×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×14×10/15ml | For 10/15ml tube | |||
| Adapter | 4×5×50ml | For 50ml tube | |||
| No. 05608 | Swing Rotor | 4000rpm | 4×500ml(round) | 3530×g | Optional biosafety cover |
| Adapter | 4×18×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×14×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×9×10/15ml | For 10/15ml tube | |||
| Adapter | 4×3×50ml | For 50ml tube | |||
| No. 05609 | Swing Rotor | 4000rpm | 4×500ml(rectangle) | 3450×g | Optional biosafety cover |
| Adapter | 4×20×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×16×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×12×10/15ml | For 10/15ml tube | |||
| Adapter | 4×5×50ml | For 50ml tube | |||
| No. 05611 | Swing Rotor | 4000rpm | 4×4×96 well | 2940×g | Optional |
| No. 05610 | 4×7×50ml | 3470×g | For 50ml falcon tube | ||
| No. 05213 | Swing Rotor | 4000rpm | 2×5×96 well | 3210×g | Optional |
| No. 05629 | Swing Rotor | 5000rpm | 4×1×50ml | 4730×g | Optional |
| No. 05630 | 4×1×100ml | 4730×g | Optional | ||
| No. 05635 |
4000rpm |
4×2×100ml | 3200×g | Optional | |
| No. 05634 | 4×2×50ml | 3200×g | Optional | ||
| No. 05631 | 4×8×15ml | 3200×g | For 5-15ml tube | ||
| No. 05639 | 4×16×5ml vacuum tube | 2530×g | For 2ml vacuum tube | ||
| No. 05638 | 4×16×7ml vacuum tube | 2890×g | For 5ml vacuum tube | ||
| No. 05640 | 4×12×10ml vacuum tube | 2880×g | For 10ml vacuum tube | ||
| No. 05614 | Swing Rotor | 4000rpm | 4×30×7ml vacuum tube | 3160×g | For 5ml vacuum tube |
| No. 05615 | 4×40×7ml vacuum tube | 3270×g | For 5ml vacuum tube | ||
| No. 05618 | 4×28×10m vacuum tube | 3270×g | For 10ml vacuum tube | ||
| No. 05237 | Swing Rotor | 4000rpm | 4×Pasteur milk bottle | 3830×g | Pasteur milk bottle |
| No. 05183 | Angle Rotor | 2000rpm | 16×Gabor milk fat meter | 896×g | For Gabor milk fat meter |
| No. 05141 | Angle Rotor | 5000rpm | 30×15ml | 3830×g | Optional |
| No. 05144 | Angle Rotor | 5000rpm | 12×50ml | 3860×g | Optional |
| No. 05145 | Angle Rotor | 4000rpm | 24×50ml | 2970×g | Optional |
| No. 05147 | Angle Rotor | 5000rpm | 6×100ml | 3130×g | Optional |
| No. 05148 | Angle Rotor | 4000rpm | 12×100ml | 2970×g | Optional |
