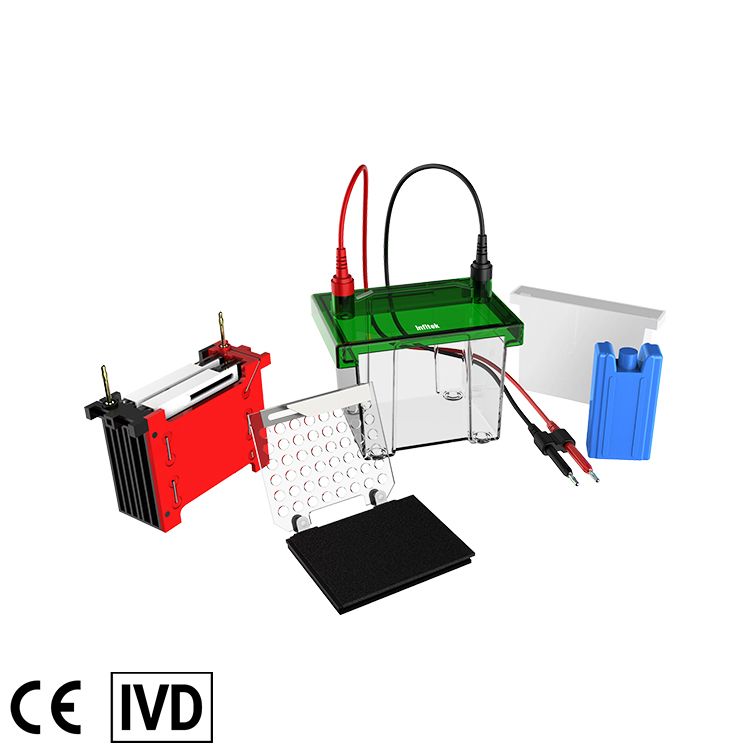

Mini Transfer Electrophoresis Tank, GEP-TH-ZY02

  • Transfer gel area: 11cm*9cm
  • Heat generated by swimming
  • Used with VH-1 or VH-4
  • 99.99% high purity platinum electrode

Share the product



  • The positive electrodes gather together for 4cm, generating a strong electric field to carry out effectively.
  • Protein transfer printing, built-in ice box, blue crystal ice box is optional, which can quickly absorb electricity.
  • Heat generated by swimming.
  • Used with VH-1 or VH-4
  • High-flexibility wire, open cover and power-off design to ensure safety;
  • The electrode can be replaced for easy maintenance;
  • 99.99% high purity platinum electrode has the best conductivity and corrosion resistance.


Basic parameters:
Overall dimensions (l*w*d) 150 * 120 * 130mm
Transfer gel area (l* w) 11cm× 9cm
Total buffer capacity about 700ml


Name Quantity
Electrophoresis tank (upper cover) 1pc.
Electrophoresis tank (lower tank) 1pc.
Transfer core 1pc.
Transfer clamp 2pcs.
Blue ice box 1pc.
