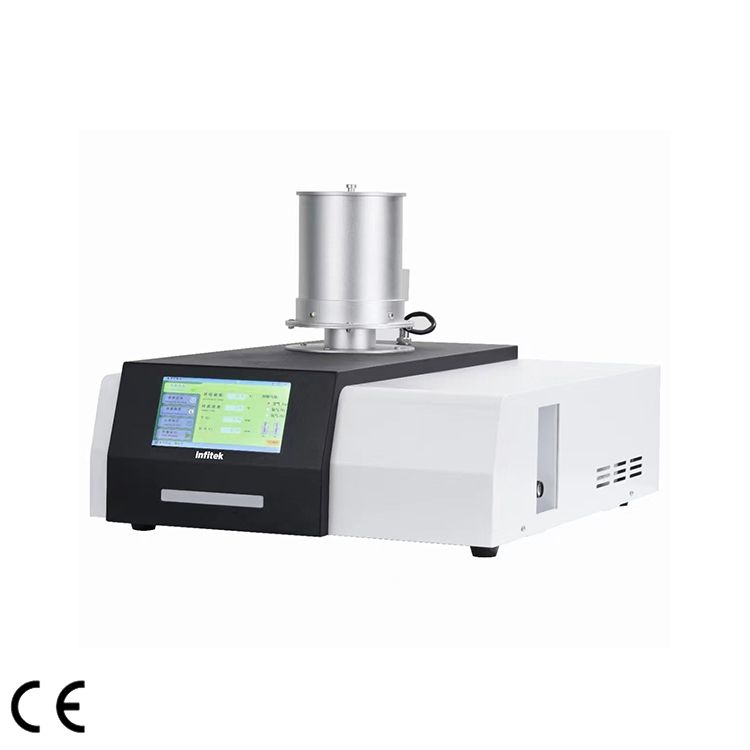

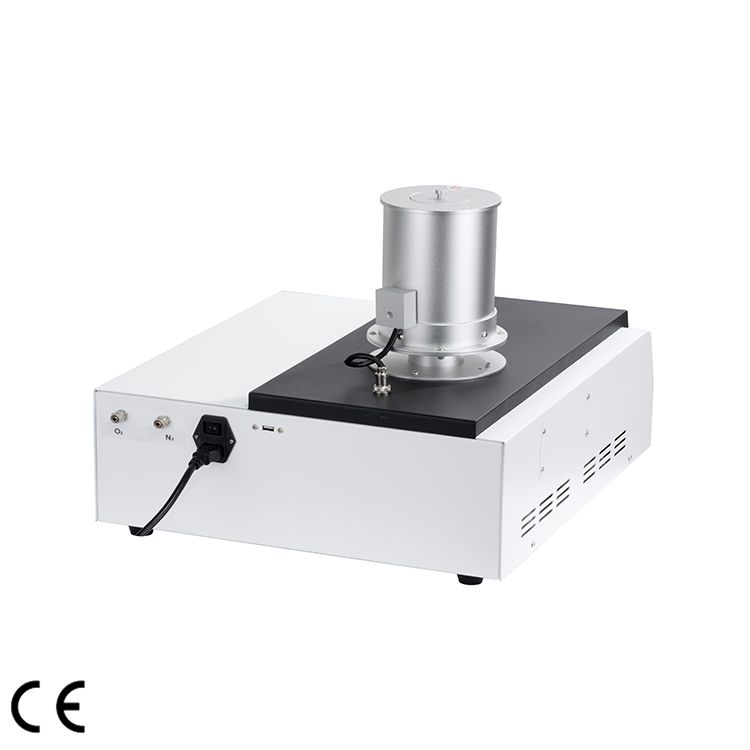

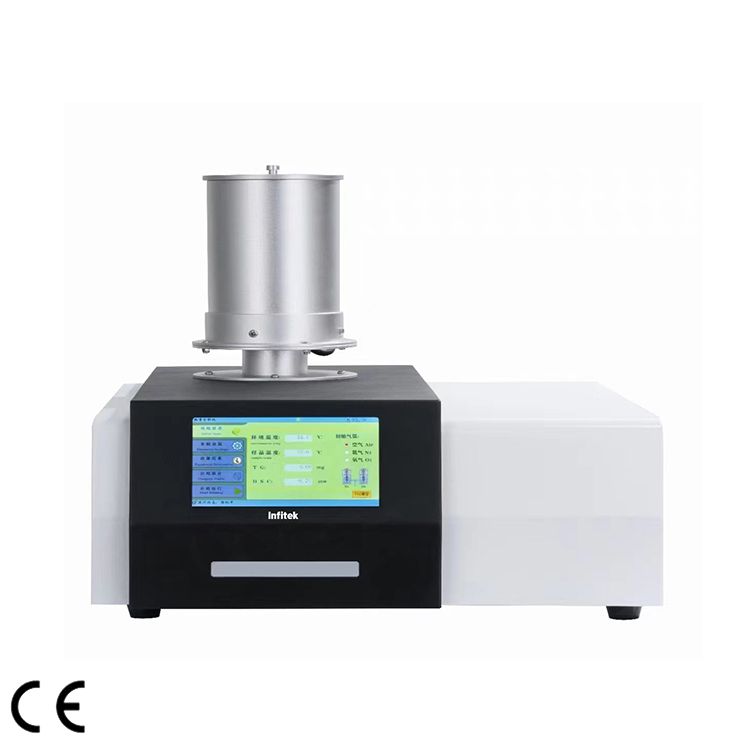

Thermogravimetric Analyzer, TGA-1550

  • Temperature Range:~1550℃
  • Heating Rate:1~100℃/min
  • Balance Measuring Range:01mg ~ 3g, which can be extended to 50g

Share the product


It is widely used in research and development, process optimization and quality control in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.


  • Structural advantages
  1. The heating of the furnace body is made of custom-made nickel-chromium wire double-row winding, which reduces interference and is more resistant to high temperature.
  2. Tray sensor, made of alloy wire, has the advantages of high temperature resistance, oxidation resistance, corrosion resistance, etc.
  3. The power supply and circulation cooling part are separated from the host to reduce the influence of heat and vibration on the micro-thermal balance.
  4. The upper-opening structure is adopted, which is easy to operate.
  5. The hostadopts water thermostatic device to isolate the thermal influence of the heating furnace body on the chassis and microthermal balance.
  6. The furnace body can be replaced according to customer requirements.
  • Controller, software advantages
  1. Adopts imported ARM processor, faster sampling speed, processing speed.
  2. The four-way sampling AD collects TG signal and temperature T signal.
  3. Heating control, using PID algorithm, precise control.Can be multi-stage heating, constant temperature.
  4. Two-way USB communication is adopted between the software and the instrument to fully realize remote operation, and the parameter setting of the instrument and the operation and stop of the instrument can be performed through the computer software.
  5. 7-inch full-color 24bit touch screen, better man-machine interface. TG calibration can be realized on the touch screen


Model TGA-1550
Temperature Range RT.~1550℃
Temperature Resolution 0.01℃
Temperature Fluctuation ±0.1℃
Heating Rate 0.1~100℃/min
Temperature Control Mode PID control, heating, constant temperature and cooling
Program Control Program setting multi-stage temperature rise and constant temperature, and five sections can be set at the same time
Balance Measuring Range 0.01mg ~ 3g, which can be extended to 50g
Precision 0.01mg
Constant Temperature Time Program control, 0-300min, which can be extended to 72h
Resolution 0.1μg
Display LCD display
Atmosphere Device Built-in gas flow meter, including two-way gas switching and flow control
Software Intelligent software can automatically record TG curve for data processing, TG / DTG, mass, percentage coordinates can be arbitrarily switched;Software with automatic adjustment function, according to the map display, automatic extension, scaling
Gas Path Can be set with multi-stage automatic switching without manual adjustment.
Data Interface Standard USB interface, special software (software upgrade for free from time to time)
Electricity AC220 V, 50 Hz
Curve Scanning Heating scanning and cooling scanning
Test Map Five test maps can be opened at the same time for comparative analysis
Cooling Time ≤15min,1000℃~RT.;Air cooled cooling device is selected to reduce temperature quickly and improve test efficiency
Crucible Type Ceramic crucible, aluminum crucible
Crucible Dimension 5*5mm;7.5*7.5mm
External Dimension 531*463.5*416mm
N.W./G.W. 26kg/39kg
Shipping Dimension 730*600*480mm
