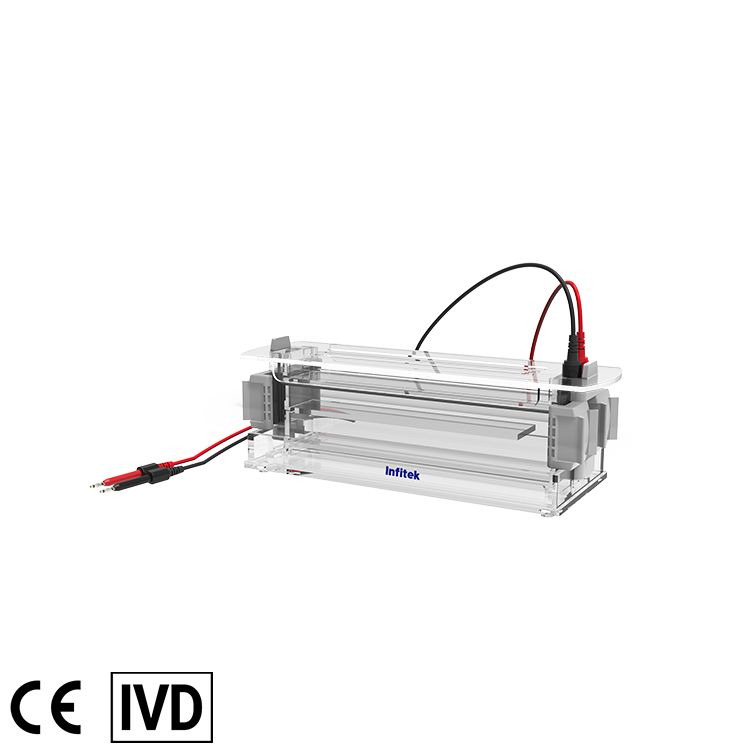

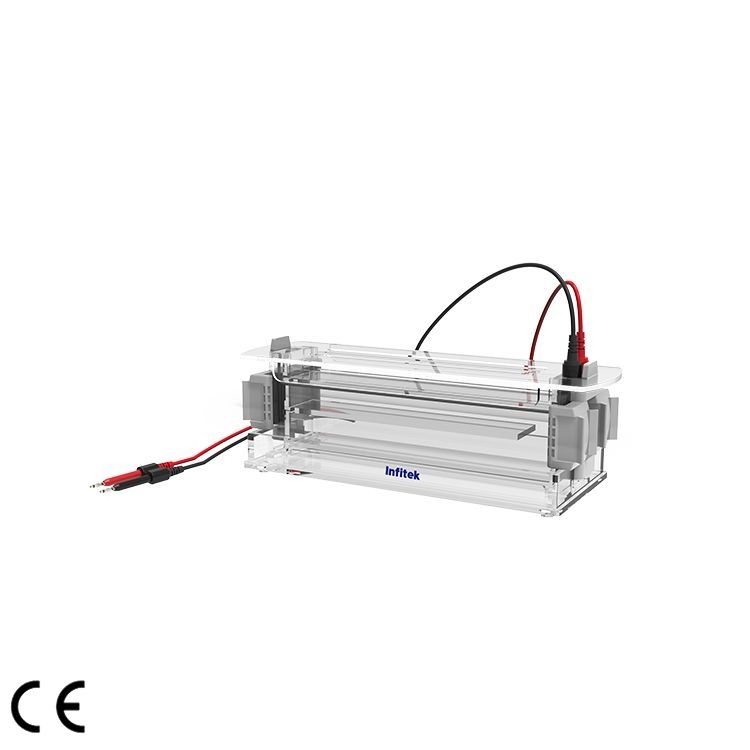

Vertical Electrophoresis Cell, GEP-VH-SCZ04A

  1. Main body groove (main body):1
  2. Concave glass plate:2
  3. Flat glass plate:2

Share the product


Application: This product is specially designed for the molecular labeling of large quantities of samples through SSR or RAPD from the DNA level.
It is particularly suitable for genetics, breeding, seed purity testing and authenticity identification.


Large amount of samples tested;
A double-plate electrophoresis tank, the maximum number of samples added is 200;
If the HT-600D high-current power supply is used, one power supply can supply power for 4 electrophoresis tanks at the same time, which can meet the needs of large-scale testing and greatly reduce the purchase cost of the instrument.
It can be connected to the cooling circulating water, and the electrophoresis temperature is constant.
Three sets of platinum electrodes provide a stable electric field.
99.99% high-purity platinum electrode, the best electrical conductivity, corrosion and aging resistance.


Basic parameters
External size(L×W×D) 350*130*110/160/220
Gel area(W×L) SCZ04A:300mm*85mm
Sampling comb 102、68(Optional)
Gel thickness 1mm
Total buffer capacity about 800 ml.


Name Specification Quantity
Main body groove (main body) 1
Concave glass plate 2
Flat glass plate 2
Sampling comb 102 teeth 2
68 teeth 2
Air bubble hook 2
Drainpipe 2
Wire 1
