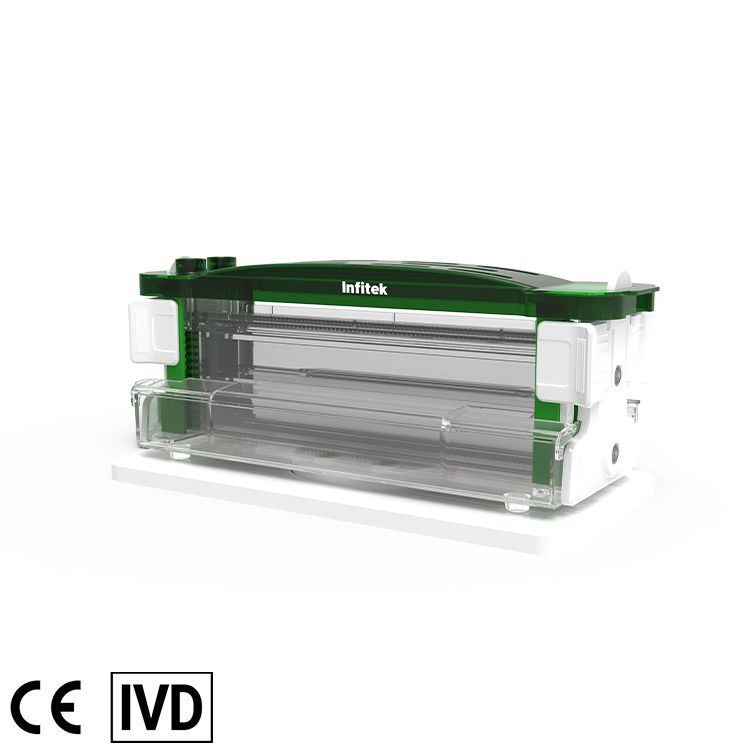

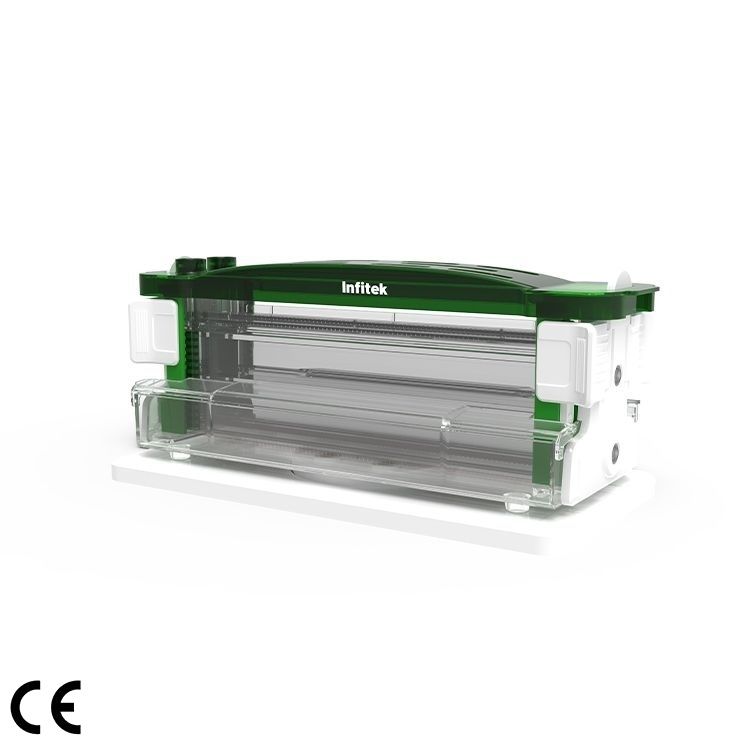

Vertical Electrophoresis Cell, GEP-VH-SCZ04B

  1. Main body groove (main body): 1
  2. Rotating tray: 1
  3. Concave glass plate: 2

Share the product


Application: This product is suitable for rapid SSR experiments of molecular labeling and other high-throughput protein electrophoresis.


Polycarbonate is injection molded at one time, with high transparency, strength and impact resistance.
The sample volume is large, and 200 samples can be tested by electrophoresis at a time.
Patented glass clamp and supporting structure, which is more convenient for the glue filling operation, and can be directly assembled on the electrophoresis tank without removing the glass clamp.
The new type of fastening device makes it easier and faster to attach the gel glass plate to the electrophoresis tank. The color design of the upper tank makes it easier to observe the sample hole during sample loading and avoid loading the wrong sample.
The protective cover of the platinum electrode can effectively prevent the platinum wire from being damaged.
The patented 360°rotating positioning device eliminates the need to move the electrophoresis tank when loading samples. The upper and lower tanks are equipped with transparent safety covers, and the upper tank safety covers are equipped with heat dissipation holes. It can be connected to the cooling circulating water, and the temperature is constant.
Choose the matching HT04 gel viewing instrument,It can take pictures of 2 gels at the same time and save the gel images to the computer.
99.99% high-purity platinum electrode, the best electrical conductivity, corrosion and aging resistance.


Basic parameters
External size (L×W×D) 350*140*150
Gel area(W×L) 300mm*105mm
Sample throughput  102, 68 (optional)
Total buffer capacity  about 800 ml.
Glue filling method  default horizontal glue filling


Name Specification Quantity
Main body groove (main body) 1
Rotating tray 1
Concave glass plate 2
Flat glass plate 2
Sampling comb 102 teeth 2
68 teeth 2
Air bubble hook 2
Drainpipe 2
Glass clamp . 2
Wire 1
