- High-resolution medical display
- Superior image clarity
- Abundant measurement packages
- Relies on the realistic RealSkin 5D ultrasound technology

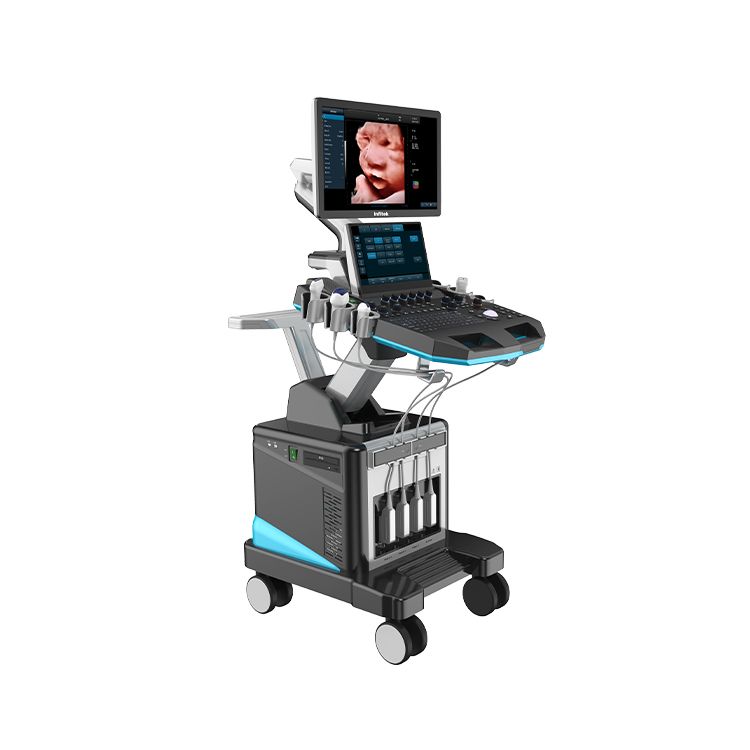

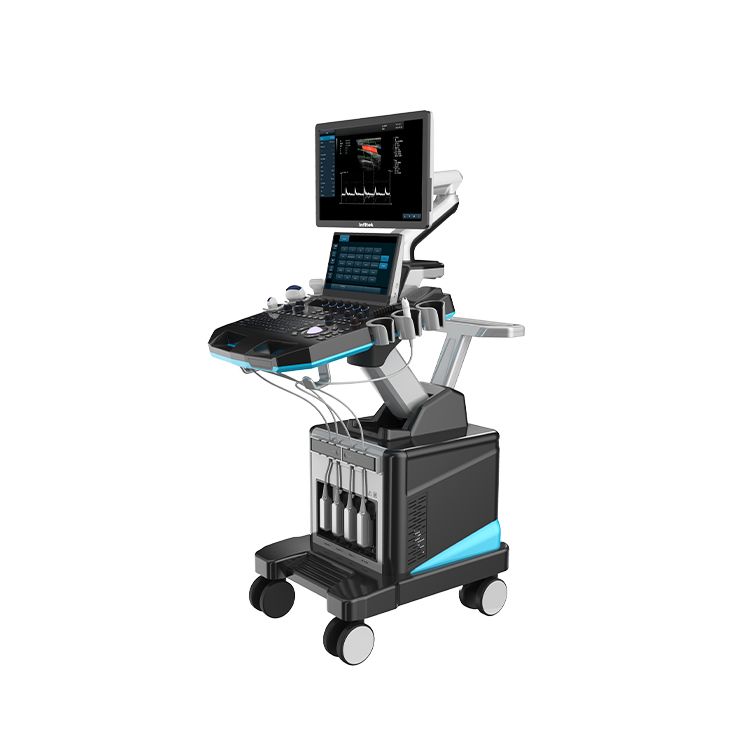

Color Doppler Ultrasound Machine, Trolley-type, US-C50D
Description
US-C50D is equipped with a high-resolution medical display, adopts multi-beam parallel technology and sub-array element transducers, and its superior image clarity perfectly meets the needs of women’s health care. At the same time, it relies on the realistic RealSkin 5D ultrasound technology and abundant measurement packages to better protect women’s health.
Advantages
- Expandable
Four fully activated probe interfaces. USB image storage export. Can connect external monitor and printer.
- Efficient
Built-in file information management system can record the number, name, check number, check date, and so on, and can search through the number, check number, name and so on.
The diagnostic report can be edited, ultrasound diagnostic image can be embedded in the report, and directly printed.
- Simple
Integral small keyboard, easy to operate.
Probe storage tank free combination.
- Superior
Main screen is 21.5-inch and auxiliary screen is 13.3-inch medical ultrasonic touch screen, to meet the needs of doctors from different angles.
The full use of touch screen can reduce inaccurate operation caused by button contact and pressing, and minimize user fatigue.
Specifications
| 1 Main specifications and system overview: |
| 1.1 Operating system: Windows 8
1.2 Pulse Wave Doppler 1.3 Directional Energy Doppler 1.4 Real-time triple synchronization 1.5 Spatial Composite Imaging 1.6 Tissue Harmonic Imaging 1.7 2B/4B Imaging 1.8 Support system languages: Chinese, English, French, Russian, Spanish. 1.9 Standard monitor size: 21.5 inch, high-definition medical grade LCD display, and 13.3 inch touch screen 1.10 Integrated clipboard: display the saved images at the bottom of the screen, which can be directly transferred or deleted 1.11 With on-site upgradeable functions 1.12 Preset conditions: For different inspections, preset inspection conditions for optimized images, reducing adjustments during operation, and commonly required external adjustments and combined adjustments 1.13 Support real-time 3D imaging function (3D/4D/5D) 1.14 Probe ports: 4 active 1.15 Trapezoidal Imaging 1.16 One-key auto optimization 1.17 Gross weight: 130Kg 1.18 Package dimension: 102*72*154cm |
| 2 Multiple frequency of different probes: |
| 2.1 Convex probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, (depth 30-255mm)
2.2 Linear probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, (depth 20-128mm) 2.3 Trans-vaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (depth 30-156mm) 2.4 Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, (depth 100-244mm) 2.5 4D Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, (depth 30-237mm) 2.6 Micro convex probe (R15): 4.0MHz/6.0MHz/7.0MHz/8.0MHz/H8.0Mhz, (depth 30-111mm) |
| 3 2D mode |
| 3.1 Gain: 0－100, single step 1, visible andadjustable
3.2 TGC: 8 segmentadjustable 3.3 Dynamic range: 20-280dB, 20 levels visible and adjustable 3.4 Pseudo color: 12 kinds, visible andadjustable 3.5 Sound power: 5%－100%, single step 5%, visible andadjustable 3.6 Body mark: 6kinds 3.7 Number of focus: max6 3.8 Gray Scale: 0-7, visible andadjustable 3.9 Filtering:0-4 3.10 Scanning range: 50%-100% 3.11 Frame related: 0-4, visible andadjustable 3.12 Real-timedisplay of 14 parameters such as sound power, probe frequency, dynamic range, pseudo color, gray scale, etc., which are adjustable 3.13 Scanning line density: high, medium and lowadjustable 3.14 Noise reduction:0-14 3.15 Pseudo-color spectrum:0-11 3.16 Support frequency compound |
| 4 Color Imaging Mode |
| 4.1 Color deflection: available
4.2 Color frame related: 0-12 levels, visible andadjustable 4.3 Color map: 0-3 levels, visible and adjustable 4.4 Color flip:adjustable 4.5 B/C split screen synchronous display function:available 4.6 Color baseline: 11 levels, visible andadjustable 4.7 Color line density: high and lowadjustable 4.8 Wall filter: 0-5 level adjustable |
| 5 Pulse Wave Doppler Mode |
| 5.1 Sampling volume angle correction: -80°～80° adjustable
5.2 Sampling volume: 0.5mm-20mm visible andadjustable 5.3 Frequency: 2.5MHz and 3.0MHz visible andadjustable 5.4 Baseline: 11 levelsadjustable 5.5 Pseudo-color spectrum:0-5 5.6 Display layout: 4 kinds, visible andadjustable 5.7 Pseudo-color: 6 kindsadjustable 5.8 Speed scale: 3-2288cm/s 5.9 Spectrum envelope function: real-time automatic spectrum envelope, manual spectrum envelope andother modes are available, the system automatically analyzes and displays: PSV, EDV, RI, PI, S/D, ACC, HR and other data 5.10 Grayscale:0-7 5.11 Wall filter:0-12 5.12 Dynamic range: 10-95dB, single step5 5.13 Noise reduction:0-60 5.14 Volume: 0-100 |
| 6 Real time 3D Imaging Mode |
| 6.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D windowimage
6.2 Display layout: support “double frame”, “four frame”, “single frame” image display 6.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstruction modes 6.4 Pseudo-color display: support 0-7 leveladjustment 6.5 Image magnification: support 5levels 6.6 Contrast:0%-100% 6.7 Threshold:0%-100% 6.8 Smooth: 3 levels adjustable 6.9 Pseudo-color: 7 levelsadjustable 6.10 X-axis, Y-axis, and Z-axis rotation supportadjustable 6.11 Brightness: 0%-100% |
| 7 4D Imaging Mode |
| 7.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D windowimage
7.2 Display layout: support “double frame”, “four frame”, “single frame” image display 7.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax five reconstructionmodes 7.4 Pseudo-color display: 0-7 levelsadjustable 7.5 Image magnification: 5 levels 7.6 Contrast:0%-100% 7.7 Threshold:0%-100% 7.8 Smooth: 3 levels adjustable 7.9 Pseudo-color:7 levelsadjustable 7.10 X-axis, Y-axis, and Z-axis rotationadjustable 7.11 Line density: 2 levels adjustable |
| 8 Measurement and analysis functions: |
| 8.1 General measurement of distance, area, angle, time, slope, heart rate, speed, acceleration, neck transparent layer, spectrum trace, resistance index/pulsation index,
8.2 Obstetric measurement: weight measurement formula: 13 kinds foroption 8.3 The color and type of the measuring line can be adjusted(including the activation color and the completioncolor) 8.4 The display position and font size of the measurement results can beadjusted 8.5 Measurement packages: abdomen, obstetrics, urology, etc. |
| 9 Picture and text management system: Picture saving format: BMP/DICOM/JPEG as default |
| 9.1 Built-in 128GB solid-state hard drive in the main unit to start fast andstable
9.2 Cine loop: 600frames 9.3 Built-infile information management system: with record number, name, inspection number, inspection date, etc., and can search and manage by number, inspection number, name, 9.4 Report types: 17kinds 9.5 One-key quick report graphic management |
| 10 Interfaces |
| 4*USB ports, 1*Video, 1*S-Video, 1*DVI, 1*HDMI, 1*RJ-45 |
